02- Engine - Cooling

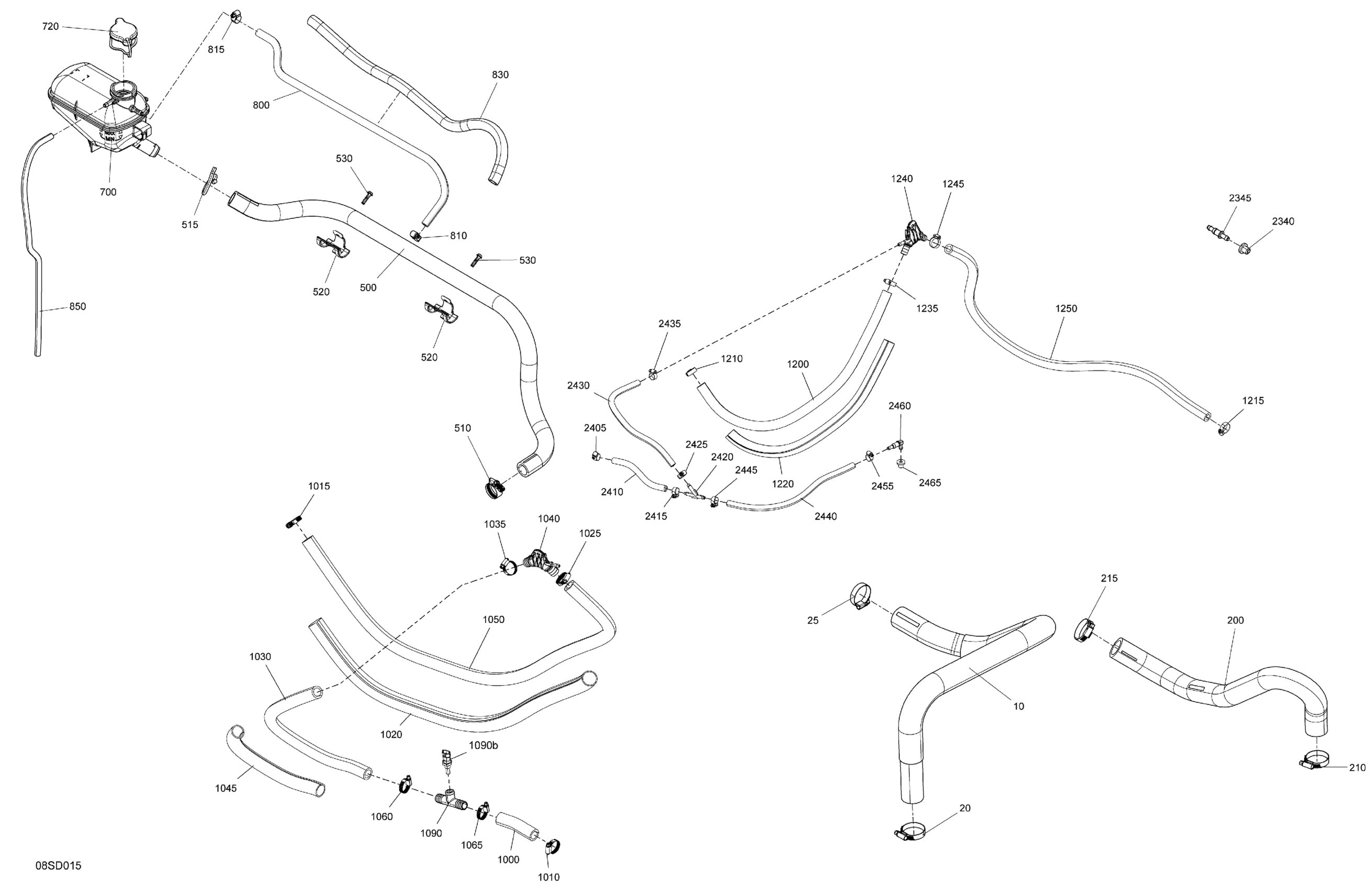

Sea-doo North America - FISH PRO SPORT 170 - 18RA - Fish package - Gulfstream Blue,2024 02- Engine - Cooling Diagram
#
10
Hose
276000516
$70.49
20
Norma Clamp
293650245
$14.99
25
Norma Clamp
293650245
$14.99
200
Formed Hose
276000517
$56.99
210
Norma Clamp
293650245
$14.99
215
Norma Clamp
293650245
$14.99
500
Coolant Tank Hose
276000537
$37.99
510
Tridon Gear Clamp
293650019
$5.82
515
Spring Clamp
293650115
$3.09
520
Hose Support
270001126
$8.43
530
Hex. Flange Screw K50 X 20
241152060
$1.99
700
Coolant Tank
276000419
$119.99
720
Pressure Cap | Includes 720 to 720a
276000100
$25.99
800
Hose 6,4 MM ID
276000425
$7.41
810
Gear Clamp
293650287
$2.11
815
Gear Clamp
293650287
$2.11
830
Was 409901800 Tubing (13 mm)
219704400
$14.49
850
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
$78.49
1000
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
1010
Gear Clamp
293650284
$4.44
1015
Gear Clamp
293650284
$4.44
1020
Tubing 25 MM 1000MM Long
219704402
$15.99
1025
Gear Clamp
293650284
$4.44
1030
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
1035
Gear Clamp
293650284
$4.44
1040
Fitting
276000547
$5.19
1045
Tubing 25 MM 1000MM Long
219704402
$15.99
1050
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
1060
Gear Clamp
293650284
$4.44
1065
Gear Clamp
293650284
$4.44
1090
Sensor Ass'y | Includes 1090 to 1090b
293710143
$63.99
1090b
Temperature Sensor
278002895
$39.99
1200
Was 276000001 Hose 12.5 mm
219704394
$51.99
1210
Clamp Gear
293650285
$3.27
1215
Clamp Gear
293650285
$3.27
1220
Was 515175319 Tubing 22 mm
219704423
$14.99
1235
Clamp Gear
293650285
$3.27
1240
Fitting
276000565
$5.19
1245
Clamp Gear
293650285
$3.27
1250
Was 276000001 Hose 12.5 mm
219704394
$51.99
2340
Grommet
293720029
$1.59
2345
Straight Fitting
293710133
$14.75
2405
Gear Clamp
293650287
$2.11
2410
Hose 6,35 Mm Id 4000Mm Long
219704547
$98.99
2415
Gear Clamp
293650287
$2.11
2420
Y-Fitting
293710059
$9.69
2425
Gear Clamp
293650287
$2.11
2430
Hose 6,35 Mm Id 4000Mm Long
219704547
$98.99
2435
Gear Clamp
293650287
$2.11
2440
Hose 6,35 Mm Id 4000Mm Long
219704547
$98.99
2445
Gear Clamp
293650287
$2.11
2455
Gear Clamp
293650287
$2.11
2460
Elbow Male Connector
414580600
$4.23
2465
Grommet
293720029
$1.59
