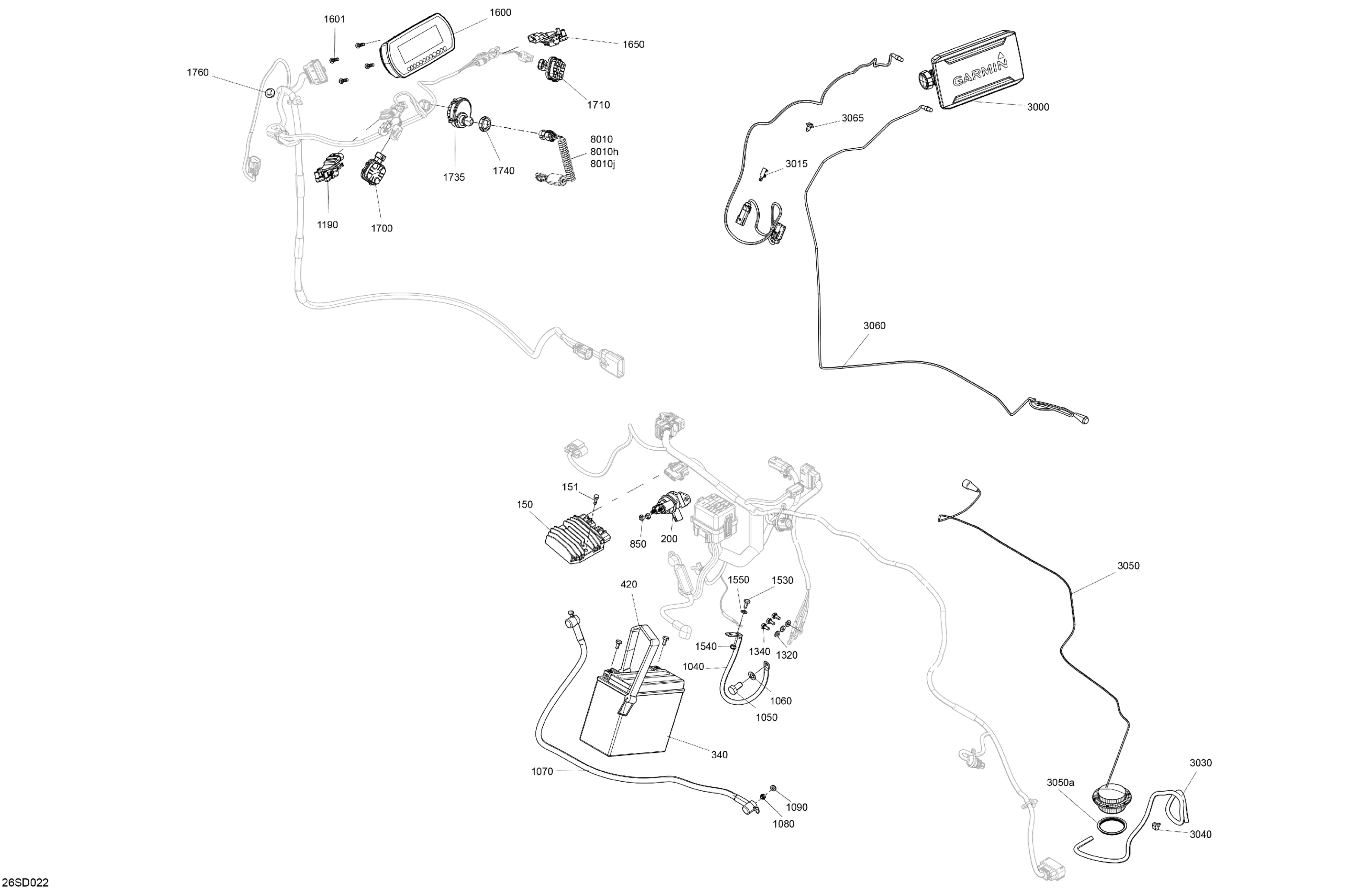

Sea-doo North America - FISH PRO SCOUT 130 - 33RA - FishSc package - Gulfstream Blue,2024 08- Electric - System Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

151

Hex. Flange Screw K50 X 25

250000680

$1.89

200

Starter Relay

278003012

$42.49

340

Battery 12 Volt 18AH

296000449

$92.28

420

Strap

293850141

$20.99

850

Elastic Stop Nut M6, Brass

232561200

$4.23

1040

Ground Battery Cable

278003451

$39.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1600

Multifunction Mono Compact Gauge

278003430

$599.99

1601

Hex. Flange Screw K50 X 20

241152060

$1.99

1650

Throttle Position Sensor

278002283

$119.99

1700

Switch

278003821

$126.99

1710

RH Switch Keypad

278003474

$126.99

1731

Start/Stop Switch This part replaces 296000440.

296000440

$46.49

1735

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

1740

Specialized Nut

278004274

$3.28

1760

Mount Dart

710008294

$1.04

3000

GPS Ass'y

278003998

$762.99

3015

Connector Support

515179692

$2.09

3030

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

3040

Mount Dart

710008294

$1.04

3050

Transducer | Includes 3000 to 3000a

295100972

$349.99

3050a

Seal

292002447

$3.27

3060

Transducer Harness

278003683

$109.99

3065

Mount Dart

710008294

$1.04

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99

8010h

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

8010j

Insert

291003793

$3.56
