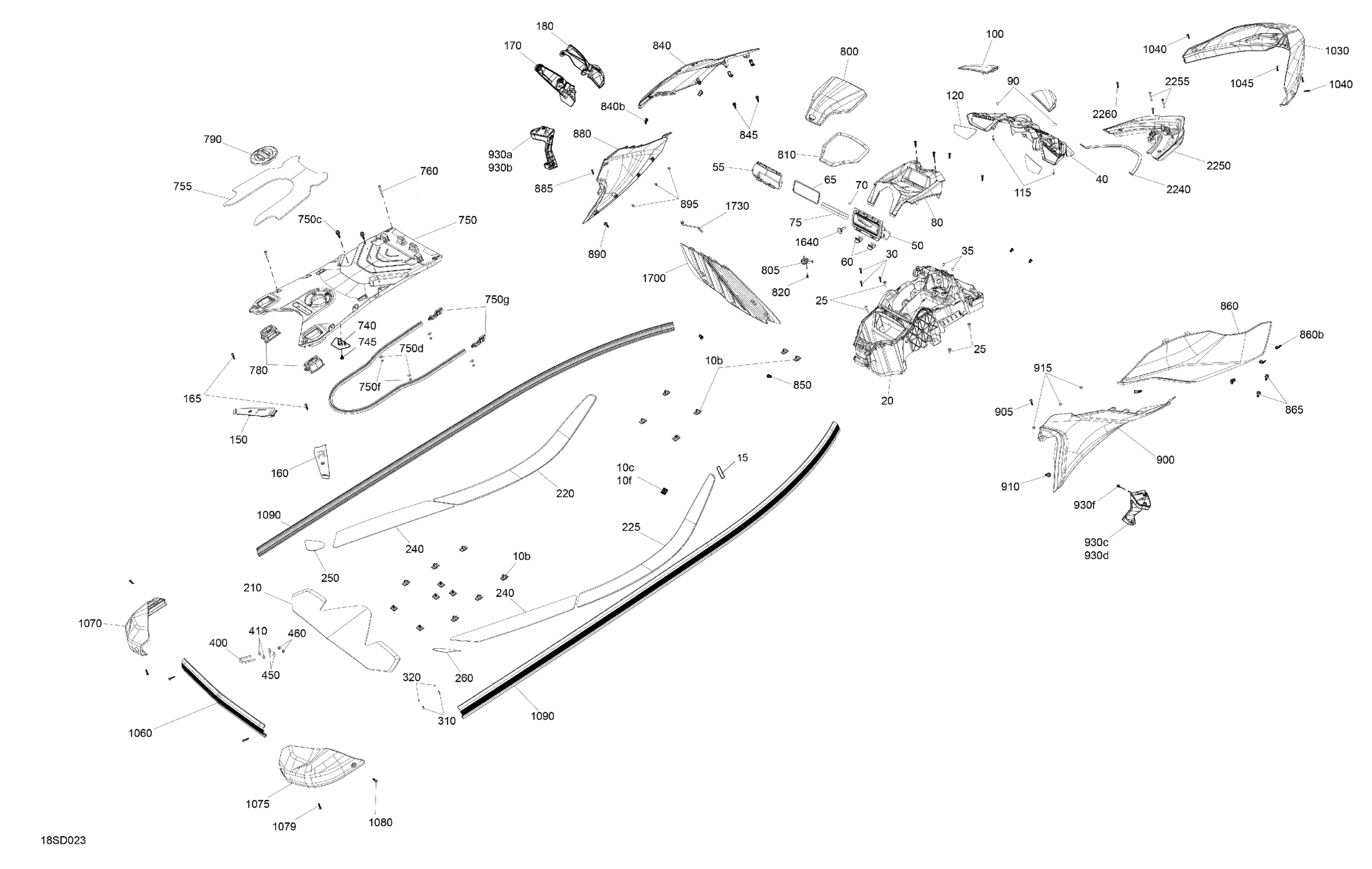

Sea-doo FISH PRO SCOUT 130 - 33RA - FishSc package - Gulfstream Blue,2024 Body - System Diagram

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.39

Anchorage Tie Wrap

293750109

$1.25

Anchorage Tie Wrap

293750109

$1.25

Decal

291005381

$1.09

Console

291005887

$184.99

Hex Screw SEMS M6X35, SS

250000969

$2.11

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Rubber Bumper

293830005

$8.09

Mirror Support

291005178

$68.99

Deep Black, Storage Bin

291005122

$24.49

Box Cover

264000158

$14.49

Clip

269501718

$15.89

Gasket

293250591

$17.99

Vent Membrane

264000137

$12.99

Sealed Compartment Foam

264000135

$12.99

Black, Console Panel

291005085

$57.99

Rubber Bumper

293830005

$8.09

Deep Black, LH Mirror Cover

269502427

$55.99

Hex. Screw 10-14 X 7/8”

211000023

$3.59

LH Mirror Glass

269502274

$88.99

LH Spacer

291005127

$20.99

RH Spacer

291005182

$20.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Echo Sounder Support

269502551

$229.99

Deep Black, Echosounder Deflector

269502375

$110.99

Anti Slip Mat Deck Rear

291005258

$71.99

LH Front Anti Slip Mat Deck

291005171

$28.49

RH Front Anti Slip Mat Deck

291005172

$28.49

LH/RH Rear Anti Slip Mat Side

291005173

$20.49

LH Rear Footrest Anti Slip Mat

291005885

$4.39

RH Rear Footrest Anti Slip Mat

291005886

$4.39

Rivet 1/8"

293150016

$0.40

Black, Snap Cap

293000014

$1.09

U-Clamp

292000933

$59.49

Flat Washer M8.5 x 18

293050001

$3.07

Flat Washer 8 mm, Stainless

234082600

$2.43

Hex. Elastic Nut M8 Brass

232581200

$2.22

Hose Protector

291004941

$4.69

Black, Dart

293730011

$0.99

Acces Cover Ass'y | Includes 750 to 750g

291005876

$219.99

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

Flat Washer M6, Stainless

234062600

$0.77

Elastic Stop Nut M6, Brass

232561200

$4.23

Seal

291004717

$12.99

Deep Black, Rear Mat

291005861

$39.99

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

Linq Bases Kit

295100858

$13.30

Access Cap Ass'y

291004481

$10.99

Deep Black, Glove Box Cover

291005888

$67.99

Glove Box Latch

264000133

$21.99

Gasket

293250498

$29.99

Screw K40 X 10

250001119

$2.40

Flint Grey, LH Front Body Panel Ass'y | Includes 840 to 840b

291005743

$184.99

Neoprene Stopper

293250546

$0.12

Dard

293730071

$1.15

Tuflok Plastic Rivet

293150230

$1.47

Flint Grey, RH Front Body Panel Ass'y | Includes 860 to 860b

291005744

$179.99

Neoprene Stopper

293250546

$0.12

Dard

293730071

$1.15

Flint Grey, LH Central Body Panel

291005746

$184.99

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Dard

293730071

$1.15

Rubber Bumper

293830005

$8.09

Flint Grey, RH Central Body Panel

291005747

$184.99

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Dard

293730071

$1.15

Rubber Bumper

293830005

$8.09

LH Front Accessory Support Kit

295101039

$31.99

LH Front Accessory Support Kit

295101039

$31.99

RH Front Accessory Support Kit

295101040

$31.99

RH Front Accessory Support Kit

295101040

$31.99

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

Bumper Front

291005082

$104.99

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Lateral Bumper

291005510

$56.99

LH Rear Bumper Corner

291005083

$20.49

RH Rear Bumper Corner

291005084

$20.49

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Lateral Bumper

291005510

$56.99

USB Plug

269502324

$3.09

Separation Panel Ass'y

291005587

$104.99

Holding Strap

269502111

$18.49

Gasket, Neoprene 2000Mm Long

219704476

$15.36

Body Deflector

291005108

$57.99

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66
