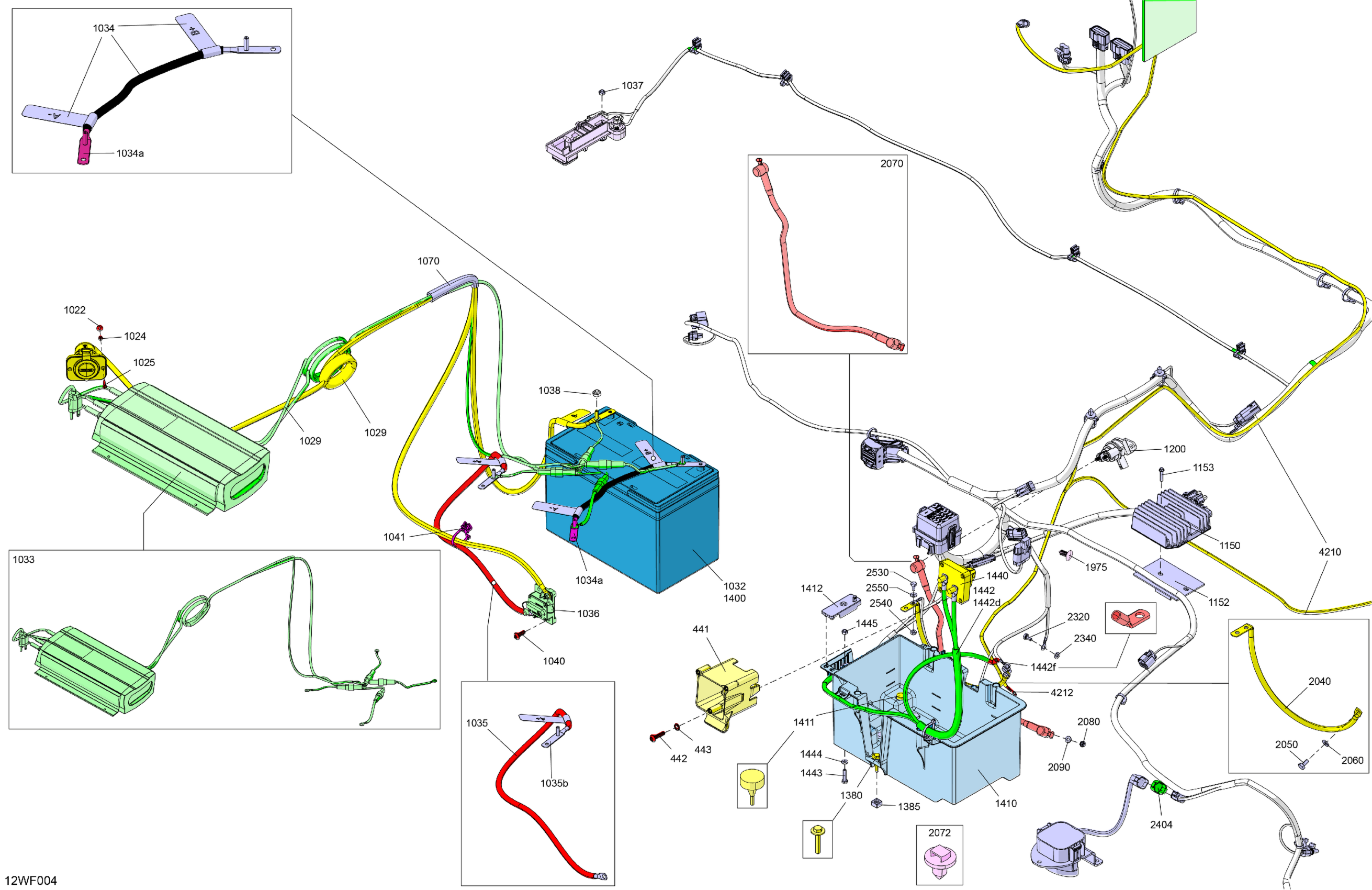

Sea-doo North America - FISH Compact - 170 - 52TA - Olive Night - Trailer Galv - CAT-NA - 2026 08- ELECTRIC - Electric Lower Section Diagram

Description

Price

441

Switch Support

278004308

$19.99

442

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

443

Sealing Washer

250200114

$4.44

1022

Flat Washer 4 mm, Stainless

234042600

$1.15

1024

Elastic Stop Nut M4

232541200

$2.11

1025

Black, Socket Head Screw M4 X 16

250001011

$1.47

1029

24V Power Outlet Wiring Harness

278004468

$24.49

1032

Battery 12 Volt 100Ah

296000465

$399.99

1033

Battery Charger

278004724

$539.99

1034

Negative Cable | Includes 1034 to 1034a

278004197

$39.99

1034a

Terminal

710008715

$8.15

1035

Circuit Breaker Cable | Includes 1035 to 1035c

278004250

$38.99

1035b

Terminal

710008715

$8.15

1035c

Protector Cap

710000393

$9.59

1036

Circuit Breaker

278004252

$79.49

1037

Elastic Stop Nut M6, Brass

232561200

$4.23

1038

Stainless, Flat Washer 8 mm

234081600

$0.55

1040

Plastite Torx Screw Cone HD.M6.81X2

250001171

$6.29

1041

Tie Wrap Clip

293750111

$14.81

1070

Barandilla Braided 25.4 Id 2000 Mm

219704619

Unavailable

1150

Voltage Regulator

710010540

$195.99

1152

Machined Heat Sink

278004853

Unavailable

1153

Hex. Flanged Pt Screw K50 X 30

241153060

$2.11

1200

Starter Relay

278003012

$42.49

1380

Hex Screw SEMS M6X35, SS

250000969

$2.11

1385

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

1400

Battery 12 Volt 100Ah

296000465

$399.99

1410

Battery Support

278004647

$80.99

1411

Seat Stopper

708003866

$4.59

1412

Positive Terminal Cap

710008598

$11.49

1440

Switch

278004300

$74.99

1442

Battery Wiring Harness | Includes 1442 to 1442g

278004656

$38.99

1442d

Shrink Tubing, 6 mm

515177246

$1.04

1442f

OPEN BARREL - Call your local BRP dealership

710000538

Unavailable

1442g

Mount Dart

293730040

$1.04

1443

Hex. Screw M6 X 25

207162560

$1.47

1444

Stainless Flat Washer M6

234061600

$0.33

1445

Elastic Stop Nut M6, Brass

232561200

$4.23

1850

Elastic Stop Nut M6, Brass

232561200

$4.23

1975

Black Dart

293730010

$0.99

2040

Negative Cable

278004389

$38.99

2050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2060

Stainless Flat Washer M6

234061600

$0.33

2070

Starter Cable

278003369

$39.99

2072

Mount Dart

710008294

$1.04

2080

Elastic Stop Nut M6, Brass

232561200

$4.23

2090

Stainless Flat Washer M6

234061600

$0.33

2320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2340

Stainless Flat Washer M6

234061600

$0.33

2404

Connector Plug

710004904

$8.79

2530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2540

Elastic Stop Nut M6, Brass

232561200

$4.23

2550

Stainless Flat Washer M6

234061600

$0.33

4210

Pump Wiring Harness

278004402

$119.99

4212

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

4213

Stainless Flat Washer M6

234061600

$0.33
