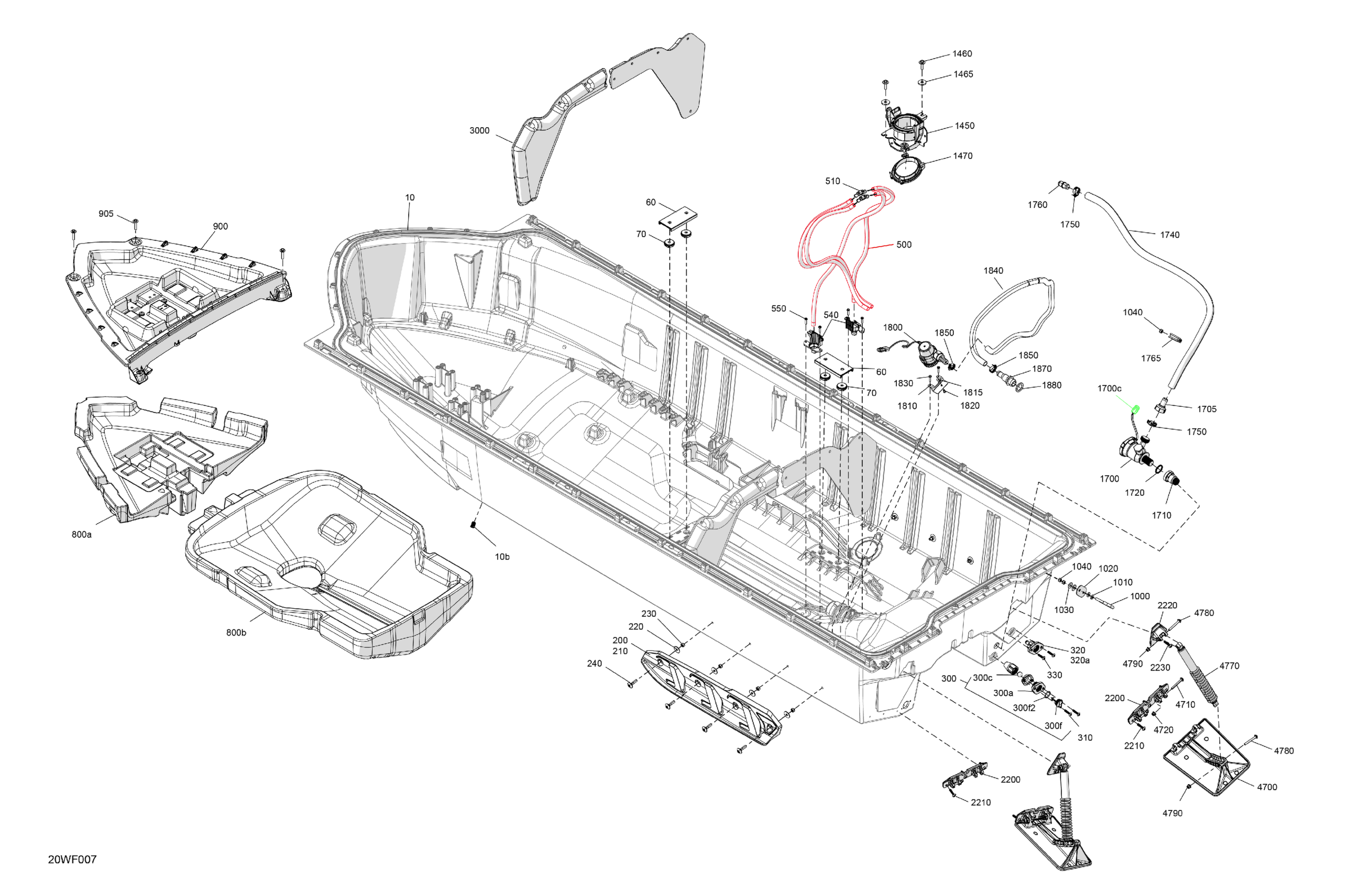

Sea-doo FISH Compact - 170 - 52TA - Olive Night - Trailer Galv - CAT-NA - 2026 HULL - Hull System Diagram

Hull Ass'y | Includes 10 to 10b

292002919

$2.00

Brass Insert M6X1

292002565

$6.13

Anchorage Support

292002403

$17.49

Formed Slot Nut

292002521

$9.80

LH Sponson

292001954

$65.99

RH Sponson

292001953

$54.99

Flat Washer 8 mm, Stainless

250200175

$3.06

Hex. Elastic Nut M8 Brass

232581200

$2.22

Torx-Head Screw M8 X 35

250001276

$5.92

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$15.49

Through Hull Fitting

292002765

$7.79

Floating Ball

293830080

$7.19

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

O-Ring

293300067

$1.04

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$14.49

Through Hull Fitting

292002765

$7.79

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Hose 11,6 Mm Id X 800

292002962

$10.99

Fitting Elbow 90°

293710152

$18.49

Pump Support

269800956

$3.39

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Lower Front Float

292002336

$219.99

Fuel Tank Float

292002337

$219.99

Luggage Compartment Bottom

292002414

$38.99

Hexagonal Cap Screw M6 X35

250000399

$4.44

U-Clamp

292000933

$59.49

Flat Washer M8.5 x 18

293050001

$3.07

Retaining Plate

292002612

$7.89

Flat Washer

279000336

$11.57

Hex. Elastic Nut M8 Brass

232581200

$2.22

Transducer Support

292002619

$9.79

Hexagonal Cap Screw M6 X 25

250000978

$4.44

Flat Washer

279000336

$11.57

Gasket

292002564

$20.49

Pump Ass'y - Use with 278004609 | Includes 1700 to 1700f

278004608

$110.99

Female Housing, 2 Circuits

278000217

$9.59

Male Terminal

409004300

$5.61

Wire Seal

278000218

$4.39

Straight Pipe Fitting - Use with 278004608

278004609

$10.99

Specialized Nut

292002522

$6.14

Seal X-Ring

293250573

$10.99

Hose 19Mm X 4000 mm Long

219704613

$50.99

Tridon Gear Clamp

293650019

$5.82

Straight Fitting

270001073

$11.12

Open Clamp

293750116

$14.99

Bilge Pump

278004010

$98.49

Bilge Pump Support

269801210

$16.49

Flat Washer 5 mm, Stainless

234052600

$0.77

Pop Rivet 3/16"

293150043

$2.09

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Hose 19 Mm Id X 1630

292003274

Unavailable

Tridon Gear Clamp

293650019

$5.82

Fitting

293710162

$13.49

Gasket

292001486

$6.60

Trim Tab Anchor

292002406

$21.99

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Shock Absorber Anchorage

292002389

$13.99

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Acoustic Insulation Panel

292002611

$16.49

Tab Trim

292002388

$18.49

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

Nut Flange Elastic M6

233261200

$0.99

Shock Absorber Ass'y

269502530

$39.99

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

Nut Flange Elastic M6

233261200

$0.99
