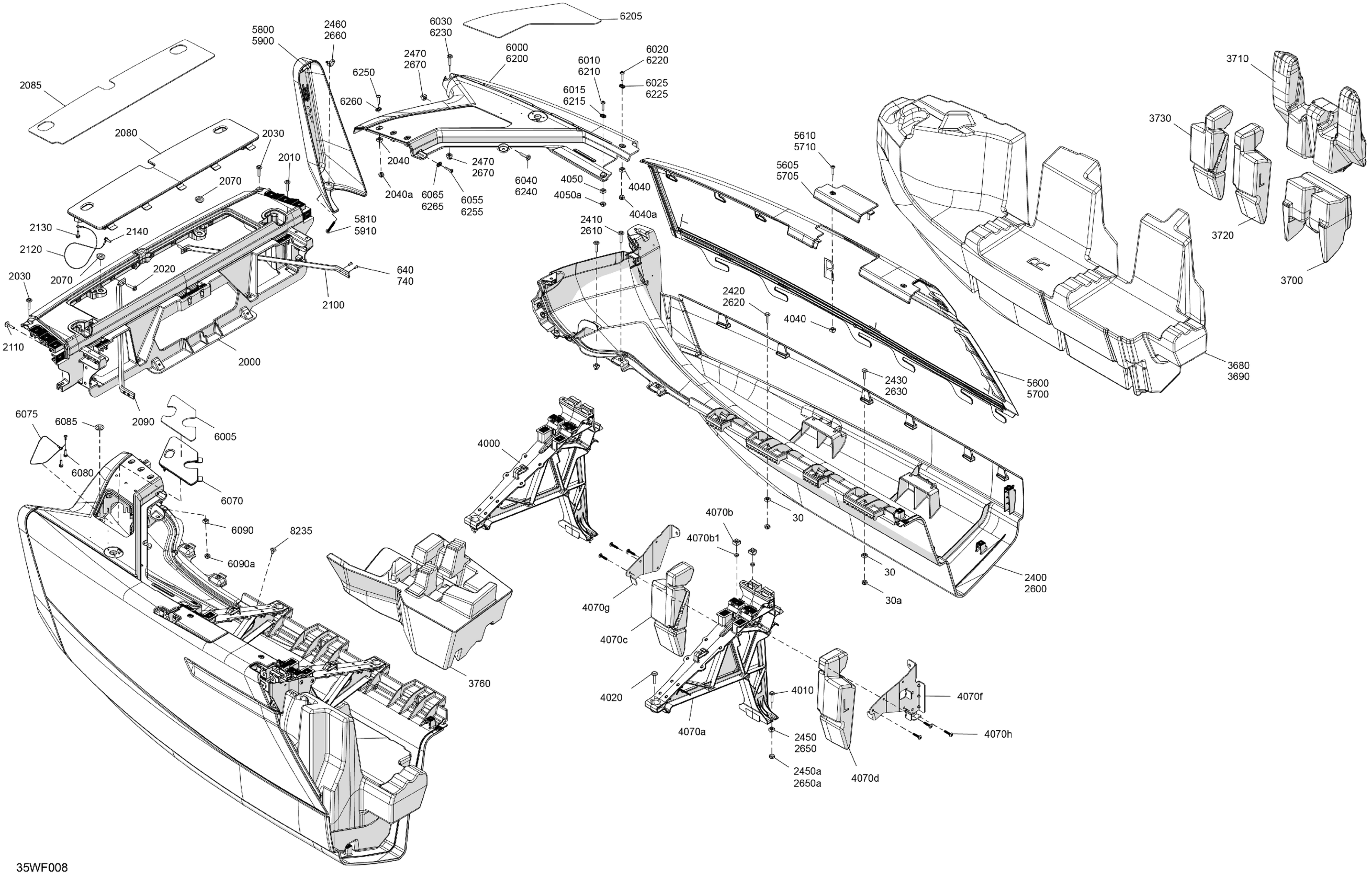

Sea-doo FISH Compact - 170 - 52TA - Olive Night - Trailer Galv - CAT-NA - 2026 HULL - Front Deflector Float and Front Bumper Diagram

#

Description
Price

30

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

30a

Elastic Stop Nut M6, Brass

232561200

$4.23

640

Pop Rivet 3/16"

293150039

$1.49

740

Pop Rivet 3/16"

293150039

$1.49

2000

Deep Black, Deflector Trim

291006557

$159.99

2010

Hexagonal Cap Screw M6 X35

250000399

$4.44

2020

Hexagonal Cap Screw M6 X35

250000399

$4.44

2030

Hexagonal Cap Screw M6 X35

250000399

$4.44

2040

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2040a

Elastic Stop Nut M6, Brass

232561200

$4.23

2070

Oval Washer

705000321

$5.61

2080

Deep Black, Acces Cover

291006558

$55.99

2085

Front Central Mat

269801716

$58.99

2090

LH Trim Reinforcement

291005632

$38.99

2100

RH Trim Reinforcement

291005640

$38.99

2110

Hex SEMS Screw M6X30

250001164

$1.37

2120

Retaining Cable

291005711

$11.49

2130

Hex. Flange Screw M6.81 x 20

243162060

$3.72

2140

Hex. Flange Screw M6.81 x 20

243162060

$3.72

2400

LH Front Float Deflector

291006412

$1.00

2410

Hexagonal Cap Screw M6 X35

250000399

$4.44

2420

Hex Screw SEMS M6X35, SS

250000969

$2.11

2430

Hex Screw SEMS M6X35, SS

250000969

$2.11

2450

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2450a

Elastic Stop Nut M6, Brass

232561200

$4.23

2460

Plastite Insert 6.81

291006420

$5.82

2470

Platite Insert 6.81

291005889

$5.82

2600

RH Float Deflector

291006413

$1.00

2610

Hexagonal Cap Screw M6 X35

250000399

$4.44

2620

Hex Screw SEMS M6X35, SS

250000969

$2.11

2630

Hex Screw SEMS M6X35, SS

250000969

$2.11

2650

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2650a

Elastic Stop Nut M6, Brass

232561200

$4.23

2660

Plastite Insert 6.81

291006420

$5.82

2670

Platite Insert 6.81

291005889

$5.82

3680

LH Front Float

292002789

$329.99

3690

RH Front Float

292002790

$329.99

3700

Lower Float Support

291005639

$11.99

3710

Upper Float Support

291005845

$20.99

3720

LH Float Support

291005637

$15.99

3730

RH Float Support

291005636

$15.99

3760

Foam Support

291006268

$109.99

4000

Interlocking Tile Support

291004895

$159.99

4010

Hex Screw SEMS M6X35, SS

250000969

$2.11

4020

Hex Screw SEMS M6X35, SS

250000969

$2.11

4040

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

4040a

Elastic Stop Nut M6, Brass

232561200

$4.23

4050

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

4050a

Elastic Stop Nut M6, Brass

232561200

$4.23

4070a

Interlocking Tile Support

291004895

$159.99

4070b

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

4070b1

Elastic Stop Nut M6, Brass

232561200

$4.23

4070c

RH Float Support

291005636

$15.99

4070d

LH Float Support

291005637

$15.99

4070f

Machined Support Reinforcement

291006538

$18.49

4070g

Machined Support Reinforcement

291006539

$18.49

4070h

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

5600

Olive Night, LH Front Panel

291006262

$204.99

5605

Olive Night, LH Front Panel Trim

291006264

$109.99

5610

Screw Torx Truss Head M6 X 30

250001381

$4.12

5700

Olive Night, RH Front Panel

291006263

$204.99

5705

Olive Night, RH Front Panel Trim

291006266

$109.99

5710

Screw Torx Truss Head M6 X 30

250001381

$4.12

5800

Deep Black, LH Front Bumper

291006555

$76.99

5810

Screw-Plastite Torx Cone Head M6.81 X 60

250001004

$4.76

5900

Deep Black, RH Front Bumper

291006556

$76.99

5910

Screw-Plastite Torx Cone Head M6.81 X 60

250001004

$4.76

6000

Olive Night, LH Front Panel Trim

291006188

$109.99

6005

LH Front Mat

269004161

$63.99

6010

Screw Torx Truss Head M6 X 30

250001381

$4.12

6015

Oval Washer

291003880

$1.77

6020

Screw Torx Truss Head M6 X 30

250001381

$4.12

6025

Oval Washer

291003880

$1.77

6030

Hexagonal Cap Screw M6 X35

250000399

$4.44

6040

Hexagonal Cap Screw M6 X35

250000399

$4.44

6055

Screw Torx Truss Head M6 X 30

250001381

$4.12

6065

Oval Washer

291003880

$1.77

6070

Access Door

291006265

$109.99

6075

Retaining Cable

291006659

$11.49

6080

Hex. Flange Screw M6.81 x 20

243162060

$3.72

6085

Oval Washer

705000321

$5.61

6090

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

6090a

Elastic Stop Nut M6, Brass

232561200

$4.23

6200

Olive Night, RH Front Panel Trim

291006399

$109.99

6205

RH Front Mat

269004162

$58.99

6210

Screw Torx Truss Head M6 X 30

250001381

$4.12

6215

Oval Washer

291003880

$1.77

6220

Screw Torx Truss Head M6 X 30

250001381

$4.12

6225

Oval Washer

291003880

$1.77

6230

Hexagonal Cap Screw M6 X35

250000399

$4.44

6240

Hexagonal Cap Screw M6 X35

250000399

$4.44

6250

Screw Torx Truss Head M6 X 30

250001381

$4.12

6255

Screw Torx Truss Head M6 X 30

250001381

$4.12

6260

Oval Washer

291003880

$1.77

6265

Oval Washer

291003880

$1.77

8235

Mount Dart

710008294

$1.04
