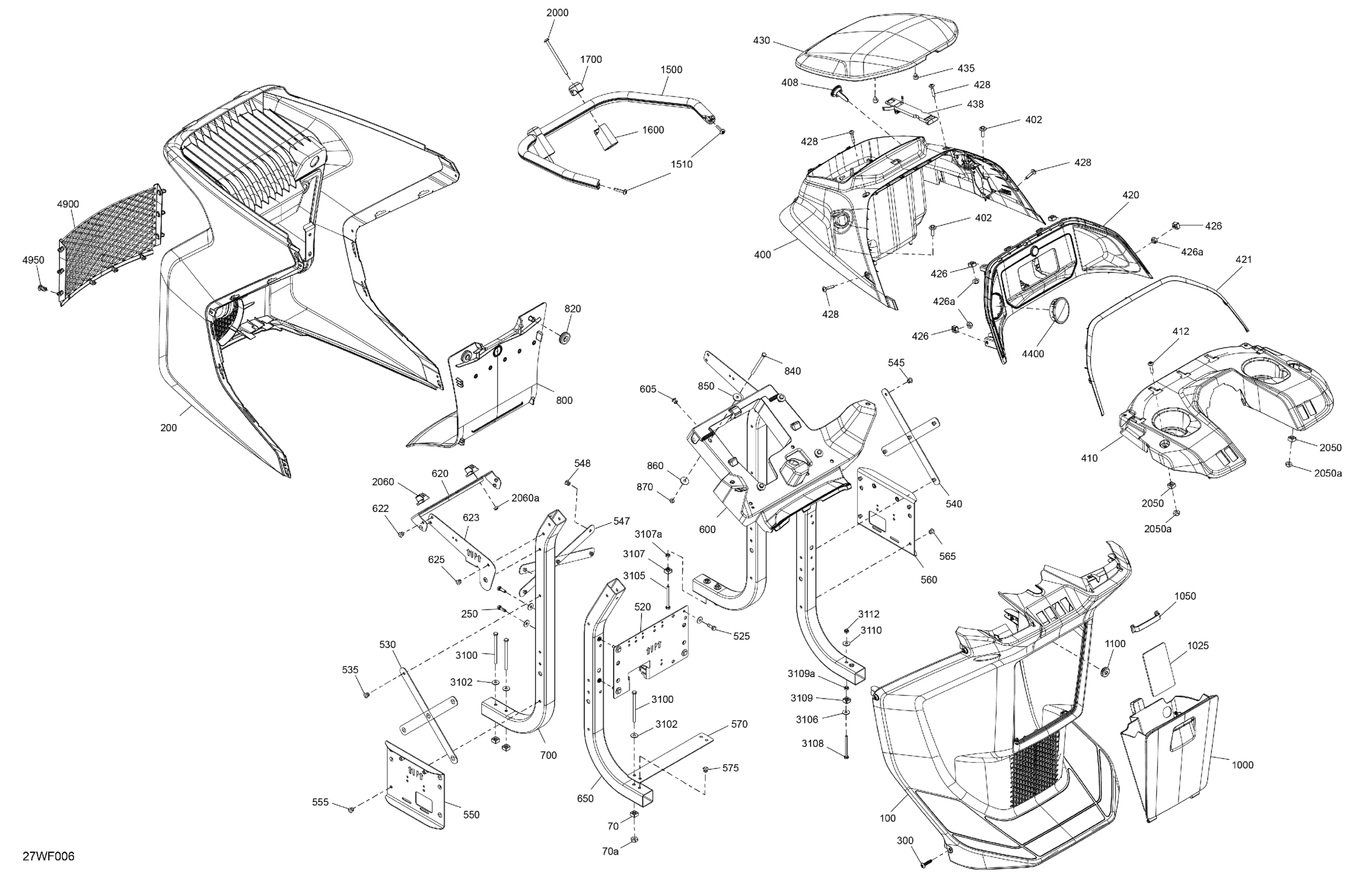

Sea-doo FISH Compact - 170 - 52TA - Olive Night - Trailer Galv - CAT-NA - 2026 HELM - Console Diagram

#

Description
Price

70

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

70a

Elastic Stop Nut M6, Brass

232561200

$4.23

100

Rear Console Panel

281000001

$204.99

200

Front Console Panel

281000002

$204.99

250

Hex Screw M6 X 20

250000965

$2.11

300

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

400

Upper Front Console Panel

281000145

$66.99

402

Hexagonal Cap Screw M6 X 25

250000978

$4.44

408

USB Plug

269502324

$3.09

410

Upper Rear Console Panel

281000150

$66.99

412

Screw Torx Truss Head M6 X 30

250001381

$4.12

420

Gauge Support

281000152

$43.99

421

Console Trim

281000153

$71.99

426

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

426a

Elastic Stop Nut M6, Brass

232561200

$4.23

428

Truss Cone Torx Screw M6 X 30

250000924

$7.51

430

Box Cover

281000147

$66.99

435

Rubber Bumper

293830005

$8.09

438

Lid Latch

281000169

$3.69

520

Rear Reinforcement

281000211

$34.99

525

Hex Screw M6 X 20

250000965

$2.11

530

Lateral Reinforcement

281000058

$6.79

535

Ornit Rivet 6,4 X 15.6

293150284

$4.44

540

Lateral Reinforcement

281000058

$6.79

545

Ornit Rivet 6,4 X 15.6

293150284

$4.44

547

Lateral Reinforcement

281000058

$6.79

548

Ornit Rivet 6,4 X 15.6

293150284

$4.44

550

Amplifier Support Ass'y

281000123

$42.99

555

Ornit Rivet 6,4 X 15.6

293150284

$4.44

560

Amplifier Support Ass'y

281000123

$42.99

565

Ornit Rivet 6,4 X 15.6

293150284

$4.44

570

Rear Lower Reinforcement

281000081

$6.39

575

Ornit Rivet 6,4 X 15.6

293150284

$4.44

600

Steering Colum Reinforcement

281000060

$51.99

605

Ornit Rivet 6,4 X 15.6

293150284

$4.44

620

Hand Rail Reinforcement

281000191

$33.99

622

Ornit Rivet 6,4 X 15.6

293150284

$4.44

623

Lateral Reinforcement

281000256

$14.99

625

Ornit Rivet 6,4 X 15.6

293150284

$4.44

650

Rear Tube Support Ass'y

281000200

$46.99

700

Front Tube Support Ass'y

281000201

$46.99

800

Access Panel

281000000

$249.99

820

Grommet

517303756

$4.09

840

Hex. Screw M6 X 90

207169060

$4.34

850

Flat Washer M6.6 X 22

250200022

$2.72

860

Flat Washer M6.6 X 22

250200022

$2.72

870

Elastic Stop Nut M6, Brass

232561200

$4.23

1000

Storage Box Service Kit

295101093

$63.99

1025

Self Adhesive Protective Foam

281000110

$2.69

1050

Elastic Strip

281000155

$13.49

1100

Grommet

517307161

$2.79

1500

Console Hand Rail

281000149

$216.99

1510

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.91

1600

Front Lower Hand Rail Anchorage

281000195

$6.39

1700

Front Upper Hand Rail Anchorage

281000048

$6.59

2000

Cone Torx Truss Screw HD.M6 X 100

250001163

$3.91

2050

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2050a

Elastic Stop Nut M6, Brass

232561200

$4.23

2060

Nut Housing M6 | Includes 2060 to 2060a

281000178

$1.68

2060a

Elastic Stop Nut M6, Brass

232561200

$4.23

3100

Hex. Screw M6 X 90

207169060

$4.34

3102

Flat Washer M6, Stainless

234062600

$0.77

3105

Hex. Screw M6 X 65

207166560

$2.75

3106

Flat Washer M6, Stainless

234062600

$0.77

3107

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

3107a

Elastic Stop Nut M6, Brass

232561200

$4.23

3108

Hex. Screw M6 X 65

207166560

$2.75

3109

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

3109a

Elastic Stop Nut M6, Brass

232561200

$4.23

3110

Flat Washer M6, Stainless

234062600

$0.77

3112

Elastic Stop Nut M6, Brass

232561200

$4.23

4400

Cap

281000216

$20.99

4900

Net Ass'y

281000156

$99.99

4950

Tuflok Plastic Rivet

293150230

$1.47
