Description

Price

1

Camshaft

420820283

$889.99

2

Camshaft Guide

420851694

$31.99

3

Timing Gear, 38 Teeth

420254309

$69.99

4

Torx Flange Screw M6 X 12

420841080

$4.61

5

Camshaft Chain

420898042

$97.49

6

Chain Tension Guide

420236541

$15.89

7

Chain Guide

420236501

$14.28

8

Chain Tensioner With Screw | Includes no. 8-11

420236259

$70.99

9

Chain Tensioner

420236393

$63.49

10

Gasket Ring

420430624

$1.89

11

Plug Screw M16 X 1.5

420640485

Unavailable

12

Rocker Arm, Exhaust

420254329

$137.49

13

Rocker Arm, Inner

420254316

$179.99

14

Rocker Arm, Shaft

420854594

$201.49

15

Torx Screw M8 X 72

420641080

$5.29

16

Spark Plug NGK DCPR8E This part replaces 715900642.

715901051

$6.35

17

Spark Plug Pipe

420851754

$27.49

18

Valve Cover Gasket | Included in gasket kit

420950820

$32.99

19

Valve Cover

420911954

$206.49

20

Allen Screw M6 x 30,5

420440561

$4.44

21

Plug Cover Ass'y

420956925

$26.49

22

Retaining Band

420660623

$7.41

23

Push Pin

420201650

$2.32

24

Ignition Coil Ass'y | Includes 5 to 6

420666147

$124.99

25

Protection Cap

420201430

$7.51

26

Plug Boot

420201437

$4.29

27

Torx Flange Screw M6 X 20

420441383

$5.40

28

Camshaft Position Sensor Ass'y

420664046

$88.99

29

O-Ring

420631890

$5.18

30

Torx Flange Screw M6 X 16

420641048

$2.96

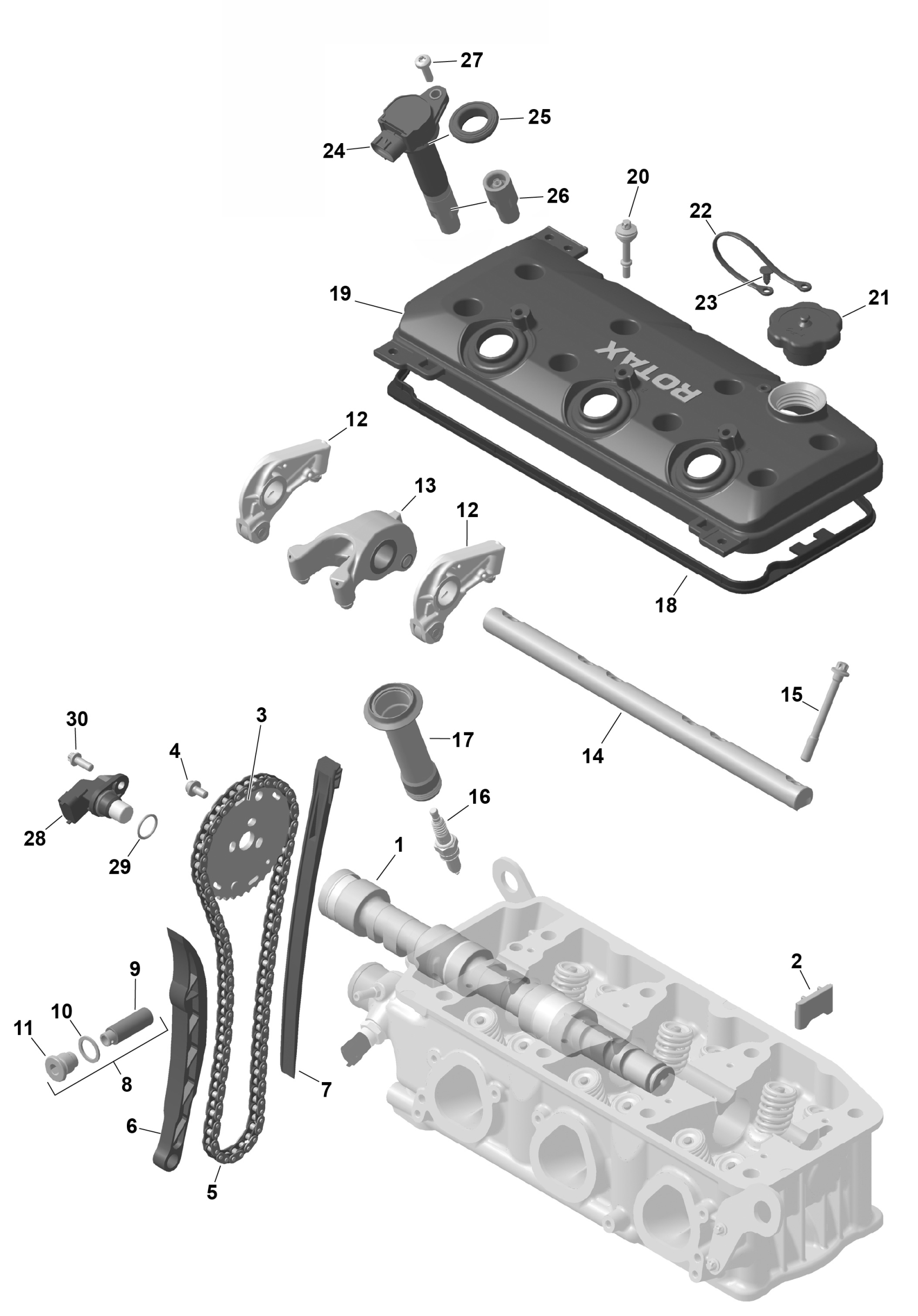

Sea-doo FISH Compact - 170 - 52TA - Olive Night - Trailer Galv - CAT-NA - 2026 ROTAX - Valve Train Diagram
