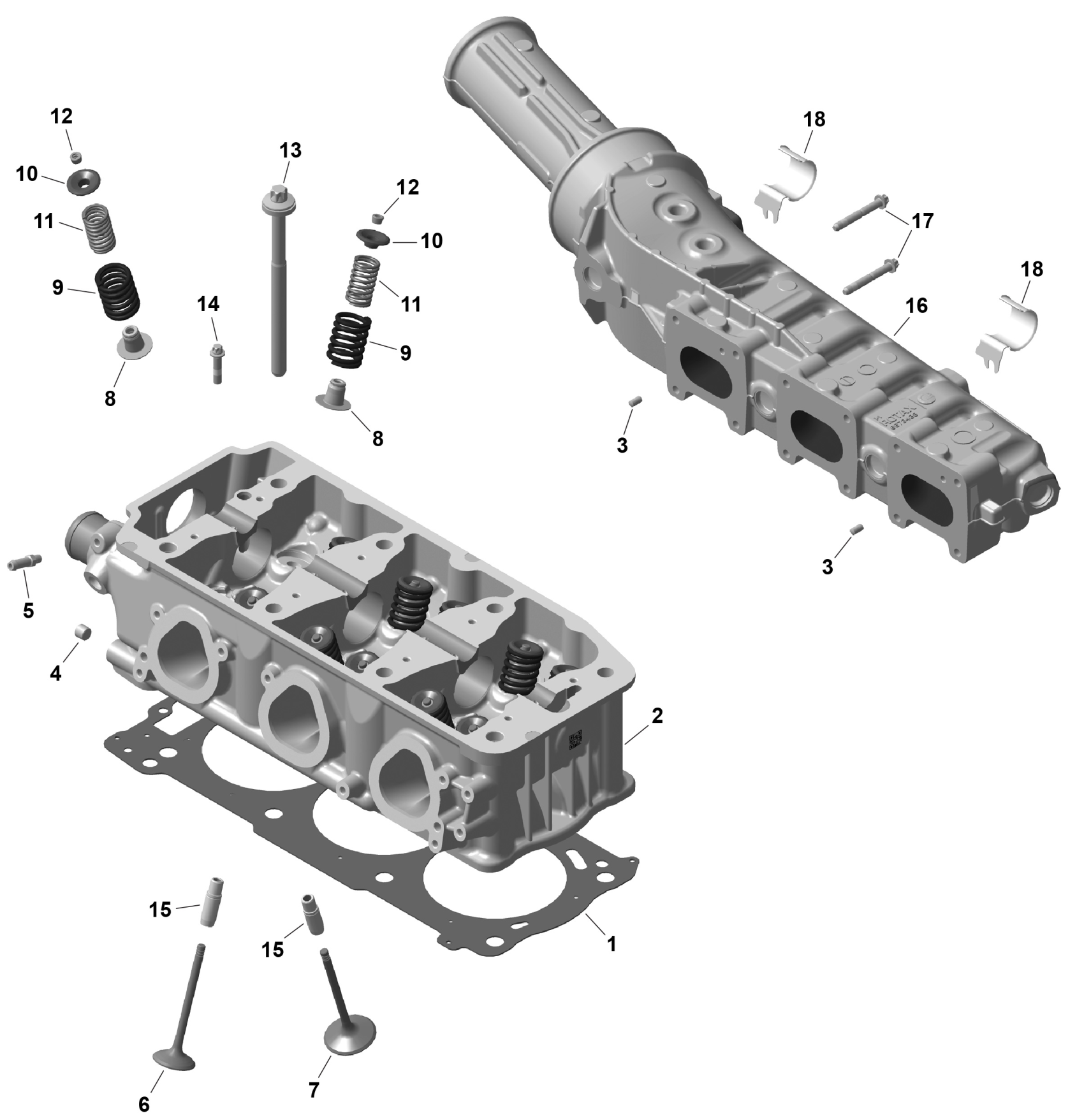

Sea-doo FISH Compact - 170 - 52TA - Olive Night - Trailer Galv - CAT-NA - 2026 ROTAX - Cylinder Head Diagram

Cylinder Head Gasket | Included in gasket kit

420950772

$126.09

Cylinder Head Ass'y | Includes no. 2-5

420413309

$840.99

Drive Pin 5 X 10

420929650

$1.54

Plug Screw M10 X 1

420641323

$13.18

Hose Nipple

420924724

$14.10

Exhaust Valve, 31 mm

420254682

$97.73

Intake Valve 38MM

420253163

$38.78

Valve Steam Seal

420630202

$6.91

Valve Spring Set 1603 ( Includes 9 and 11) | Includes no. 9-10

420238183

$88.78

Not Available As Spare Parts

XXX

Unavailable

Valve Spring Inside

420838280

$12.15

Valve Cotter

420253645

$7.01

Torx Flange Screw M11 X 147

420641115

$10.76

Torx Flange Screw M6 X 25

420641238

$3.07

Valve Guide | Inner diameter machined

420253929

$43.25

Engine Exhaust Manifold This part replaces 420673436.

420673437

Unavailable

Torx Flange Screw M6 X 45

420641198

$3.88
