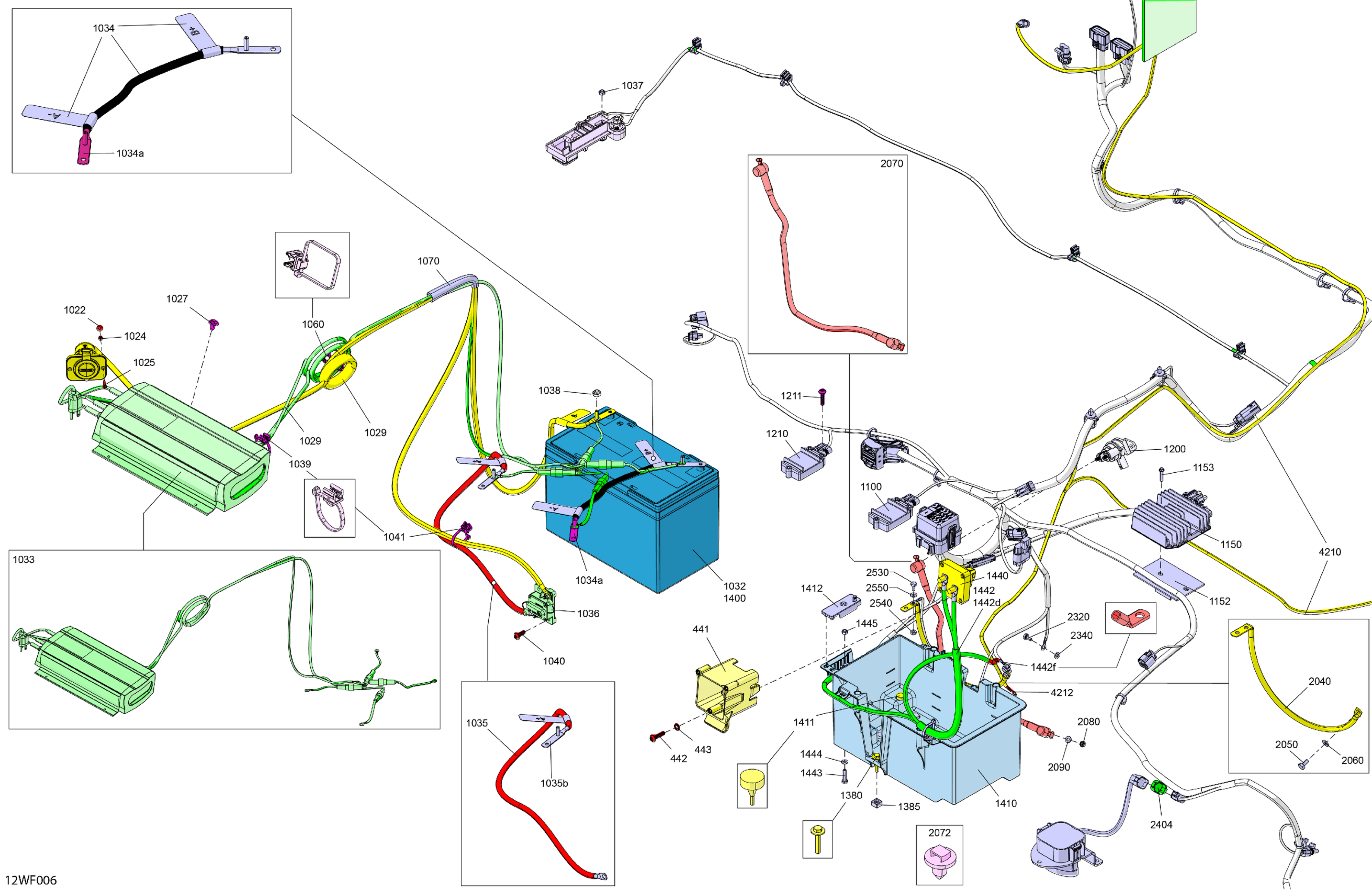

Sea-doo FISH 21 - 300 - 54TB - Olive Night - Trailer Galv - CAT-1-30-101 - 2026 ELECTRIC - Electric Lower Section Diagram

Switch Support

278004308

$16.39

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

Sealing Washer

250200114

$4.15

Flat Washer 4 mm, Stainless

234042600

$1.06

Elastic Stop Nut M4

232541200

$2.00

Black, Socket Head Screw M4 X 16

250001011

$1.40

Mount Dart

710008294

$0.99

24V Power Outlet Wiring Harness

278004468

Unavailable

Battery 12 Volt 100Ah

296000465

$388.03

Battery Charger

278004724

Unavailable

Negative Cable | Includes 1034 to 1034a

278004197

Unavailable

Terminal

710008715

$7.52

Circuit Breaker Cable | Includes 1035 to 1035c

278004250

Unavailable

Terminal

710008715

$7.52

Protector Cap

710000393

$8.72

Circuit Breaker

278004252

Unavailable

Elastic Stop Nut M6, Brass

232561200

$4.03

Stainless, Flat Washer 8 mm

234081600

$0.52

Tie Wrap Clip

293750111

$13.49

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

Tie Wrap Clip

293750111

$13.49

Anchorage Tie Wrap

293750103

$4.27

Barandilla Braided 25.4 Id 2000 Mm

219704619

Unavailable

Gateway Can Module

204471484

$191.76

Voltage Regulator

710010540

$183.55

Machined Heat Sink

278004853

Unavailable

Hex. Flanged Pt Screw K50 X 30

241153060

$2.00

Starter Relay

278003012

$40.27

Relay

278004052

$88.78

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

Hex Screw SEMS M6X35, SS

250000969

$2.00

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

Battery 12 Volt 100Ah

296000465

$388.03

Battery Support

278004647

$72.36

Seat Stopper

708003866

$4.15

Positive Terminal Cap

710008598

$10.28

Switch

278004300

$67.13

Battery Wiring Harness | Includes 1442 to 1442g

278004656

Unavailable

Shrink Tubing, 6 mm

515177246

$0.99

OPEN BARREL - Call your local BRP dealership

710000538

Unavailable

Mount Dart

293730040

$0.99

Hex. Screw M6 X 25

207162560

$1.40

Stainless Flat Washer M6

234061600

$0.28

Elastic Stop Nut M6, Brass

232561200

$4.03

Elastic Stop Nut M6, Brass

232561200

$4.03

Negative Cable

278004389

Unavailable

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

Stainless Flat Washer M6

234061600

$0.28

Starter Cable

278003369

$35.79

Mount Dart

710008294

$0.99

Elastic Stop Nut M6, Brass

232561200

$4.03

Stainless Flat Washer M6

234061600

$0.28

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

Stainless Flat Washer M6

234061600

$0.28

Connector Plug

710004904

$8.30

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

Elastic Stop Nut M6, Brass

232561200

$4.03

Stainless Flat Washer M6

234061600

$0.28

Pump Wiring Harness

278004402

Unavailable

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

Stainless Flat Washer M6

234061600

$0.28
