05- HULL - Front Deflector Float and Front Bumper

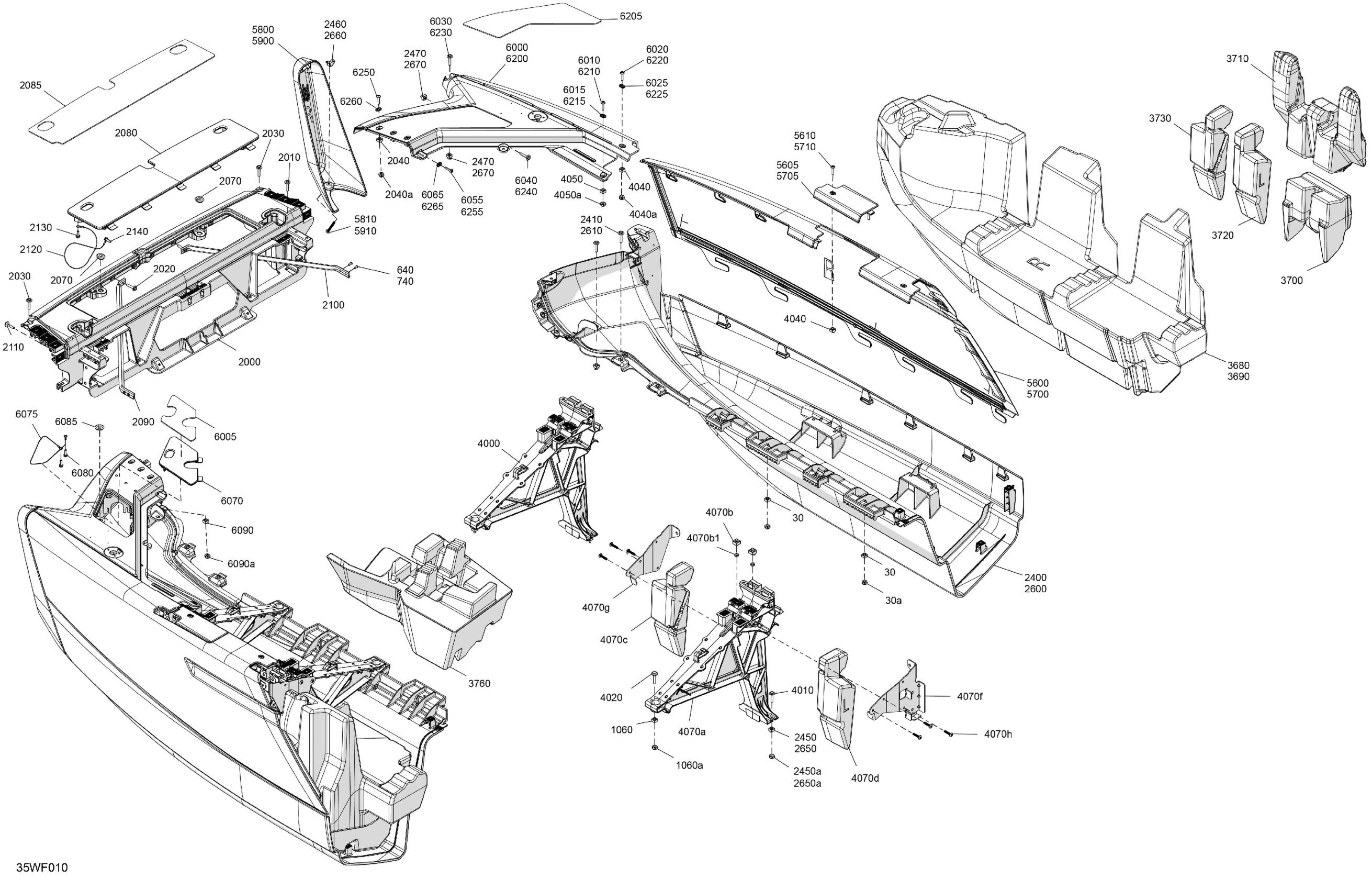

Sea-doo North America - FISH 21 - 230 - 53TB - Olive Night - Trailer Galv - CAT-2-375-101 - 2026 05- HULL - Front Deflector Float and Front Bumper Diagram
#
30
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
30a
Elastic Stop Nut M6, Brass
232561200
$4.23
640
Pop Rivet 3/16"
293150039
$1.49
740
Pop Rivet 3/16"
293150039
$1.49
1060
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
1060a
Elastic Stop Nut M6, Brass
232561200
$4.23
2000
Deep Black, Deflector Trim
291006557
$159.99
2010
Hexagonal Cap Screw M6 X35
250000399
$4.44
2020
Hexagonal Cap Screw M6 X35
250000399
$4.44
2030
Hexagonal Cap Screw M6 X35
250000399
$4.44
2040
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2040a
Elastic Stop Nut M6, Brass
232561200
$4.23
2070
Oval Washer
705000321
$5.61
2080
Deep Black, Acces Cover
291006558
$55.99
2085
Front Central Mat
269801716
$58.99
2090
LH Trim Reinforcement
291005632
$38.99
2100
RH Trim Reinforcement
291005640
$38.99
2110
Hex SEMS Screw M6X30
250001164
$1.37
2120
Retaining Cable
291005711
$11.49
2130
Hex. Flange Screw M6.81 x 20
243162060
$3.72
2140
Hex. Flange Screw M6.81 x 20
243162060
$3.72
2400
LH Front Float Deflector
291006412
$1.00
2410
Hexagonal Cap Screw M6 X35
250000399
$4.44
2450
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2450a
Elastic Stop Nut M6, Brass
232561200
$4.23
2460
Plastite Insert 6.81
291006420
$5.82
2470
Platite Insert 6.81
291005889
$5.82
2600
RH Float Deflector
291006413
$1.00
2610
Hexagonal Cap Screw M6 X35
250000399
$4.44
2650
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2650a
Elastic Stop Nut M6, Brass
232561200
$4.23
2660
Plastite Insert 6.81
291006420
$5.82
2670
Platite Insert 6.81
291005889
$5.82
3680
LH Front Float
292002789
$329.99
3690
RH Front Float
292002790
$329.99
3700
Lower Float Support
291005639
$11.99
3710
Upper Float Support
291005845
$20.99
3720
LH Float Support
291005637
$15.99
3730
RH Float Support
291005636
$15.99
3760
Foam Support
291006268
$109.99
4000
Interlocking Tile Support
291004895
$159.99
4010
Hex Screw SEMS M6X35, SS
250000969
$2.11
4020
Hex Screw SEMS M6X35, SS
250000969
$2.11
4040
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
4040a
Elastic Stop Nut M6, Brass
232561200
$4.23
4050
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
4050a
Elastic Stop Nut M6, Brass
232561200
$4.23
4070a
Interlocking Tile Support
291004895
$159.99
4070b
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
4070b1
Elastic Stop Nut M6, Brass
232561200
$4.23
4070c
RH Float Support
291005636
$15.99
4070d
LH Float Support
291005637
$15.99
4070f
Machined Support Reinforcement
291006538
$18.49
4070g
Machined Support Reinforcement
291006539
$18.49
4070h
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
5600
Olive Night, LH Front Panel
291006262
$204.99
5605
Olive Night, LH Front Panel Trim
291006264
$109.99
5610
Screw Torx Truss Head M6 X 30
250001381
$4.12
5700
Olive Night, RH Front Panel
291006263
$204.99
5705
Olive Night, RH Front Panel Trim
291006266
$109.99
5710
Screw Torx Truss Head M6 X 30
250001381
$4.12
5800
Deep Black, LH Front Bumper
291006555
$76.99
5810
Screw-Plastite Torx Cone Head M6.81 X 60
250001004
$4.76
5900
Deep Black, RH Front Bumper
291006556
$76.99
5910
Screw-Plastite Torx Cone Head M6.81 X 60
250001004
$4.76
6000
Olive Night, LH Front Panel Trim
291006188
$109.99
6005
LH Front Mat
269004161
$63.99
6010
Screw Torx Truss Head M6 X 30
250001381
$4.12
6015
Oval Washer
291003880
$1.77
6020
Screw Torx Truss Head M6 X 30
250001381
$4.12
6025
Oval Washer
291003880
$1.77
6030
Hexagonal Cap Screw M6 X35
250000399
$4.44
6040
Hexagonal Cap Screw M6 X35
250000399
$4.44
6055
Screw Torx Truss Head M6 X 30
250001381
$4.12
6065
Oval Washer
291003880
$1.77
6070
Access Door
291006265
$109.99
6075
Retaining Cable
291006659
$11.49
6080
Hex. Flange Screw M6.81 x 20
243162060
$3.72
6085
Oval Washer
705000321
$5.61
6090
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
6090a
Elastic Stop Nut M6, Brass
232561200
$4.23
6200
Olive Night, RH Front Panel Trim
291006399
$109.99
6205
RH Front Mat
269004162
$58.99
6210
Screw Torx Truss Head M6 X 30
250001381
$4.12
6215
Oval Washer
291003880
$1.77
6220
Screw Torx Truss Head M6 X 30
250001381
$4.12
6225
Oval Washer
291003880
$1.77
6230
Hexagonal Cap Screw M6 X35
250000399
$4.44
6240
Hexagonal Cap Screw M6 X35
250000399
$4.44
6250
Screw Torx Truss Head M6 X 30
250001381
$4.12
6255
Screw Torx Truss Head M6 X 30
250001381
$4.12
6260
Oval Washer
291003880
$1.77
6265
Oval Washer
291003880
$1.77
