11- GUARD RAILS - System Assembly

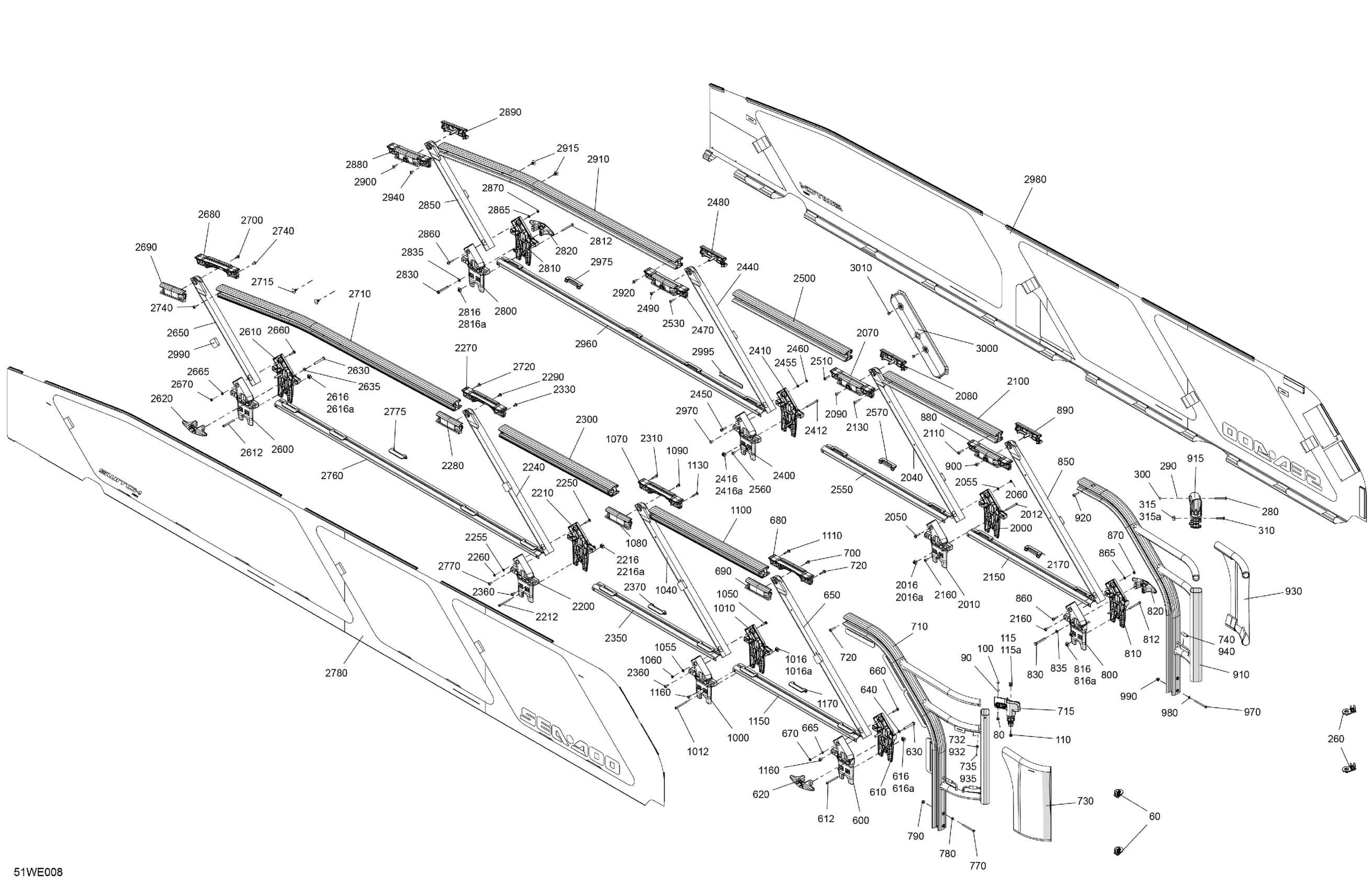

Sea-doo North America - FISH 21 - 230 - 53SG - Olive Night - Trailer Paint - CAT2B - 2025 11- GUARD RAILS - System Assembly Diagram
#
60
LH Rear Molded Spacer
281300825
$18.49
80
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
90
Stainless Flat Washer M6
234061600
$0.33
100
Hexagonal Jam Nut M6
232161600
$12.12
110
Cone Torx Truss Screw HD.M6 X 35
250001217
$3.91
115
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
115a
Elastic Stop Nut M6, Brass
232561200
$4.23
260
RH Rear Molded Spacer
281300826
$18.49
280
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
290
Stainless Flat Washer M6
234061600
$0.33
300
Hexagonal Jam Nut M6
232161600
$12.12
310
Cone Torx Truss Screw HD.M6 X 35
250001217
$3.91
315
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
315a
Elastic Stop Nut M6, Brass
232561200
$4.23
600
LH Rear Rail Support
281300439
$39.99
610
RH Rear Rail Support
281300441
$39.99
612
Socket Head Screw M6 X 65
205066560
$1.90
616
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
616a
Elastic Stop Nut M6, Brass
232561200
$4.23
620
Cleat
291005668
$26.99
630
Hex. Screw M8 X 60, Scotch Grip
250000187
$4.44
640
Stainless, Flat Washer 8 mm
234081600
$0.55
650
Rear Profiled Tube
281300172
$104.99
660
Truss Cone Torx Screw M6 X 30
250000924
$7.51
665
Stainless Flat Washer M6
234061600
$0.33
670
Elastic Stop Nut M6, Brass
232561200
$4.23
680
Interior End Piece
281300244
$30.99
690
Exterior Cover
281300247
$25.99
700
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
710
LH Rear Guard Rail
281300664
$219.99
715
LH Latch Stopper
281300667
$7.39
720
Cone Torx Truss Screw HD.M6 X 30
250001146
$3.91
730
LH Rear Balustrade
281300771
$244.99
732
Fastener Snap
293730102
$4.79
735
Pop RIvet 1/8 X ,375
293150285
$0.33
740
Rear Balustrade Fastener
281300598
$3.59
770
Hex. Screw M6 X 70
207067060
$5.61
780
Stainless Flat Washer M6
234061600
$0.33
790
Nut Flange Elastic M6
233261200
$0.99
800
LH Rear Rail Support
281300439
$39.99
810
RH Rear Rail Support
281300441
$39.99
812
Socket Head Screw M6 X 65
205066560
$1.90
816
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
816a
Elastic Stop Nut M6, Brass
232561200
$4.23
820
Cleat
291005668
$26.99
830
Hex. Screw M8 X 60, Scotch Grip
250000187
$4.44
835
Stainless, Flat Washer 8 mm
234081600
$0.55
850
Rear Profiled Tube
281300172
$104.99
860
Truss Cone Torx Screw M6 X 30
250000924
$7.51
865
Stainless Flat Washer M6
234061600
$0.33
870
Elastic Stop Nut M6, Brass
232561200
$4.23
880
Interior End Piece
281300244
$30.99
890
Exterior Cover
281300247
$25.99
900
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
910
RH Rear Guard Rail
281300784
$219.99
915
RH Latch Stopper
281300783
$7.39
920
Cone Torx Truss Screw HD.M6 X 30
250001146
$3.91
930
RH Rear Balustrade
281300772
$244.99
932
Fastener Snap
293730102
$4.79
935
Pop RIvet 1/8 X ,375
293150285
$0.33
940
Rear Balustrade Fastener
281300598
$3.59
970
Hex. Screw M6 X 70
207067060
$5.61
980
Stainless Flat Washer M6
234061600
$0.33
990
Nut Flange Elastic M6
233261200
$0.99
1000
LH Rail Support
281300241
$39.99
1010
RH Rail Support
281300237
$39.99
1012
Socket Head Screw M6 X 65
205066560
$1.90
1016
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
1016a
Elastic Stop Nut M6, Brass
232561200
$4.23
1040
Central Profiled Tube
281300180
$39.99
1050
Truss Cone Torx Screw M6 X 30
250000924
$7.51
1055
Stainless Flat Washer M6
234061600
$0.33
1060
Elastic Stop Nut M6, Brass
232561200
$4.23
1070
Interior End Piece
281300244
$30.99
1080
Exterior Cover
281300247
$25.99
1090
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
1100
Lateral Hand Rail
281300190
$224.99
1110
Cone Torx Truss Screw HD.M6 X 30
250001146
$3.91
1130
Cone Torx Truss Screw HD.M6 X 30
250001146
$3.91
1150
Lower Rear Profile Tube
281300176
$104.99
1160
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
1170
Balustrade Anchor
281300811
$7.39
2000
LH Rail Support
281300241
$39.99
2010
RH Rail Support
281300237
$39.99
2012
Socket Head Screw M6 X 65
205066560
$1.90
2016
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2016a
Elastic Stop Nut M6, Brass
232561200
$4.23
2040
Central Profiled Tube
281300180
$39.99
2050
Truss Cone Torx Screw M6 X 30
250000924
$7.51
2055
Stainless Flat Washer M6
234061600
$0.33
2060
Elastic Stop Nut M6, Brass
232561200
$4.23
2070
Interior End Piece
281300244
$30.99
2080
Exterior Cover
281300247
$25.99
2090
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2100
Lateral Hand Rail
281300190
$224.99
2110
Cone Torx Truss Screw HD.M6 X 30
250001146
$3.91
2130
Cone Torx Truss Screw HD.M6 X 30
250001146
$3.91
2150
Lower Rear Profile Tube
281300176
$104.99
2160
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2170
Balustrade Anchor
281300811
$7.39
2200
LH Rail Support
281300241
$39.99
2210
RH Rail Support
281300237
$39.99
2212
Socket Head Screw M6 X 65
205066560
$1.90
2216
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2216a
Elastic Stop Nut M6, Brass
232561200
$4.23
2240
Central Profiled Tube
281300307
$39.99
2250
Truss Cone Torx Screw M6 X 30
250000924
$7.51
2255
Stainless Flat Washer M6
234061600
$0.33
2260
Elastic Stop Nut M6, Brass
232561200
$4.23
2270
Interior End Piece
281300244
$30.99
2280
Exterior Cover
281300247
$25.99
2290
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2300
Lateral Hand Rail
281300190
$224.99
2310
Cone Torx Truss Screw HD.M6 X 30
250001146
$3.91
2330
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2350
Lower Rear Profile Tube
281300176
$104.99
2360
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2370
Balustrade Anchor
281300811
$7.39
2400
LH Rail Support
281300241
$39.99
2410
RH Rail Support
281300237
$39.99
2412
Socket Head Screw M6 X 65
205066560
$1.90
2416
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2416a
Elastic Stop Nut M6, Brass
232561200
$4.23
2440
Central Profiled Tube
281300307
$39.99
2450
Truss Cone Torx Screw M6 X 30
250000924
$7.51
2455
Stainless Flat Washer M6
234061600
$0.33
2460
Elastic Stop Nut M6, Brass
232561200
$4.23
2470
Interior End Piece
281300244
$30.99
2480
Exterior Cover
281300247
$25.99
2490
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2500
Lateral Hand Rail
281300190
$224.99
2510
Cone Torx Truss Screw HD.M6 X 30
250001146
$3.91
2530
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2550
Lower Rear Profile Tube
281300176
$104.99
2560
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2570
Balustrade Anchor
281300811
$7.39
2600
LH Rail Support
281300241
$39.99
2610
RH Rail Support
281300237
$39.99
2612
Socket Head Screw M6 X 65
205066560
$1.90
2616
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2616a
Elastic Stop Nut M6, Brass
232561200
$4.23
2620
Cleat
291005668
$26.99
2630
Hex. Screw M8 X 60, Scotch Grip
250000187
$4.44
2635
Stainless, Flat Washer 8 mm
234081600
$0.55
2650
Front Profiled Tube
281300182
$39.99
2660
Truss Cone Torx Screw M6 X 30
250000924
$7.51
2665
Stainless Flat Washer M6
234061600
$0.33
2670
Elastic Stop Nut M6, Brass
232561200
$4.23
2680
Interior End Piece
281300244
$30.99
2690
Exterior Cover
281300247
$25.99
2700
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2710
LH Front Side Hand Rail
281300797
$229.99
2715
Black, Dart
414644300
$0.98
2720
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2740
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2760
Lower Profile Tube
281300178
$89.99
2770
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2775
Balustrade Anchor
281300811
$7.39
2780
LH Side Balustrade Ass'y
281300712
$519.99
2800
LH Rail Support
281300241
$39.99
2810
RH Rail Support
281300237
$39.99
2812
Socket Head Screw M6 X 65
205066560
$1.90
2816
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2816a
Elastic Stop Nut M6, Brass
232561200
$4.23
2820
Cleat
291005668
$26.99
2830
Hex. Screw M8 X 60, Scotch Grip
250000187
$4.44
2835
Stainless, Flat Washer 8 mm
234081600
$0.55
2850
Front Profiled Tube
281300182
$39.99
2860
Truss Cone Torx Screw M6 X 30
250000924
$7.51
2865
Stainless Flat Washer M6
234061600
$0.33
2870
Elastic Stop Nut M6, Brass
232561200
$4.23
2880
Interior End Piece
281300244
$30.99
2890
Exterior Cover
281300247
$25.99
2900
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2910
RH Front Side Hand Rail
281300793
$229.99
2915
Black, Dart
414644300
$0.98
2920
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2940
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2960
Lower Profile Tube
281300178
$89.99
2970
Cone Torx Truss Screw HD.M6 X 15
250001147
$3.70
2975
Balustrade Anchor
281300811
$7.39
2980
RH Side Balustrade Ass'y
281300713
$549.99
2990
Balustrade Support
281300506
$7.59
2995
Velcro Strip 150MM
293740076
$12.49
3000
Support Label
281300852
$42.99
3010
Ornit Rivet 6,4 X 15.6
293150284
$4.44
