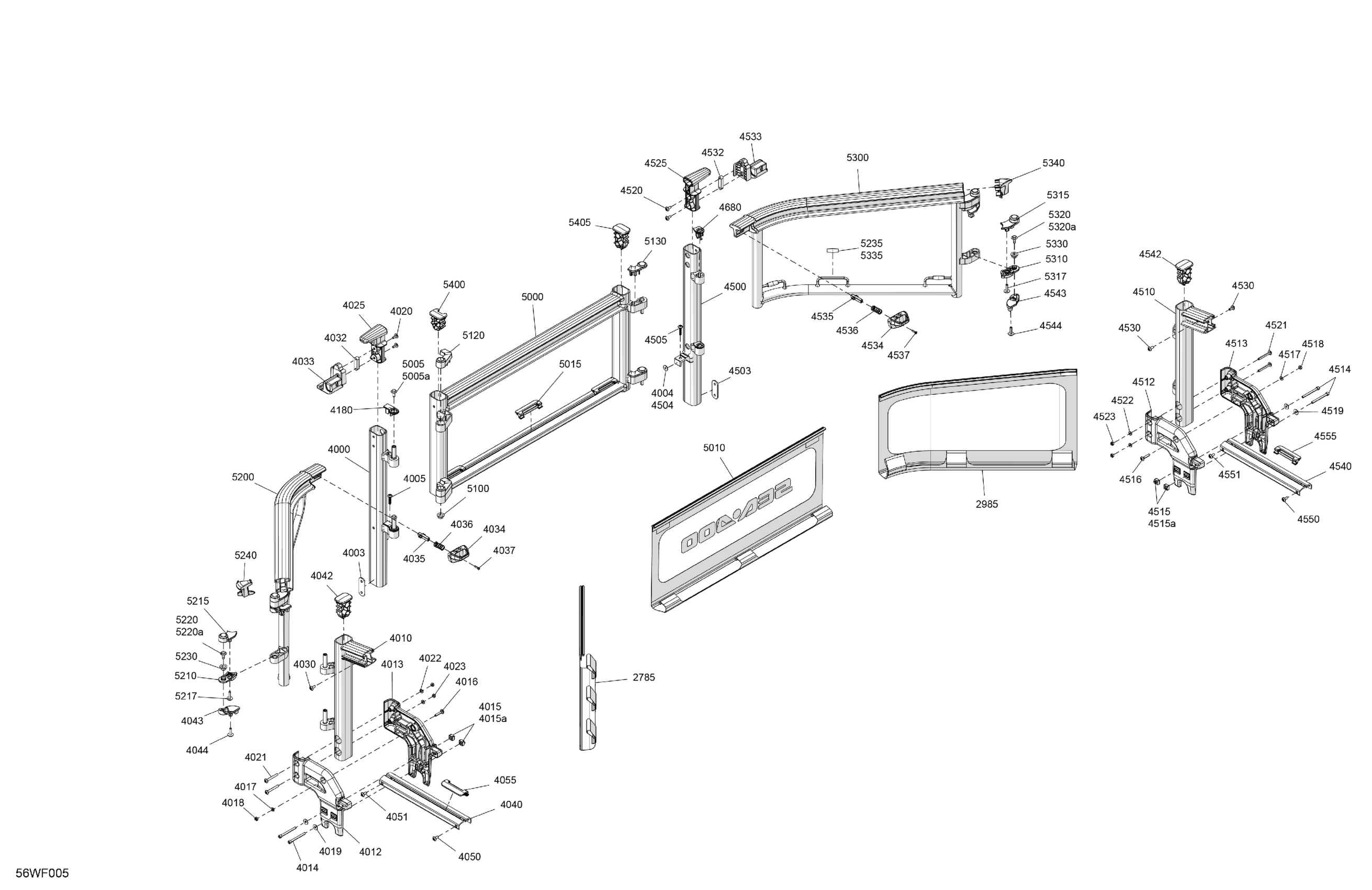

Sea-doo FISH 18 - 230 - 53TA - Olive Night - Trailer Galv - CAT-2-375-101 - 2026 GUARD RAILS - Front Diagram

#

Description
Price

2785

LH Front Balustrade Ass'y

281300647

$124.99

2985

RH Front Balustrade Ass'y

281300649

$549.99

4000

LH Front Profiled Tube

281300714

$89.99

4003

Connecting Plate

291005950

$13.49

4004

Flat Washer M6, Stainless

234062600

$0.77

4005

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

4010

LH Profiled Tube

281300613

$88.99

4012

LH Rail Support

281300657

$38.99

4013

RH Rail Support

281300660

$38.99

4014

Socket Head Screw M6 X 65

205066560

$1.90

4015

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

4015a

Elastic Stop Nut M6, Brass

232561200

$4.23

4016

Truss Cone Torx Screw M6 X 30

250000924

$7.51

4017

Stainless Flat Washer M6

234061600

$0.33

4018

Elastic Stop Nut M6, Brass

232561200

$4.23

4019

Flat Washer M6, Stainless

234062600

$0.77

4020

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

4021

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

4022

Stainless Flat Washer M6

234061600

$0.33

4023

Elastic Stop Nut M6, Brass

232561200

$4.23

4025

Front Handle

281300775

$91.99

4030

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

4032

Lock Plate

281300877

$18.49

4033

Door Stopper

281300633

$18.49

4034

Latch Stopper

281300634

$18.49

4035

Front Latch Stopper

281300798

$18.49

4036

Tension Spring

281300840

$18.49

4037

Flange Torx Screw K40 X 16

250000287

$2.11

4040

Lower Profiled Tube

281300611

$88.99

4042

Oblong Plug

281300278

$8.69

4043

LH Lower Hinge

281300776

$18.49

4044

Hexagonal Cap Screw M6 X 25

250000978

$4.44

4050

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

4051

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

4055

Balustrade Anchor

281300811

$7.39

4180

LH Lower Cap

281300311

$18.49

4500

RLH Front Profiled Tube

281300715

$104.99

4503

Connecting Plate

291005950

$13.49

4504

Flat Washer M6, Stainless

234062600

$0.77

4505

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

4510

RH Profiled Tube

281300637

$88.99

4512

LH Rail Support

281300657

$38.99

4513

RH Rail Support

281300660

$38.99

4514

Socket Head Screw M6 X 65

205066560

$1.90

4515

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

4515a

Elastic Stop Nut M6, Brass

232561200

$4.23

4516

Truss Cone Torx Screw M6 X 30

250000924

$7.51

4517

Stainless Flat Washer M6

234061600

$0.33

4518

Elastic Stop Nut M6, Brass

232561200

$4.23

4519

Flat Washer M6, Stainless

234062600

$0.77

4520

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

4521

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

4522

Stainless Flat Washer M6

234061600

$0.33

4523

Elastic Stop Nut M6, Brass

232561200

$4.23

4525

Front Handle

281300775

$91.99

4530

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

4532

Lock Plate

281300877

$18.49

4533

RH Latch Stopper

281300799

$18.49

4534

Latch Stopper

281300634

$18.49

4535

Front Latch Stopper

281300798

$18.49

4536

Tension Spring

281300840

$18.49

4537

Flange Torx Screw K40 X 16

250000287

$2.11

4540

Lower Profiled Tube

281300611

$88.99

4542

Oblong Plug

281300278

$8.69

4543

RH Lower Hinge

281300778

$18.49

4544

Hexagonal Cap Screw M6 X 25

250000978

$4.44

4550

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

4551

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

4555

Balustrade Anchor

281300811

$7.39

4680

RH Lower Cap

281300312

$18.49

5000

Front Door Service Kit

295101538

Unavailable

5005

Hex Screw M6 X 20

250000965

$2.11

5005a

Not Available As Spare Parts

XXX

Unavailable

5010

Front Balustrade Ass'y

281300844

$124.99

5015

Balustrade Anchor

281300811

$7.39

5100

Venturi Bushing

293900007

$5.45

5120

LH Upper Cap

281300309

$18.49

5130

RH Upper Cap

281300310

$18.49

5200

LH Front Door Service Kit

295101403

$144.99

5210

LH Upper Hinge

281300777

$18.49

5215

LH In Cover

281300625

$18.49

5216

LH In Cover | Not Shown

281300878

$18.49

5217

Hexagonal Cap Screw M6 X 25

250000978

$4.44

5220

Hex Screw M6 X 20

250000965

$2.11

5220a

Not Available As Spare Parts

XXX

Unavailable

5230

Venturi Bushing

293900007

$5.45

5235

Rear Balustrade Fastener

281300598

$3.59

5240

LH Front End Piece

281300835

$18.49

5300

RH Front Door Service Kit

295101404

$144.99

5310

RH Upper Hinge

281300779

$18.49

5315

RH In Cover

281300628

$18.49

5316

RH In Cover | Not Shown

281300879

$18.49

5317

Hexagonal Cap Screw M6 X 25

250000978

$4.44

5320

Hex Screw M6 X 20

250000965

$2.11

5320a

Not Available As Spare Parts

XXX

Unavailable

5330

Venturi Bushing

293900007

$5.45

5335

Rear Balustrade Fastener

281300598

$3.59

5340

RH Front End Piece

281300836

$18.49

5400

Oblong Plug

281300841

$8.49

5405

Oblong Plug

281300278

$8.69
