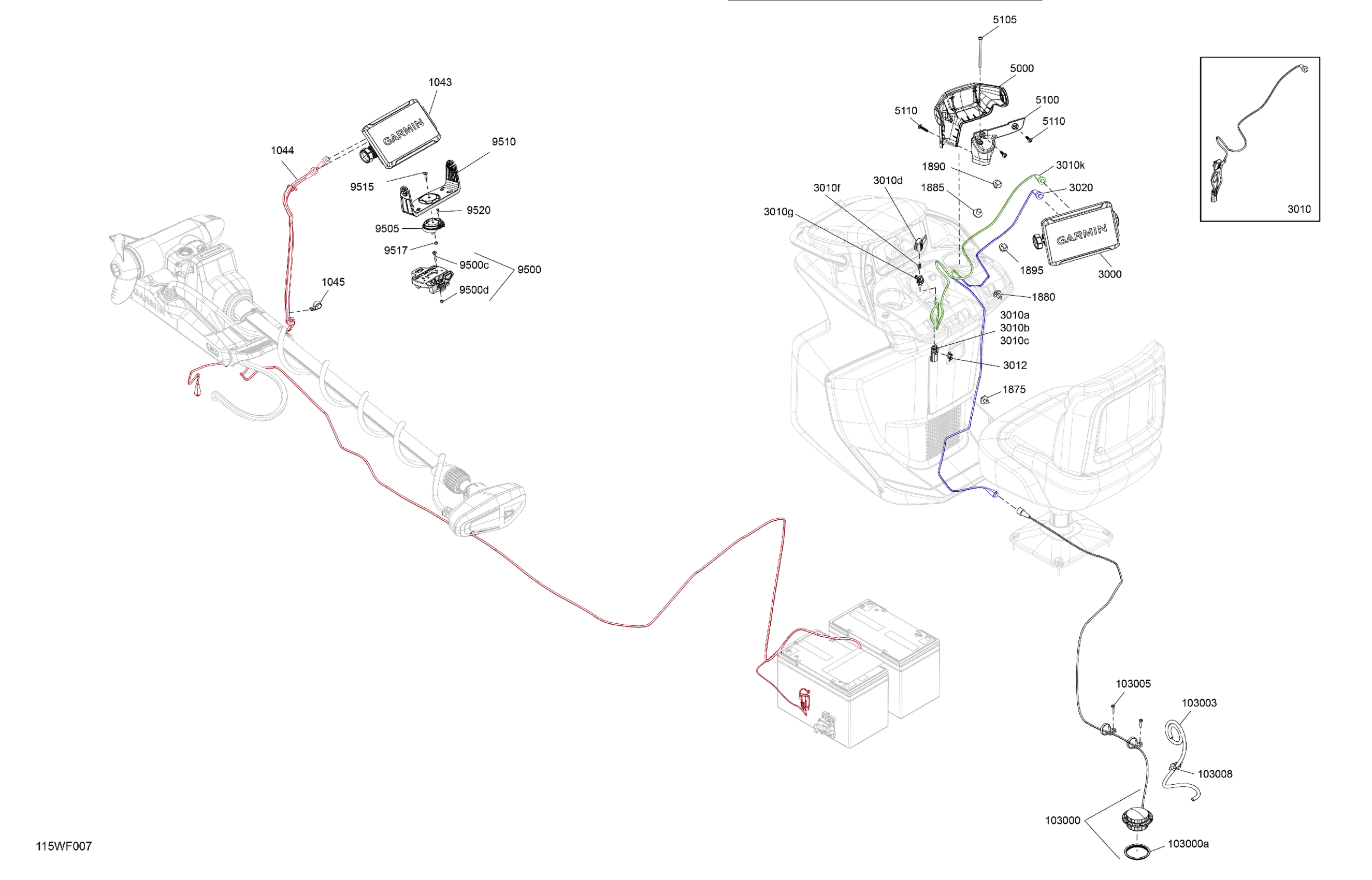

Sea-doo North America - FISH 18 - 230 - 53TA - Olive Night - Trailer Galv - CAT-2-375-101 - 2026 08- ELECTRIC - Garmin ECHOMAP UHD 72sv GPS Diagram

Description

Price

1043

GPS Receiver

278004783

$1.00

1044

Echo Sounder Wiring Harness

278004599

$109.99

1045

Clamp

278004679

$15.49

1875

Mount Dart

710008294

$1.04

1880

Mount Dart

710008294

$1.04

1885

Mount Dart

710008294

$1.04

1890

Mount Dart

710008294

$1.04

1895

Mount Dart

710008294

$1.04

3000

GPS Receiver

278004783

$1.00

3010

Echo Sounder Wiring Harness | Includes 3010 to 3010k

278003974

$94.99

3010a

Housing

515178023

$14.74

3010b

Sealing Cap

278002860

$1.79

3010c

Male Terminal

515178013

$3.19

3010d

Cover

710002793

$4.79

3010f

Little Fuse, 3 AMP

710001008

$3.79

3010g

Housing

710002791

$4.69

3010h

Wire Seal

278001065

$7.69

3010j

Female Terminal

710000918

$7.69

3010k

Power Supply Cable

278003975

$46.99

3012

Clip Connector

515178223

$2.09

3020

Echo sounder Wiring Harness

278003982

$109.99

5000

Rear GPS Support

281000213

$26.99

5100

Front GPS Support

281000214

$14.49

5105

Cone Torx Truss Screw HD.M6 X 100

250001163

$3.91

5110

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

9500

Rod Support Kit | Includes 9500 to 9500d

295101308

$106.99

9500c

Truss Cone Torx Screw M6 X 30

250000924

$7.51

9500d

Elastic Stop Nut M6, Brass

232561200

$4.23

9505

GPS Base Support

269801787

$13.77

9510

Front GPS Support

269801786

$57.99

9515

Torx-Truss M/S Stlss M6 X 20

250000829

$3.35

9517

Elastic Stop Nut M6, Brass

232561200

$4.23

9520

Flange Torx Screw K40 X 16

250000287

$2.11

103000

Transducer | Includes 103000 to 103000a

278003914

$566.49

103000a

Seal

292002447

$3.27

103003

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

103005

Hex. Screw 10-14 X 7/8”

211000023

$3.59

103008

Mount Dart

710008294

$1.04
