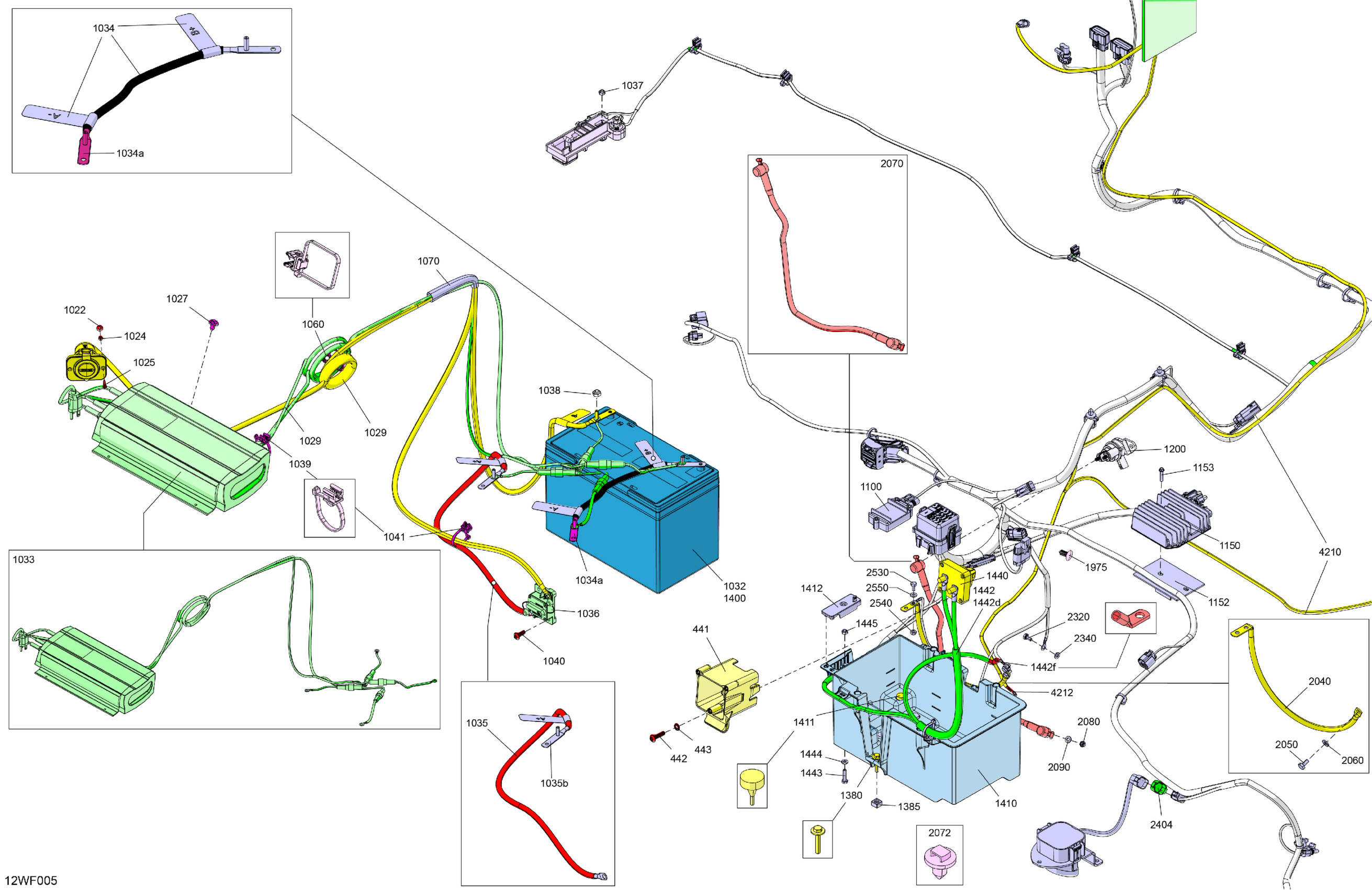

Sea-doo FISH 18 - 230 - 53TA - Olive Night - Trailer Galv - CAT-2-375-101 - 2026 ELECTRIC - Electric Lower Section Diagram

#

Description
Price

441

Switch Support

278004308

$16.39

442

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

443

Sealing Washer

250200114

$4.15

1022

Flat Washer 4 mm, Stainless

234042600

$1.06

1024

Elastic Stop Nut M4

232541200

$2.00

1025

Black, Socket Head Screw M4 X 16

250001011

$1.40

1027

Mount Dart

710008294

$0.99

1029

24V Power Outlet Wiring Harness

278004468

Unavailable

1032

Battery 12 Volt 100Ah

296000465

$388.03

1033

Battery Charger

278004724

Unavailable

1034

Negative Cable | Includes 1034 to 1034a

278004197

Unavailable

1034a

Terminal

710008715

$7.52

1035

Circuit Breaker Cable | Includes 1035 to 1035c

278004250

Unavailable

1035b

Terminal

710008715

$7.52

1035c

Protector Cap

710000393

$8.72

1036

Circuit Breaker

278004252

Unavailable

1037

Elastic Stop Nut M6, Brass

232561200

$4.03

1038

Stainless, Flat Washer 8 mm

234081600

$0.52

1039

Tie Wrap Clip

293750111

$13.49

1040

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

1041

Tie Wrap Clip

293750111

$13.49

1060

Anchorage Tie Wrap

293750103

$4.27

1070

Barandilla Braided 25.4 Id 2000 Mm

219704619

Unavailable

1100

Gateway Can Module

204471484

$191.76

1150

Voltage Regulator

710010540

$183.55

1152

Machined Heat Sink

278004853

Unavailable

1153

Hex. Flanged Pt Screw K50 X 30

241153060

$2.00

1200

Starter Relay

278003012

$40.27

1380

Hex Screw SEMS M6X35, SS

250000969

$2.00

1385

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

1400

Battery 12 Volt 100Ah

296000465

$388.03

1410

Battery Support

278004647

$72.36

1411

Seat Stopper

708003866

$4.15

1412

Positive Terminal Cap

710008598

$10.28

1440

Switch

278004300

$67.13

1442

Battery Wiring Harness | Includes 1442 to 1442g

278004656

Unavailable

1442d

Shrink Tubing, 6 mm

515177246

$0.99

1442f

OPEN BARREL - Call your local BRP dealership

710000538

Unavailable

1442g

Mount Dart

293730040

$0.99

1443

Hex. Screw M6 X 25

207162560

$1.40

1444

Stainless Flat Washer M6

234061600

$0.28

1445

Elastic Stop Nut M6, Brass

232561200

$4.03

1850

Elastic Stop Nut M6, Brass

232561200

$4.03

1975

Black Dart

293730010

$0.93

2040

Negative Cable

278004389

Unavailable

2050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

2060

Stainless Flat Washer M6

234061600

$0.28

2070

Starter Cable

278003369

$35.79

2072

Mount Dart

710008294

$0.99

2080

Elastic Stop Nut M6, Brass

232561200

$4.03

2090

Stainless Flat Washer M6

234061600

$0.28

2320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

2340

Stainless Flat Washer M6

234061600

$0.28

2404

Connector Plug

710004904

$8.30

2530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

2540

Elastic Stop Nut M6, Brass

232561200

$4.03

2550

Stainless Flat Washer M6

234061600

$0.28

4210

Pump Wiring Harness

278004402

Unavailable

4212

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

4213

Stainless Flat Washer M6

234061600

$0.28
