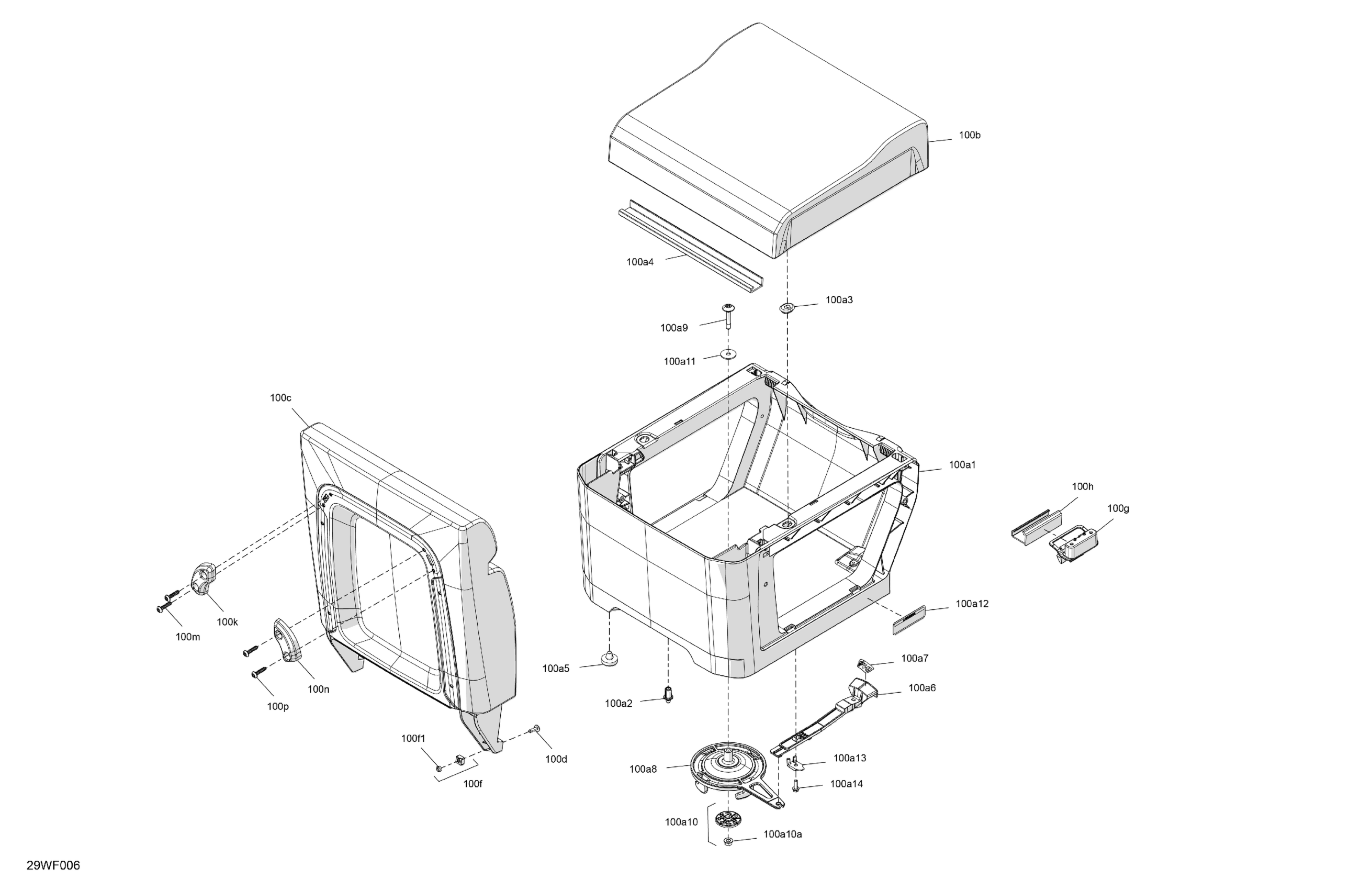

Sea-doo FISH 18 - 230 - 53TA - Olive Night - Trailer Galv - CAT-2-375-101 - 2026 FURNITURE - Single Seat Diagram

Description

Price

100a1

Seat Support Service Kit

295101127

Unavailable

100a2

Locator Rod

269003492

$5.40

100a3

Oval Washer

705000321

$5.33

100a4

Gutter

269003483

$2.61

100a5

Rubber Stopper

269003502

$6.18

100a6

Lever Latch Service Kit

295101126

Unavailable

100a7

Lever Decal

219905993

Unavailable

100a8

Seat Anchorage

269003311

$16.39

100a9

Torx Head M8 X 50 S.GRIP

250001154

$10.10

100a10

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$6.58

100a10a

Hex. Flange Nut M8

233181600

$0.99

100a11

Flat Washer 8 mm

250200130

$3.00

100a12

Seat Anchorage Warning Label

219905883

Unavailable

100a13

Guide

269004160

$9.66

100a14

Hex. Flange Screw M6.81 x 20

243162060

$3.79

100b

Silvertex Titanium, Seat Cushion Ass'y

269003940

Unavailable

100c

Simtex Bottle, Backrest Ass'y

269003941

Unavailable

100d

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$3.33

100f

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

100f1

Elastic Stop Nut M6, Brass

232561200

$4.03

100g

Latch

269802056

Unavailable

100h

Guard Support

269004551

Unavailable

100j

Retaining Strap | Not Shown

281301100

Unavailable

100k

LH Rubber Stopper

269003903

$3.61

100m

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

100n

RH Rubber Stopper

269003904

$3.61

100p

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85
