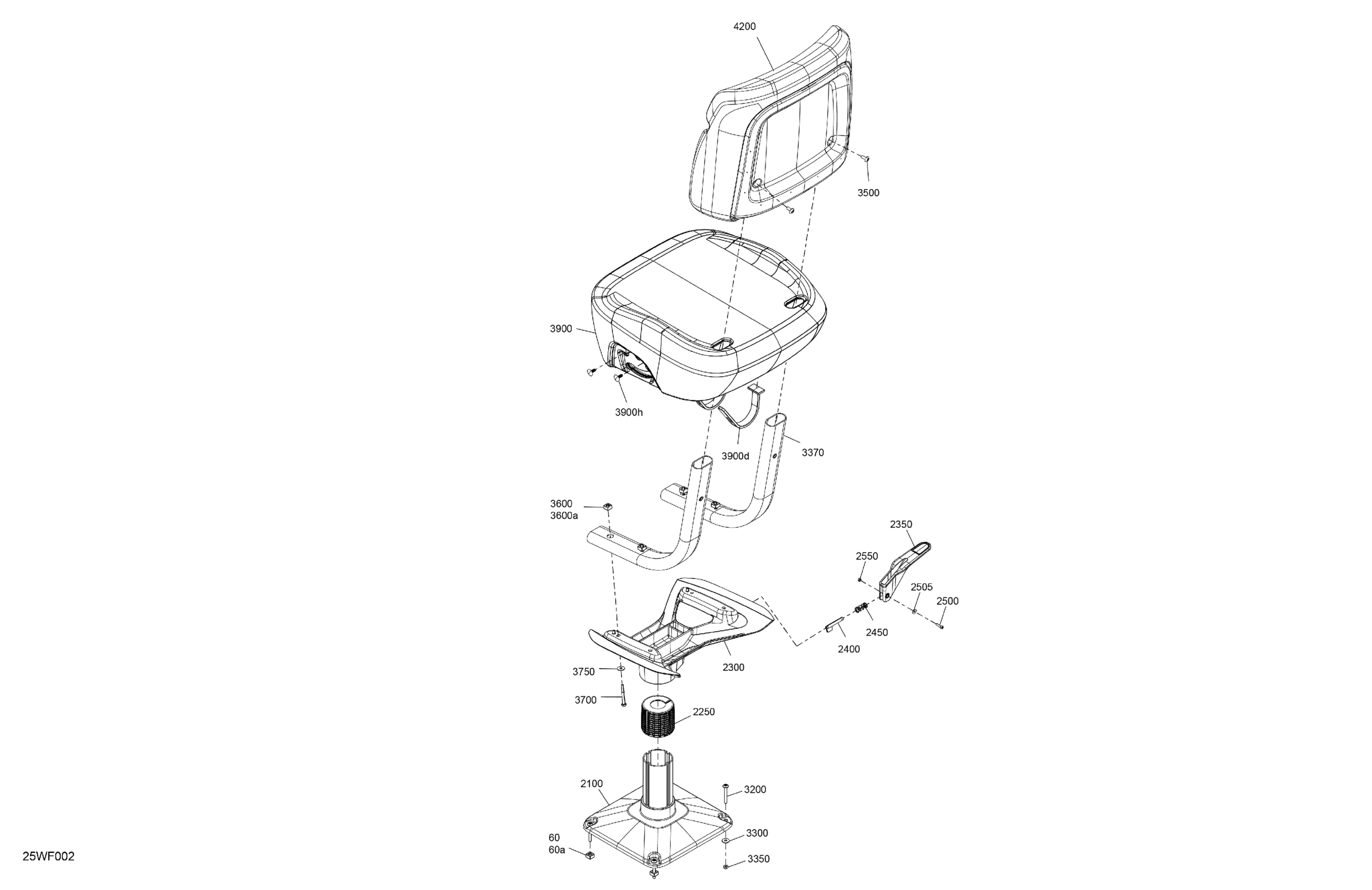

Sea-doo FISH 18 - 230 - 53TA - Olive Night - Trailer Galv - CAT-2-375-101 - 2026 FURNITURE - Driver Seat Diagram

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

Elastic Stop Nut M6, Brass

232561200

$4.03

Seat Anchorage Service Kit

295101108

Unavailable

Sleeve

281000022

$4.58

Seat Support

281000006

$88.99

Seat Latch

281000020

$8.49

Latch Rod

281000051

$26.84

Compression Spring

281000063

$6.19

Black, Socket Head Screw M4 X 16

250001011

$1.40

Flat Washer 4 mm, Stainless

234042600

$1.06

Elastic Stop Nut M4

232541200

$2.00

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

Flat Washer M6, Stainless

234062600

$0.73

Elastic Stop Nut M6, Brass

232561200

$4.03

Backrest Support Ass'y

281000114

$47.73

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

Elastic Stop Nut M6, Brass

232561200

$4.03

Hex. Screw M6 x 55

207065560

$0.96

Flat Washer M6, Stainless

234062600

$0.73

Silvertex Titanium, Seat Cushion Ass'y | Includes 3900 to 3900h

281000226

Unavailable

Strap

269502417

$16.39

Black, Dart

293730011

$0.91

Simtex Bottle, Driver Backres Ass'y

281000230

Unavailable
