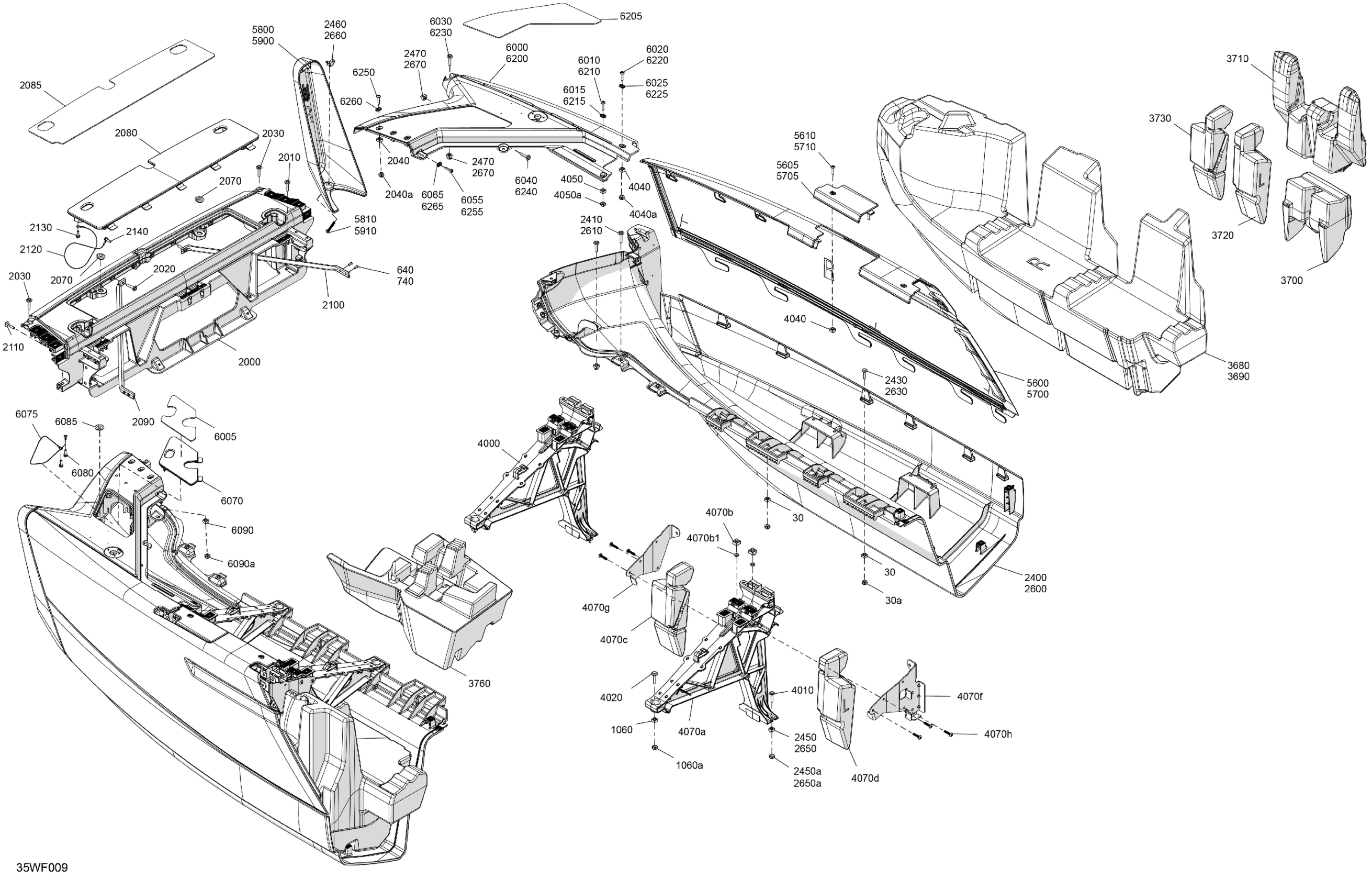

Sea-doo FISH 18 - 230 - 53TA - Olive Night - Trailer Galv - CAT-2-375-101 - 2026 HULL - Front Deflector Float and Front Bumper Diagram

#

Description
Price

30

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

30a

Elastic Stop Nut M6, Brass

232561200

$4.03

640

Pop Rivet 3/16"

293150039

$1.31

740

Pop Rivet 3/16"

293150039

$1.31

1060

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

1060a

Elastic Stop Nut M6, Brass

232561200

$4.03

2000

Deep Black, Deflector Trim

291006557

Unavailable

2010

Hexagonal Cap Screw M6 X35

250000399

$4.15

2020

Hexagonal Cap Screw M6 X35

250000399

$4.15

2030

Hexagonal Cap Screw M6 X35

250000399

$4.15

2040

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2040a

Elastic Stop Nut M6, Brass

232561200

$4.03

2070

Oval Washer

705000321

$5.33

2080

Deep Black, Acces Cover

291006558

Unavailable

2085

Front Central Mat

269801716

Unavailable

2090

LH Trim Reinforcement

291005632

Unavailable

2100

RH Trim Reinforcement

291005640

Unavailable

2110

Hex SEMS Screw M6X30

250001164

Unavailable

2120

Retaining Cable

291005711

Unavailable

2130

Hex. Flange Screw M6.81 x 20

243162060

$3.79

2140

Hex. Flange Screw M6.81 x 20

243162060

$3.79

2400

LH Front Float Deflector

291006412

$1,013.40

2410

Hexagonal Cap Screw M6 X35

250000399

$4.15

2430

Hex Screw SEMS M6X35, SS

250000969

$2.00

2450

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2450a

Elastic Stop Nut M6, Brass

232561200

$4.03

2460

Plastite Insert 6.81

291006420

Unavailable

2470

Platite Insert 6.81

291005889

Unavailable

2600

RH Float Deflector

291006413

$992.51

2610

Hexagonal Cap Screw M6 X35

250000399

$4.15

2630

Hex Screw SEMS M6X35, SS

250000969

$2.00

2650

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2650a

Elastic Stop Nut M6, Brass

232561200

$4.03

2660

Plastite Insert 6.81

291006420

Unavailable

2670

Platite Insert 6.81

291005889

Unavailable

3680

LH Front Float

292002789

$295.49

3690

RH Front Float

292002790

$295.49

3700

Lower Float Support

291005639

Unavailable

3710

Upper Float Support

291005845

Unavailable

3720

LH Float Support

291005637

Unavailable

3730

RH Float Support

291005636

Unavailable

3760

Foam Support

291006268

Unavailable

4000

Interlocking Tile Support

291004895

Unavailable

4010

Hex Screw SEMS M6X35, SS

250000969

$2.00

4020

Hex Screw SEMS M6X35, SS

250000969

$2.00

4040

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

4040a

Elastic Stop Nut M6, Brass

232561200

$4.03

4050

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

4050a

Elastic Stop Nut M6, Brass

232561200

$4.03

4070a

Interlocking Tile Support

291004895

Unavailable

4070b

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

4070b1

Elastic Stop Nut M6, Brass

232561200

$4.03

4070c

RH Float Support

291005636

Unavailable

4070d

LH Float Support

291005637

Unavailable

4070f

Machined Support Reinforcement

291006538

Unavailable

4070g

Machined Support Reinforcement

291006539

Unavailable

4070h

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

5600

Olive Night, LH Front Panel

291006262

Unavailable

5605

Olive Night, LH Front Panel Trim

291006264

Unavailable

5610

Screw Torx Truss Head M6 X 30

250001381

$3.90

5700

Olive Night, RH Front Panel

291006263

Unavailable

5705

Olive Night, RH Front Panel Trim

291006266

Unavailable

5710

Screw Torx Truss Head M6 X 30

250001381

$3.90

5800

Deep Black, LH Front Bumper

291006555

Unavailable

5810

Screw-Plastite Torx Cone Head M6.81 X 60

250001004

$4.54

5900

Deep Black, RH Front Bumper

291006556

Unavailable

5910

Screw-Plastite Torx Cone Head M6.81 X 60

250001004

$4.54

6000

Olive Night, LH Front Panel Trim

291006188

Unavailable

6005

LH Front Mat

269004161

Unavailable

6010

Screw Torx Truss Head M6 X 30

250001381

$3.90

6015

Oval Washer

291003880

$1.36

6020

Screw Torx Truss Head M6 X 30

250001381

$3.90

6025

Oval Washer

291003880

$1.36

6030

Hexagonal Cap Screw M6 X35

250000399

$4.15

6040

Hexagonal Cap Screw M6 X35

250000399

$4.15

6055

Screw Torx Truss Head M6 X 30

250001381

$3.90

6065

Oval Washer

291003880

$1.36

6070

Access Door

291006265

Unavailable

6075

Retaining Cable

291006659

Unavailable

6080

Hex. Flange Screw M6.81 x 20

243162060

$3.79

6085

Oval Washer

705000321

$5.33

6090

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

6090a

Elastic Stop Nut M6, Brass

232561200

$4.03

6200

Olive Night, RH Front Panel Trim

291006399

Unavailable

6205

RH Front Mat

269004162

Unavailable

6210

Screw Torx Truss Head M6 X 30

250001381

$3.90

6215

Oval Washer

291003880

$1.36

6220

Screw Torx Truss Head M6 X 30

250001381

$3.90

6225

Oval Washer

291003880

$1.36

6230

Hexagonal Cap Screw M6 X35

250000399

$4.15

6240

Hexagonal Cap Screw M6 X35

250000399

$4.15

6250

Screw Torx Truss Head M6 X 30

250001381

$3.90

6255

Screw Torx Truss Head M6 X 30

250001381

$3.90

6260

Oval Washer

291003880

$1.36

6265

Oval Washer

291003880

$1.36
