05- HULL - Frame

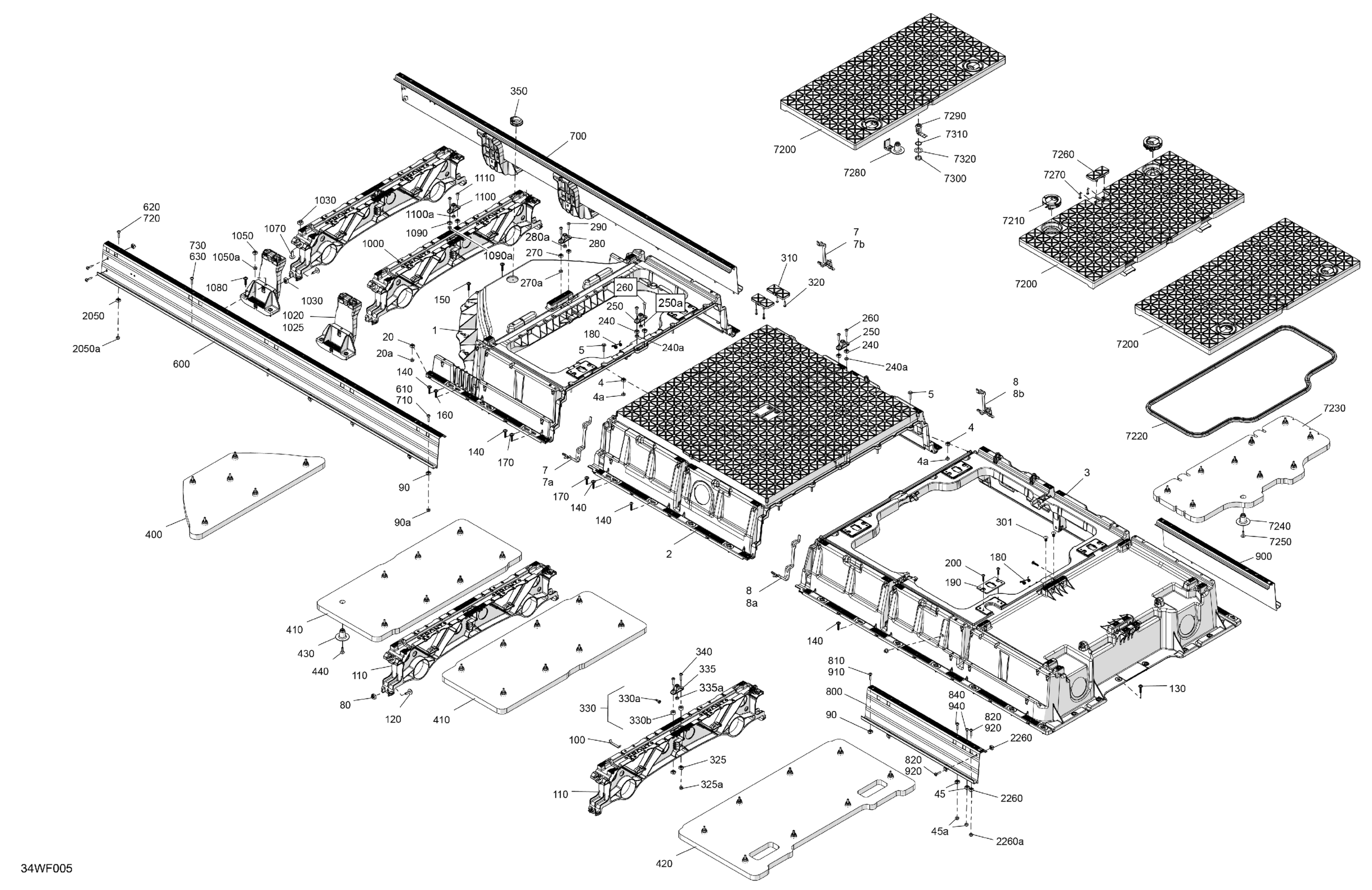

Sea-doo North America - FISH 18 - 230 - 53TA - Olive Night - Trailer Galv - CAT-2-375-101 - 2026 05- HULL - Frame Diagram
#
1
Front Chassis
291006440
$519.99
2
Central Chassis
291004648
$789.99
3
Rear Frame Service Kit
295101120
$639.99
4
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
4a
Elastic Stop Nut M6, Brass
232561200
$4.23
5
Hex Screw SEMS M6X35, SS
250000969
$2.11
7
Gasket Kit | Includes 7 to 7b
295501261
$7.09
7a
Not Available As Spare Parts
XXX
Unavailable
7b
Not Available As Spare Parts
XXX
Unavailable
8
Gasket Kit | Includes 7 to 7b
295501261
$7.09
8a
Not Available As Spare Parts
XXX
Unavailable
8b
Not Available As Spare Parts
XXX
Unavailable
20
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
20a
Elastic Stop Nut M6, Brass
232561200
$4.23
45
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
45a
Elastic Stop Nut M6, Brass
232561200
$4.23
80
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
90
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
90a
Elastic Stop Nut M6, Brass
232561200
$4.23
100
Gasket 3000Mm Long
219704378
$26.49
110
Crossmember
291004980
$119.99
120
Hexagonal Screw M8 X 30
250000888
$3.17
130
Hexagonal Cap Screw M6 X35
250000399
$4.44
140
Hexagonal Cap Screw M6 X35
250000399
$4.44
150
Hexagonal Cap Screw M6 X35
250000399
$4.44
160
Hexagonal Cap Screw M6 X35
250000399
$4.44
170
Hexagonal Cap Screw M6 X35
250000399
$4.44
180
Torsion Spring
291005695
$10.49
190
Lock Plate
291006507
$2.69
200
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
240
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
240a
Elastic Stop Nut M6, Brass
232561200
$4.23
250
Table Anchorage | Includes 250 to 250a
291005631
$7.89
250a
Hex Nut M8
232081200
$1.26
260
Screw Torx Truss Head M6 X 30
250001381
$4.12
270
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
270a
Elastic Stop Nut M6, Brass
232561200
$4.23
280
Table Anchorage | Includes 250 to 250a
291005631
$7.89
280a
Hex Nut M8
232081200
$1.26
290
Screw Torx Truss Head M6 X 30
250001381
$4.12
301
Black Dart
293730010
$0.99
310
Double Tile Cap
291005630
$6.29
320
Hex. Screw 10-14 X 7/8”
211000023
$3.59
325
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
325a
Elastic Stop Nut M6, Brass
232561200
$4.23
330
Roller Bushing Kit | Includes 240 to 240b
295501160
$4.29
330a
Screw-Socket Shoulder M8X8
250000775
$8.29
330b
Roller Bushing Kit | Includes 240 to 240b
295501160
$4.29
335
Table Anchorage | Includes 250 to 250a
291005631
$7.89
335a
Hex Nut M8
232081200
$1.26
340
Screw Torx Truss Head M6 X 30
250001381
$4.12
350
Cable Grommet
293720092
$13.49
400
Front Chassis Acoustic Insulation
291005476
$40.99
410
Central Chassis Acoustic Insulation
291005477
$70.99
420
Rear Chassis Acoustic Insulation
291005478
$70.99
430
Fastener
291005474
$3.49
440
Hexagonal Cap Screw M6 X 25
250000978
$4.44
600
Side Member 205 CM
291005225
$264.99
610
Truss Cone Torx Screw M6 X 30
250000924
$7.51
620
Truss Cone Torx Screw M6 X 30
250000924
$7.51
630
Truss Cone Torx Screw M6 X 30
250000924
$7.51
700
Side Member 205 CM
291005226
$264.99
710
Truss Cone Torx Screw M6 X 30
250000924
$7.51
720
Truss Cone Torx Screw M6 X 30
250000924
$7.51
730
Truss Cone Torx Screw M6 X 30
250000924
$7.51
800
Side Member 68 CM
291005223
$189.99
810
Truss Cone Torx Screw M6 X 30
250000924
$7.51
820
Truss Cone Torx Screw M6 X 30
250000924
$7.51
840
Truss Cone Torx Screw M6 X 30
250000924
$7.51
900
Side Member 68 CM
291005224
$189.99
910
Truss Cone Torx Screw M6 X 30
250000924
$7.51
920
Truss Cone Torx Screw M6 X 30
250000924
$7.51
940
Truss Cone Torx Screw M6 X 30
250000924
$7.51
1000
Crossmember
291004980
$119.99
1020
LH Cross Member Support
291005384
$33.99
1025
RH Cross Member Support
291006024
$31.99
1030
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
1050
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
1050a
Elastic Stop Nut M6, Brass
232561200
$4.23
1070
Hexagonal Screw M8 X 30
250000888
$3.17
1080
Hexagonal Cap Screw M6 X35
250000399
$4.44
1090
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
1090a
Elastic Stop Nut M6, Brass
232561200
$4.23
1100
Table Anchorage | Includes 250 to 250a
291005631
$7.89
1100a
Hex Nut M8
232081200
$1.26
1110
Screw Torx Truss Head M6 X 30
250001381
$4.12
2050
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2050a
Elastic Stop Nut M6, Brass
232561200
$4.23
2260
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2260a
Elastic Stop Nut M6, Brass
232561200
$4.23
7200
Access Cover
291004653
$229.99
7210
Latch Ass'y
291005473
$28.99
7220
Weather Strip
293250624
$38.99
7230
Acoustic Insulation Cover
291005475
$39.99
7240
Fastener
291005474
$3.49
7250
Hexagonal Cap Screw M6 X 25
250000978
$4.44
7260
Double Tile Cap
291005630
$6.29
7270
Hex. Screw 10-14 X 7/8”
211000023
$3.59
7280
Acces Cover Cone
291006233
$18.99
7290
Lock
269801759
$89.99
7300
Lock Nut
269801760
$17.39
7310
Gasket Lock
269801761
$15.99
7320
Lock Washer
269801762
$6.74
