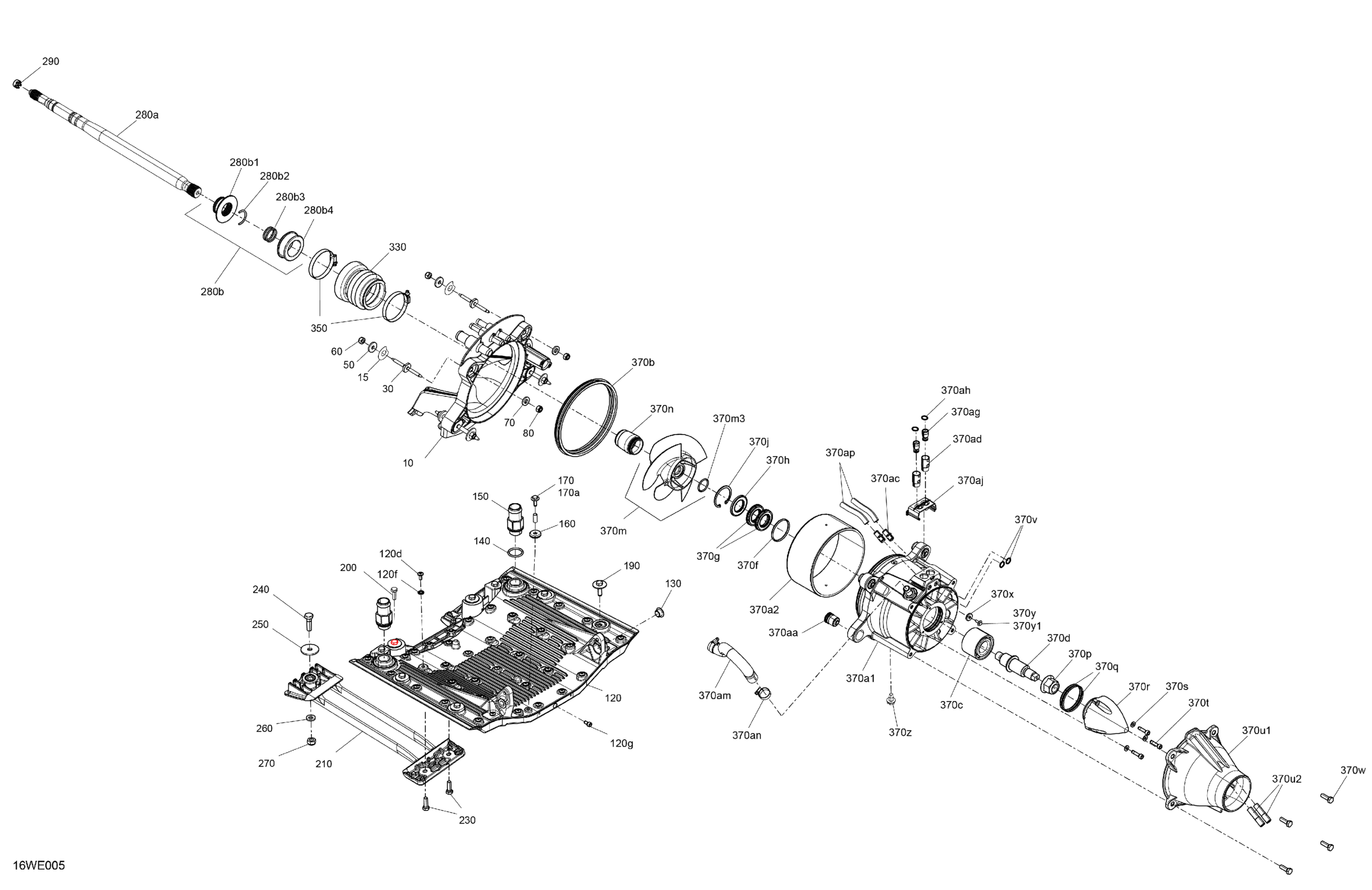

Sea-doo FISH 18 - 230 - 53SC - Olive Night - Trailer Paint - CAT2B - 2025 DRIVE - Propulsion Diagram

#

Description
Price

10

Support Pump

271002291

Unavailable

15

Shim 0.3 mm

272000053

$9.21

30

Stud M8 X 57

250300653

$13.94

50

Flat Washer

279000336

$9.58

60

Hex. Elastic Nut M8 Brass

232581200

$1.48

70

Flat Washer 8 mm, Stainless

250200175

$1.48

80

Hex. Elastic Nut M8 Brass

232581200

$1.48

120

Ride Plate Ass'y | Includes 120 to 120g

271002336

$289.52

120d

Torx Screw M6 X 14

250000384

$7.06

120f

Sealing Washer

250200114

$4.15

120g

Socket Drain Plug M6 X 12

250500005

$13.48

130

Venturi Bushing

293900007

$4.25

140

O-Ring

293300121

$7.09

150

Strait Fitting

293710124

$14.82

160

Anode Zinc

271001920

$13.12

170

Hex Screw M6 X 20

250000965

$2.00

170a

Hex Screw M6 X 20

250000965

$2.00

190

Hex Sems Screw M8 X 30

250000967

$2.70

200

Screw Hex Sems S.Grip M10 X 30

250001268

$16.39

210

Intake Grate Pump

271002402

Unavailable

230

Hex Sems Screw M8 X 25

250000968

$2.70

240

Hexagonal Head Cap Screw M10 X 35

250001159

$1.70

250

Flat Washer

250200194

$5.55

260

Washer Flat M10

250200193

$5.21

270

Elastic Stop Nut M10, Brass

232501200

$2.48

280a

Propeller Shaft

271002224

$249.97

280b

Rotary Ring Kit | Includes 280b to 280b4

295501243

$84.30

280b1

Rotary Ring

271002215

Unavailable

280b2

C-Clip

271001577

$3.07

280b3

O-Ring

293300220

$0.85

280b4

Carbon Ring

271002109

Unavailable

290

Drive Shaft Plug

271002113

$9.61

330

Bellow Ass'y

271002194

$21.61

350

Tridon Clamp

293650179

$10.12

370a1

Machined Impeller Housing

271002286

Unavailable

370a2

Wear Ring

267000917

$79.07

370b

Pump Gasket

271002395

$10.61

370c

Angled Bearing

271002182

$76.09

370d

Impeller Shaft

267000388

$108.18

370f

O-Ring

293300090

$6.85

370g

Seal

271002071

$30.57

370h

Oil Seal

293200089

$17.88

370j

Circlip

293370038

$8.18

370m

Impeller Ass'y | Includes 370m to 370m3

267001085

$462.66

370m3

O-Ring

293300044

$0.99

370n

Guard

271002228

$11.31

370p

Elastic Flange Nut M20

250100104

$11.15

370q

O-Ring

293300086

$3.33

370r

Impeller Cover

267000428

$16.39

370s

Stainless Flat Washer M6

234061600

$0.28

370t

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

370u1

Venturi Anodized

271001999

$36.54

370u2

Siphone Tube

271002369

$1.46

370v

O-Ring

293300013

$6.54

370w

Hex Sems Screw M8 X 25

250000968

$2.70

370x

Anode Zinc

271001920

$13.12

370y

Hex Screw M6 X 20

250000965

$2.00

370y1

Hex Screw M6 X 20

250000965

$2.00

370z

Hex. Screw 10-32 X 3/8", Stainless

204100269

$0.87

370aa

Carter Housing Bushing

271002401

$20.12

370ac

Siphon Tube

267000782

$5.61

370ad

Sleeve

271002328

Unavailable

370ag

Piston

271002327

Unavailable

370ah

O'Ring

293300279

$6.40

370aj

Cover

271002329

Unavailable

370am

Formed Hose

276000553

Unavailable

370an

Gear Clamp

293650284

$4.15

370ap

Hose 11,6 Mm Id X 800

292002962

$9.84
