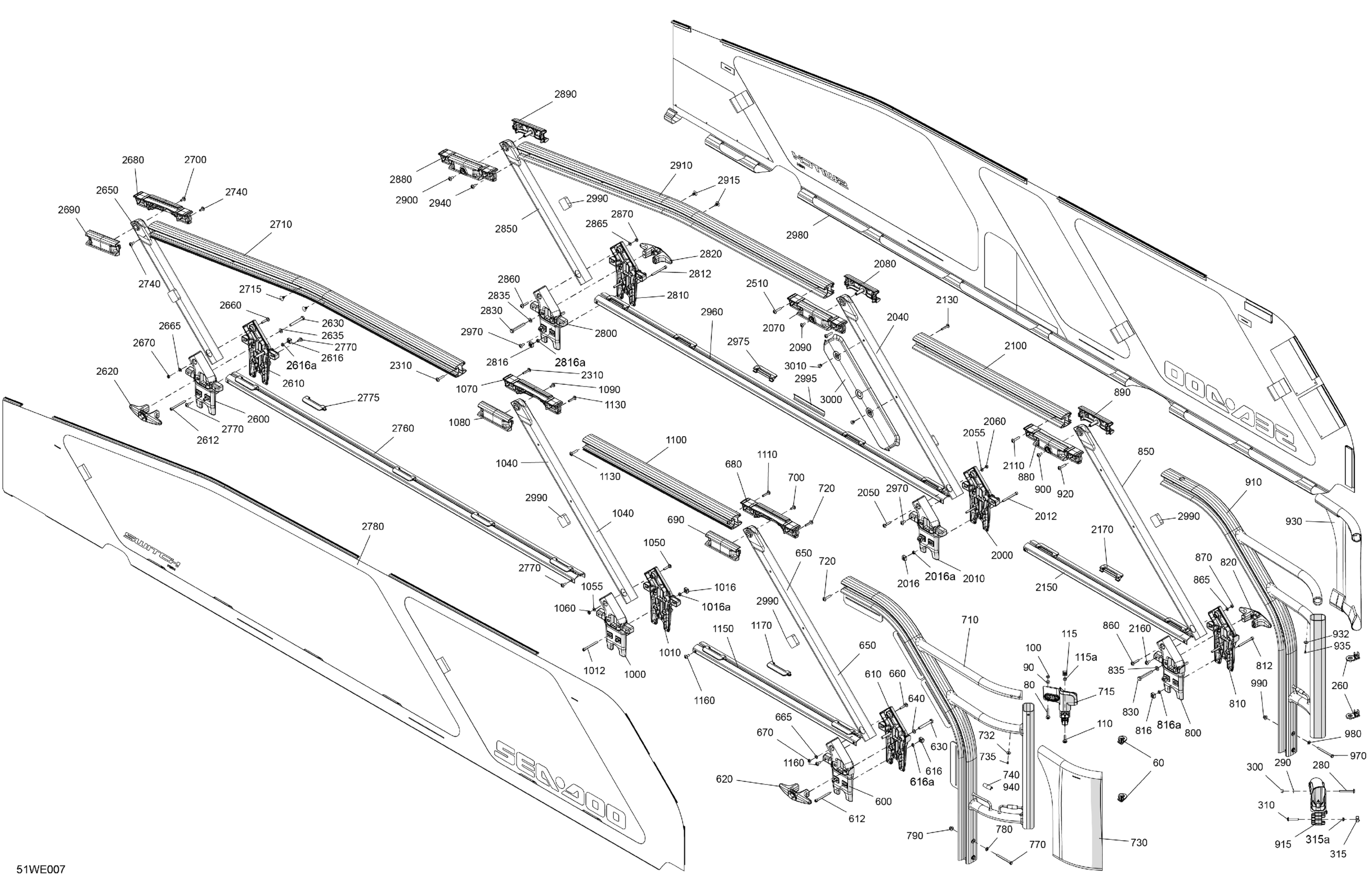

Sea-doo FISH 18 - 170 - 52SG - Olive Night - Trailer Paint - CAT2B - 2025 GUARD RAILS - System Assembly Diagram

#

Description
Price

60

LH Rear Molded Spacer

281300825

Unavailable

80

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

90

Stainless Flat Washer M6

234061600

$0.28

100

Hexagonal Jam Nut M6

232161600

$10.55

110

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.66

115

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

115a

Elastic Stop Nut M6, Brass

232561200

$4.03

260

RH Rear Molded Spacer

281300826

Unavailable

280

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

290

Stainless Flat Washer M6

234061600

$0.28

300

Hexagonal Jam Nut M6

232161600

$10.55

310

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.66

315

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

315a

Elastic Stop Nut M6, Brass

232561200

$4.03

600

LH Rear Rail Support

281300439

$35.79

610

RH Rear Rail Support

281300441

$35.79

612

Socket Head Screw M6 X 65

205066560

$1.78

616

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

616a

Elastic Stop Nut M6, Brass

232561200

$4.03

620

Cleat

291005668

Unavailable

630

Hex. Screw M8 X 60, Scotch Grip

250000187

$4.15

640

Stainless, Flat Washer 8 mm

234081600

$0.52

650

Rear Profiled Tube

281300172

Unavailable

660

Truss Cone Torx Screw M6 X 30

250000924

$7.06

665

Stainless Flat Washer M6

234061600

$0.28

670

Elastic Stop Nut M6, Brass

232561200

$4.03

680

Interior End Piece

281300244

Unavailable

690

Exterior Cover

281300247

Unavailable

700

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

710

LH Rear Guard Rail

281300664

Unavailable

715

LH Latch Stopper

281300667

Unavailable

720

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

730

LH Rear Balustrade

281300771

Unavailable

732

Fastener Snap

293730102

Unavailable

735

Pop RIvet 1/8 X ,375

293150285

$0.27

740

Rear Balustrade Fastener

281300598

$3.24

770

Hex. Screw M6 X 70

207067060

$5.30

780

Stainless Flat Washer M6

234061600

$0.28

790

Nut Flange Elastic M6

233261200

$0.94

800

LH Rear Rail Support

281300439

$35.79

810

RH Rear Rail Support

281300441

$35.79

812

Socket Head Screw M6 X 65

205066560

$1.78

816

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

816a

Elastic Stop Nut M6, Brass

232561200

$4.03

820

Cleat

291005668

Unavailable

830

Hex. Screw M8 X 60, Scotch Grip

250000187

$4.15

835

Stainless, Flat Washer 8 mm

234081600

$0.52

850

Rear Profiled Tube

281300172

Unavailable

860

Truss Cone Torx Screw M6 X 30

250000924

$7.06

865

Stainless Flat Washer M6

234061600

$0.28

870

Elastic Stop Nut M6, Brass

232561200

$4.03

880

Interior End Piece

281300244

Unavailable

890

Exterior Cover

281300247

Unavailable

900

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

910

RH Rear Guard Rail

281300784

Unavailable

915

RH Latch Stopper

281300783

Unavailable

920

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

930

RH Rear Balustrade

281300772

Unavailable

932

Fastener Snap

293730102

Unavailable

935

Pop RIvet 1/8 X ,375

293150285

$0.27

940

Rear Balustrade Fastener

281300598

$3.24

970

Hex. Screw M6 X 70

207067060

$5.30

980

Stainless Flat Washer M6

234061600

$0.28

990

Nut Flange Elastic M6

233261200

$0.94

1000

LH Rail Support

281300241

Unavailable

1010

RH Rail Support

281300237

Unavailable

1012

Socket Head Screw M6 X 65

205066560

$1.78

1016

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

1016a

Elastic Stop Nut M6, Brass

232561200

$4.03

1040

Central Profiled Tube

281300180

Unavailable

1050

Truss Cone Torx Screw M6 X 30

250000924

$7.06

1055

Stainless Flat Washer M6

234061600

$0.28

1060

Elastic Stop Nut M6, Brass

232561200

$4.03

1070

Interior End Piece

281300244

Unavailable

1080

Exterior Cover

281300247

Unavailable

1090

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

1100

Lateral Hand Rail

281300190

Unavailable

1110

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

1130

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

1150

Lower Rear Profile Tube

281300176

Unavailable

1160

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

1170

Balustrade Anchor

281300811

Unavailable

2000

LH Rail Support

281300241

Unavailable

2010

RH Rail Support

281300237

Unavailable

2012

Socket Head Screw M6 X 65

205066560

$1.78

2016

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2016a

Elastic Stop Nut M6, Brass

232561200

$4.03

2040

Central Profiled Tube

281300180

Unavailable

2050

Truss Cone Torx Screw M6 X 30

250000924

$7.06

2055

Stainless Flat Washer M6

234061600

$0.28

2060

Elastic Stop Nut M6, Brass

232561200

$4.03

2070

Interior End Piece

281300244

Unavailable

2080

Exterior Cover

281300247

Unavailable

2090

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

2100

Lateral Hand Rail

281300190

Unavailable

2110

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

2130

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

2150

Lower Rear Profile Tube

281300176

Unavailable

2160

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

2170

Balustrade Anchor

281300811

Unavailable

2310

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

2510

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

2600

LH Rail Support

281300241

Unavailable

2610

RH Rail Support

281300237

Unavailable

2612

Socket Head Screw M6 X 65

205066560

$1.78

2616

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2616a

Elastic Stop Nut M6, Brass

232561200

$4.03

2620

Cleat

291005668

Unavailable

2630

Hex. Screw M8 X 60, Scotch Grip

250000187

$4.15

2635

Stainless, Flat Washer 8 mm

234081600

$0.52

2650

Front Profiled Tube

281300182

Unavailable

2660

Truss Cone Torx Screw M6 X 30

250000924

$7.06

2665

Stainless Flat Washer M6

234061600

$0.28

2670

Elastic Stop Nut M6, Brass

232561200

$4.03

2680

Interior End Piece

281300244

Unavailable

2690

Exterior Cover

281300247

Unavailable

2700

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

2710

LH Front Side Hand Rail

281300795

$206.69

2715

Black, Dart

414644300

$0.90

2740

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

2760

Lower Profile Tube

281300178

Unavailable

2770

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

2775

Balustrade Anchor

281300811

Unavailable

2780

LH Side Balustrade Ass'y

281300646

Unavailable

2800

LH Rail Support

281300241

Unavailable

2810

RH Rail Support

281300237

Unavailable

2812

Socket Head Screw M6 X 65

205066560

$1.78

2816

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2816a

Elastic Stop Nut M6, Brass

232561200

$4.03

2820

Cleat

291005668

Unavailable

2830

Hex. Screw M8 X 60, Scotch Grip

250000187

$4.15

2835

Stainless, Flat Washer 8 mm

234081600

$0.52

2850

Front Profiled Tube

281300182

Unavailable

2860

Truss Cone Torx Screw M6 X 30

250000924

$7.06

2865

Stainless Flat Washer M6

234061600

$0.28

2870

Elastic Stop Nut M6, Brass

232561200

$4.03

2880

Interior End Piece

281300244

Unavailable

2890

Exterior Cover

281300247

Unavailable

2900

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

2910

RH Front Side Hand Rail

281300791

$206.69

2915

Black, Dart

414644300

$0.90

2940

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

2960

Lower Profile Tube

281300178

Unavailable

2970

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

2975

Balustrade Anchor

281300811

Unavailable

2980

RH Side Balustrade Ass'y

281300648

Unavailable

2990

Balustrade Support

281300506

Unavailable

2995

Velcro Strip 150MM

293740076

$11.22

3000

Support Label

281300852

$38.03

3010

Ornit Rivet 6,4 X 15.6

293150284

$4.07
