Partiron

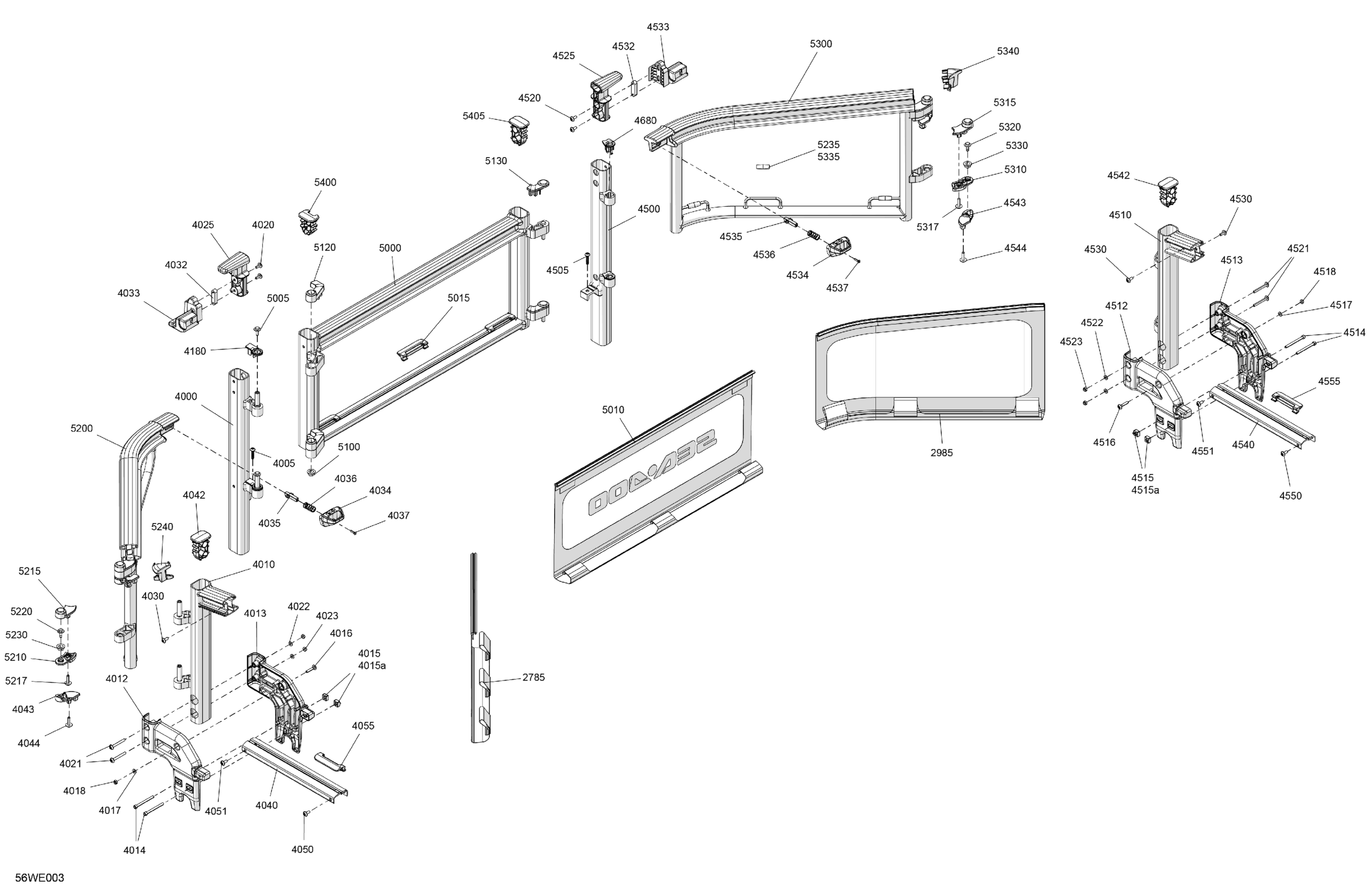

Sea-doo FISH 18 - 170 - 52SG - Olive Night - Trailer Paint - CAT2B - 2025 GUARD RAILS - Front Diagram

#

Description
Price

2785

LH Front Balustrade Ass'y

281300647

Unavailable

2985

RH Front Balustrade Ass'y

281300649

Unavailable

4000

LH Front Profiled Tube

281300714

Unavailable

4005

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

4010

LH Profiled Tube

281300613

Unavailable

4012

LH Rail Support

281300657

Unavailable

4013

RH Rail Support

281300660

Unavailable

4014

Socket Head Screw M6 X 65

205066560

$1.78

4015

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

4015a

Elastic Stop Nut M6, Brass

232561200

$4.03

4016

Truss Cone Torx Screw M6 X 30

250000924

$7.06

4017

Stainless Flat Washer M6

234061600

$0.28

4018

Elastic Stop Nut M6, Brass

232561200

$4.03

4020

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4021

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

4022

Stainless Flat Washer M6

234061600

$0.28

4023

Elastic Stop Nut M6, Brass

232561200

$4.03

4025

Front Handle

281300775

Unavailable

4030

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4032

Lock Plate

281300877

Unavailable

4033

Door Stopper

281300633

Unavailable

4034

Latch Stopper

281300634

Unavailable

4035

Front Latch Stopper

281300798

Unavailable

4036

Tension Spring

281300840

Unavailable

4037

Flange Torx Screw K40 X 16

250000287

$2.00

4040

Lower Profiled Tube

281300611

Unavailable

4042

Oblong Plug

281300278

Unavailable

4043

LH Lower Hinge

281300776

Unavailable

4044

Hexagonal Cap Screw M6 X 25

250000978

$4.15

4050

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4051

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4055

Balustrade Anchor

281300811

Unavailable

4180

LH Lower Cap

281300311

Unavailable

4500

RLH Front Profiled Tube

281300715

Unavailable

4505

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

4510

RH Profiled Tube

281300637

Unavailable

4512

LH Rail Support

281300657

Unavailable

4513

RH Rail Support

281300660

Unavailable

4514

Socket Head Screw M6 X 65

205066560

$1.78

4515

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

4515a

Elastic Stop Nut M6, Brass

232561200

$4.03

4516

Truss Cone Torx Screw M6 X 30

250000924

$7.06

4517

Stainless Flat Washer M6

234061600

$0.28

4518

Elastic Stop Nut M6, Brass

232561200

$4.03

4520

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4521

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

4522

Stainless Flat Washer M6

234061600

$0.28

4523

Elastic Stop Nut M6, Brass

232561200

$4.03

4525

Front Handle

281300775

Unavailable

4530

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4532

Lock Plate

281300877

Unavailable

4533

RH Latch Stopper

281300799

Unavailable

4534

Latch Stopper

281300634

Unavailable

4535

Front Latch Stopper

281300798

Unavailable

4536

Tension Spring

281300840

Unavailable

4537

Flange Torx Screw K40 X 16

250000287

$2.00

4540

Lower Profiled Tube

281300611

Unavailable

4542

Oblong Plug

281300278

Unavailable

4543

RH Lower Hinge

281300778

Unavailable

4544

Hexagonal Cap Screw M6 X 25

250000978

$4.15

4550

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4551

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4555

Balustrade Anchor

281300811

Unavailable

4680

RH Lower Cap

281300312

Unavailable

5000

Front Door Service Kit

295101112

Unavailable

5005

Hex Screw M6 X 20

250000965

$2.00

5010

Front Balustrade Ass'y

281300844

Unavailable

5015

Balustrade Anchor

281300811

Unavailable

5100

Venturi Bushing

293900007

$4.25

5120

LH Upper Cap

281300309

Unavailable

5130

RH Upper Cap

281300310

Unavailable

5200

LH Front Door Service Kit

295101403

Unavailable

5210

LH Upper Hinge

281300777

Unavailable

5215

LH In Cover

281300625

Unavailable

5217

Hexagonal Cap Screw M6 X 25

250000978

$4.15

5220

Hex Screw M6 X 20

250000965

$2.00

5230

Venturi Bushing

293900007

$4.25

5235

Rear Balustrade Fastener

281300598

$3.24

5240

LH Front End Piece

281300835

Unavailable

5300

RH Front Door Service Kit

295101404

Unavailable

5310

RH Upper Hinge

281300779

Unavailable

5315

RH In Cover

281300628

Unavailable

5317

Hexagonal Cap Screw M6 X 25

250000978

$4.15

5320

Hex Screw M6 X 20

250000965

$2.00

5330

Venturi Bushing

293900007

$4.25

5335

Rear Balustrade Fastener

281300598

$3.24

5340

RH Front End Piece

281300836

Unavailable

5400

Oblong Plug

281300841

Unavailable

5405

Oblong Plug

281300278

Unavailable
