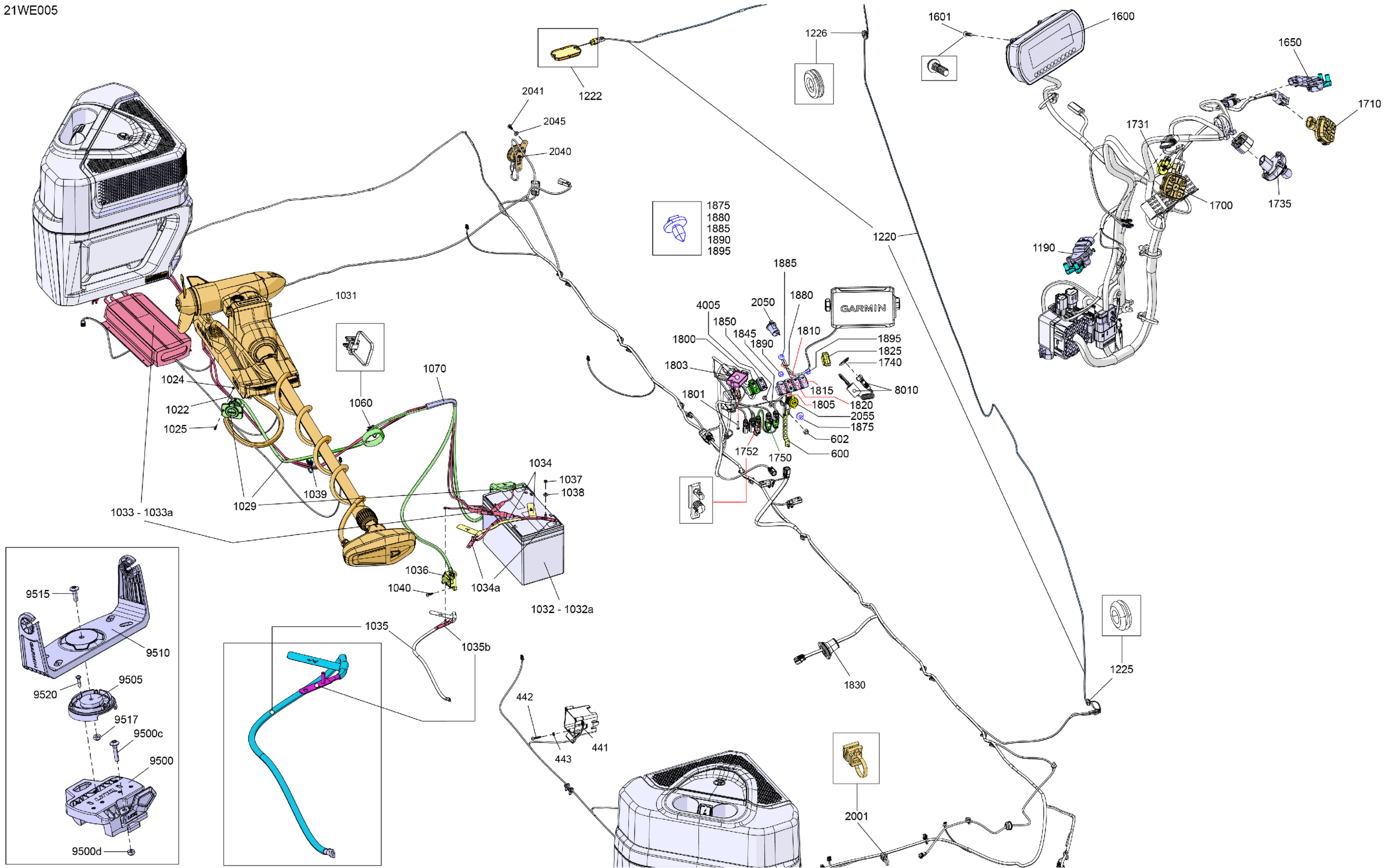

Sea-doo FISH 18 - 170 - 52SG - Olive Night - Trailer Paint - CAT2B - 2025 ELECTRIC - Electric Upper Section Diagram

#

Description
Price

441

Switch Support

278004308

$16.39

442

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

443

Sealing Washer

250200114

$4.15

600

Busbar Ass'y

281000234

$32.81

602

Elastic Stop Nut M6, Brass

232561200

$4.03

1022

Flat Washer 4 mm, Stainless

234042600

$1.06

1024

Elastic Stop Nut M4

232541200

$2.00

1025

Black, Socket Head Screw M4 X 16

250001011

$1.40

1027

Mount Dart

710008294

$0.99

1029

24V Power Outlet Wiring Harness

278004468

Unavailable

1031

Electric Motor Cover Ass'y

269801361

Unavailable

1032

Battery 12 Volt 100Ah

296000465

$388.03

1032a

Battery Bolt Kit

296000458

Unavailable

1033

Battery Charger

278004724

Unavailable

1033a

Battery Charger

278004724

Unavailable

1034

Negative Cable | Includes 1034 to 1034a

278004197

Unavailable

1034a

Terminal

710008715

$7.52

1035

Circuit Breaker Cable | Includes 1035 to 1035c

278004250

Unavailable

1035b

Terminal

710008715

$7.52

1035c

Protector Cap

710000393

$8.72

1036

Circuit Breaker

278004252

Unavailable

1037

Elastic Stop Nut M6, Brass

232561200

$4.03

1038

Stainless, Flat Washer 8 mm

234081600

$0.52

1039

Tie Wrap Clip

293750111

$13.49

1040

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

1060

Anchorage Tie Wrap

293750103

$4.27

1070

Barandilla Braided 25.4 Id 2000 Mm

219704619

Unavailable

1220

Roof Wiring Harness

278004242

Unavailable

1222

Dome Light

278004206

Unavailable

1225

Grommet

293720062

$4.78

1226

Grommet

517303756

$3.61

1601

Hex. Flange PT Screw K50 X 20

241152040

$2.00

1740

Specialized Nut

278004274

$3.12

1750

Multiple Accessory Harness

278003684

$47.73

1752

Connector Support

515179692

$1.87

1800

Switch

278004263

Unavailable

1801

Hex. Flanged Pt Screw K50 X 30

241153060

$2.00

1803

Module Minuterie

278003996

$305.19

1805

Horn Switch

278003690

$49.22

1810

Nav & Anchor Light Switch

278003691

$35.49

1815

Pump Switch

278003692

$51.46

1820

Vent Switch

278003693

$42.51

1825

Plug

278004279

Unavailable

1830

Cable Boot

293720134

Unavailable

1845

Stainless Flat Washer M6

234061600

$0.28

1850

Elastic Stop Nut M6, Brass

232561200

$4.03

1875

Mount Dart

710008294

$0.99

1880

Mount Dart

710008294

$0.99

1885

Mount Dart

710008294

$0.99

1890

Mount Dart

710008294

$0.99

1895

Mount Dart

710008294

$0.99

2001

Anchorage Tie Wrap

293750103

$4.27

2040

Horn

278003906

Unavailable

2041

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

2045

Stainless, Flat Washer 8 mm

234081600

$0.52

2050

12V Power Outlet

710005374

$31.31

2055

USB Outlet

219400510

$43.99

4005

Rocker Switch Button

278004380

Unavailable

8010

Safety Lanyard Ass'y, RFID

278003400

$67.13

8030

Cord Cut Off Switch Tether | Not Shown

278004223

$29.82

9500

Rod Support Kit | Includes 9500 to 9500d

295101308

Unavailable

9500c

Truss Cone Torx Screw M6 X 30

250000924

$7.06

9500d

Elastic Stop Nut M6, Brass

232561200

$4.03

9505

GPS Base Support

269801787

Unavailable

9510

Front GPS Support

269801786

Unavailable

9515

Torx-Truss M/S Stlss M6 X 20

250000829

$2.64

9517

Elastic Stop Nut M6, Brass

232561200

$4.03

9520

Flange Torx Screw K40 X 16

250000287

$2.00

1190

LH Throttle Sensor

278002284

$108.18

1600

Multifunction Mono Compact Gauge

278003430

$532.06

1650

Throttle Position Sensor

278002283

$104.99

1700

Switch

278003821

$116.39

1710

RH Switch Keypad

278003474

$116.39

1731

Start/Stop Switch This part replaces 296000440.

296000440

$49.22

1735

Terminal DESS CAN | CARB Vehicle

710008832

$69.37
