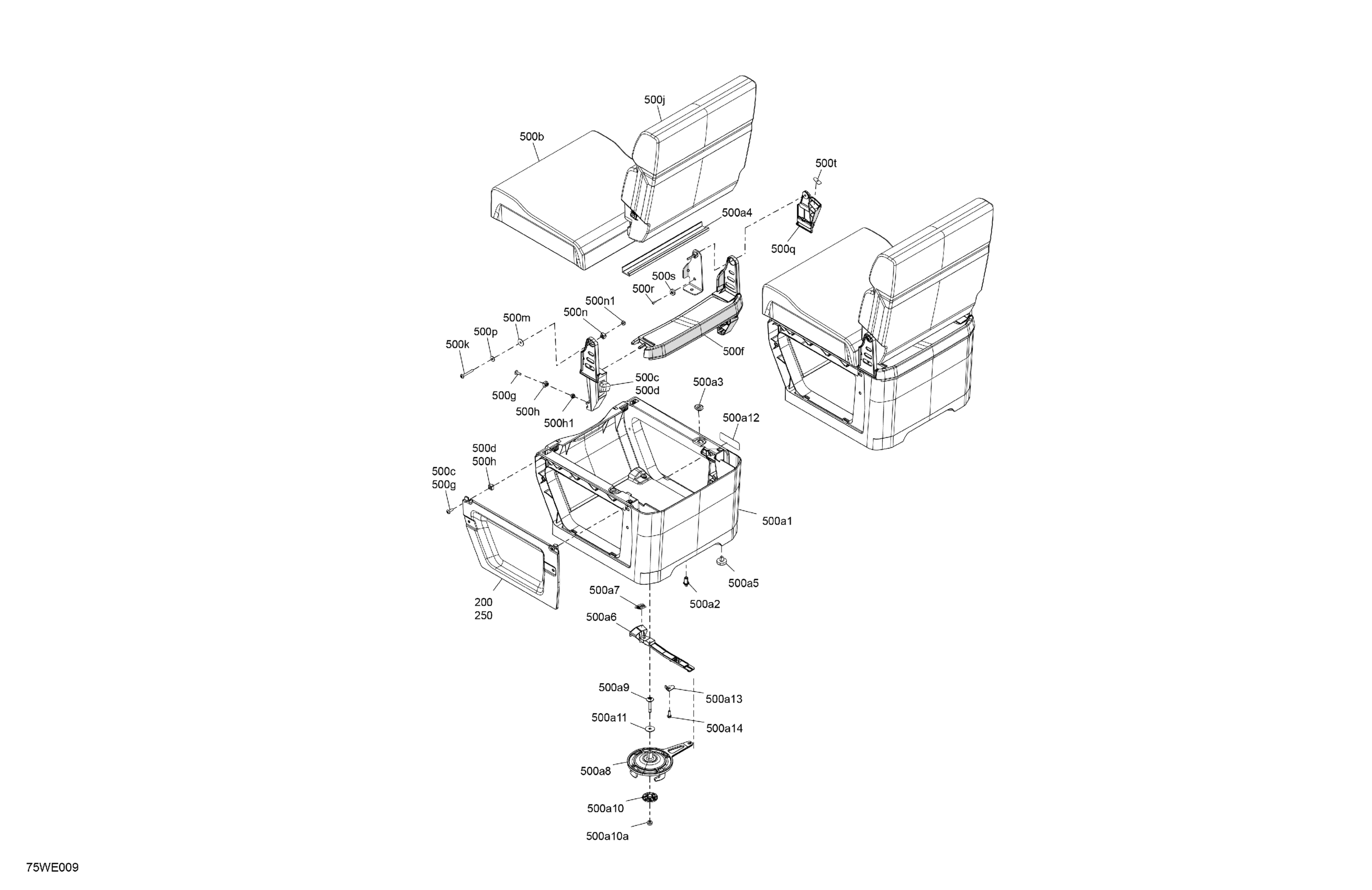

Sea-doo North America - FISH 18 - 170 - 52SG - Olive Night - Trailer Paint - CAT2B - 2025 07- FURNITURE - Stern Bench Diagram

Description

Price

200

LH Panel Seat Switch Kit

295101046

$44.99

250

RH Panel Seat Switch Kit

295101047

$44.99

500a1

Seat Support Service Kit

295101127

$379.99

500a2

Locator Rod

269003492

$6.09

500a3

Oval Washer

705000321

$5.61

500a4

Gutter

269003483

$2.89

500a5

Rubber Stopper

269003502

$6.89

500a6

Lever Latch Service Kit

295101126

$24.99

500a7

Lever Decal

219905993

Unavailable

500a8

Seat Anchorage

269003311

$19.99

500a9

Torx Head M8 X 50 S.GRIP

250001154

$12.11

500a10

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

500a10a

Hex. Flange Nut M8

233181600

$1.05

500a11

Flat Washer 8 mm

250200130

$3.17

500a12

Seat Anchorage Warning Label

219905883

Unavailable

500a13

Guide

269004160

$10.99

500a14

Hex. Flange Screw M6.81 x 20

243162060

$3.72

500b

Silvertex Titanium, Seat Cushion Ass'y

269003940

$279.99

500c

LH Overmolded Support

269003609

$119.99

500d

RH Overmolded Support

269003764

$119.99

500f

Support Trim

269003765

$14.99

500g

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$3.69

500h

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

500h1

Elastic Stop Nut M6, Brass

232561200

$4.23

500j

Simtex Bottle, Tilting Backrest Ass'y

269004119

$264.99

500k

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

500m

Flat Washer M6 X 25

250200044

$2.69

500n

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

500n1

Elastic Stop Nut M6, Brass

232561200

$4.23

500p

Flat Washer 6 mm

234062100

$1.26

500q

Backrest Stopper

269003892

$16.49

500r

Screw K40 X 10

250001119

$2.40

500s

Stopper

269003895

$5.19

500t

Bute File Decal

219906226

$10.49
