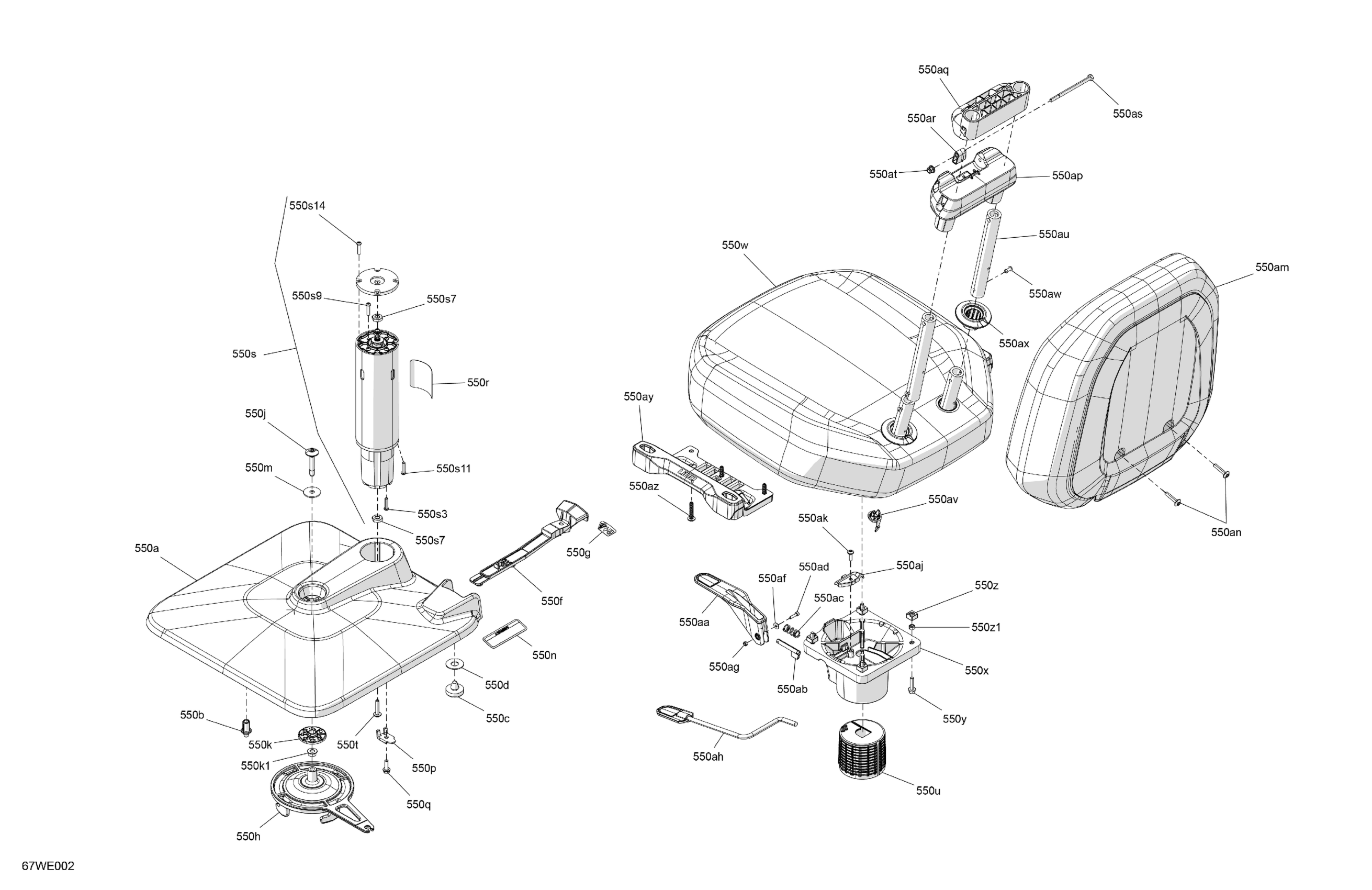

Sea-doo FISH 18 - 170 - 52SG - Olive Night - Trailer Paint - CAT2B - 2025 FURNITURE - Fisherman Seat Diagram

#

Description
Price

550a

Seat Base Service Kit

295101406

Unavailable

550b

Locator Rod

269003492

$5.40

550c

Rubber Stopper

269003502

$6.18

550d

Flat Washer Stainless

250200211

Unavailable

550f

Lever Latch Service Kit

295101126

Unavailable

550g

Lever Decal

219905993

Unavailable

550h

Seat Anchorage

269003311

$16.39

550j

Torx Head M8 X 50 S.GRIP

250001154

$10.10

550k

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$6.58

550k1

Hex. Flange Nut M8

233181600

$0.99

550m

Flat Washer 8 mm

250200130

$3.00

550n

Seat Anchorage Warning Label

219905883

Unavailable

550p

Guide

269004160

$9.66

550q

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$3.33

550r

Fisher Seat Warning Label

219906613

Unavailable

550s

Seat Post Service Kit | Includes 550s to 550s14

295101407

Unavailable

550s3

Plastite Torx Screw #10 X 7/8"

250000207

$1.88

550s7

Hexagonal Jam Nut M10 X 1.0

269004307

Unavailable

550s9

Plastite Torx Screw #10 X 7/8"

250000207

$1.88

550s11

Plastite Torx Screw #10 X 7/8"

250000207

$1.88

550s14

Plastite Torx Screw #10 X 7/8"

250000207

$1.88

550t

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

550u

Sleeve

269004086

Unavailable

550w

Silvertex Titanium, Seat Cushion Ass'y

269003910

Unavailable

550x

Seat Support

269004087

Unavailable

550y

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

550z

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

550z1

Elastic Stop Nut M6, Brass

232561200

$4.03

550aa

Seat Latch

281000020

$8.49

550ab

Latch Rod

281000051

$26.84

550ac

Compression Spring

281000063

$6.19

550ad

Black, Socket Head Screw M4 X 16

250001011

$1.40

550af

Flat Washer 4 mm, Stainless

234042600

$1.06

550ag

Elastic Stop Nut M4

232541200

$2.00

550ah

Overmolded Adjustment Lever

269004089

Unavailable

550aj

Stopper

269004117

Unavailable

550ak

Torx Screw, Nylon Patch, M5 X 14

250000487

$1.79

550am

Simtex Bottle, Backrest Ass'y

269003913

Unavailable

550an

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

550ap

Lower Molded Hinge

269004154

Unavailable

550aq

Upper Molded Hinge

269004156

Unavailable

550ar

Bushing

269004225

$1.81

550as

Hex. Screw M6 X 100

230060060

$6.99

550at

Nut Flange Elastic M6

233261200

$0.94

550au

Tube

269003927

Unavailable

550av

Plug

269004070

Unavailable

550aw

Pop Rivet 3/16"

293150043

$1.85

550ax

Seat Trim

269004123

Unavailable

550ay

Lower Rail

269801366

Unavailable

550az

Plastite Torx Screw M6.81X35

250001209

$3.58
