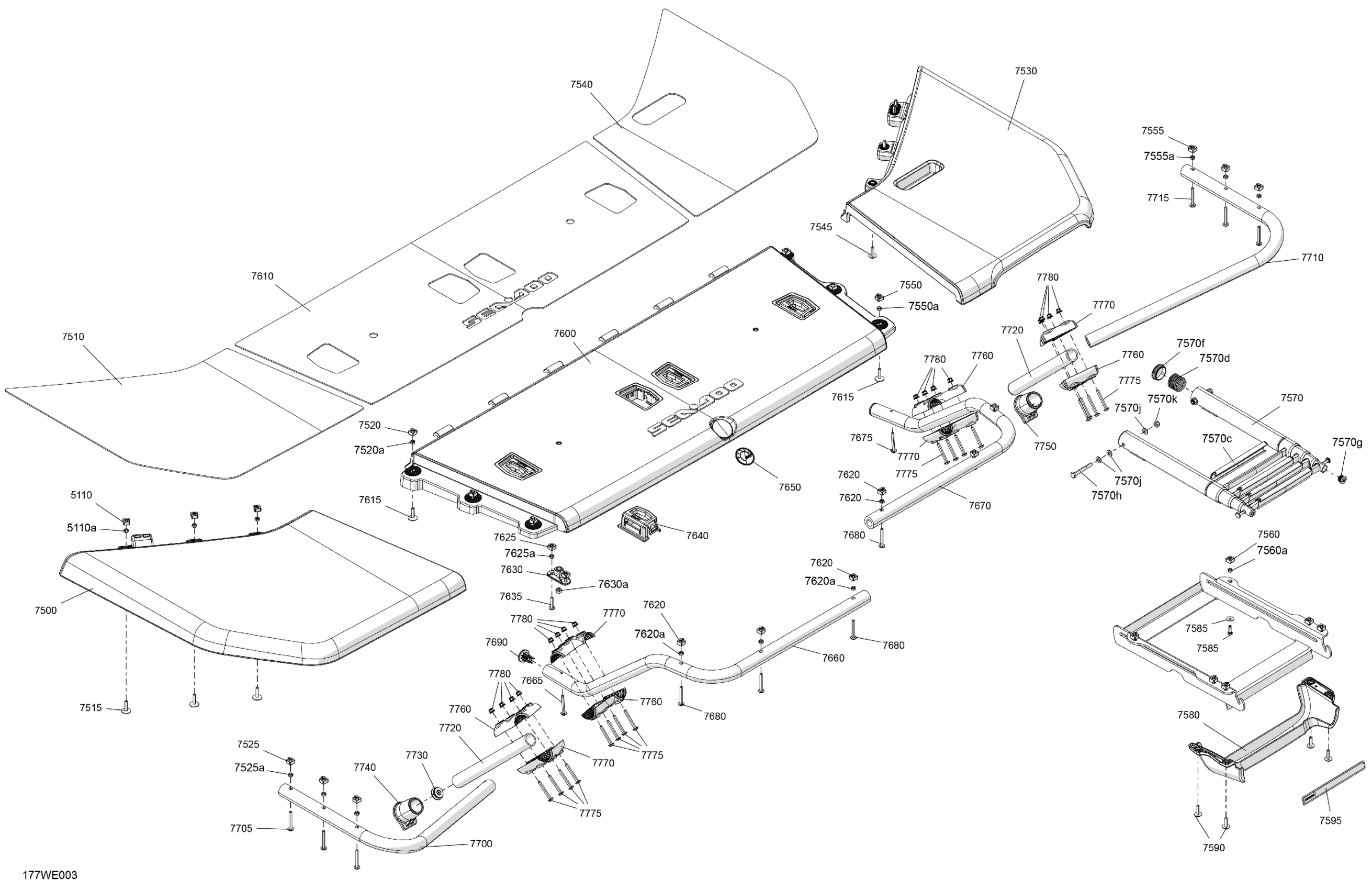

Sea-doo FISH 18 - 170 - 52SG - Olive Night - Trailer Paint - CAT2B - 2025 BODY - Swim Platform Diagram

#

Description
Price

5110

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

5110a

Elastic Stop Nut M6, Brass

232561200

$4.03

7500

Deep Black, LH Rear Swim Platform

291006566

Unavailable

7510

LH Swim Platform Carpet

269004272

Unavailable

7515

Hex Sems Screw M6X30

250001183

$2.64

7520

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

7520a

Elastic Stop Nut M6, Brass

232561200

$4.03

7525

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

7525a

Elastic Stop Nut M6, Brass

232561200

$4.03

7530

Deep Black, RH Rear Swim Platform

291006567

Unavailable

7540

RH Swim Platform Carpet

269004273

Unavailable

7545

Hexagonal Cap Screw M6 X 25

250000978

$4.15

7550

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

7550a

Elastic Stop Nut M6, Brass

232561200

$4.03

7555

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

7555a

Elastic Stop Nut M6, Brass

232561200

$4.03

7560

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

7560a

Elastic Stop Nut M6, Brass

232561200

$4.03

7570

Ladder Ass'y | Includes 7570 to 7570k

291006274

Unavailable

7570c

Step Trim

291006301

Unavailable

7570d

Compression Spring

291006302

Unavailable

7570f

Upper Cap

293000141

Unavailable

7570g

Lower Cap

293000143

Unavailable

7570h

Hex. Screw M8 X 60

291006570

Unavailable

7570j

Flat Washer 8 Mm, Nylon

291006571

Unavailable

7570k

Hex. Elastic Nut M8

229000600

$3.96

7580

Ladder Trim

291006067

Unavailable

7585

Hex Screw M6 X 20

250000965

$2.00

7590

Hexagonal Cap Screw M6 X 25

250000978

$4.15

7595

Ladder Warning Label

219905725

Unavailable

7600

Central Kit Service Platform

295101447

$139.99

7610

Central Swim Platform Carpet

269004271

Unavailable

7615

Hex Sems Screw M6X30

250001183

$2.64

7620

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

7620a

Elastic Stop Nut M6, Brass

232561200

$4.03

7625

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

7625a

Elastic Stop Nut M6, Brass

232561200

$4.03

7630

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

7630a

Hex Nut M8

232081200

$1.19

7635

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

7640

Linq Bases Kit

295100858

$24.60

7650

BRP Logo Emblem 48 MM UV

704909040

$14.78

7660

LH Deck Support

291006065

Unavailable

7665

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

7670

RH Deck Support

291006066

Unavailable

7675

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

7680

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

7690

Swim Plateform Cap

291005634

Unavailable

7700

LH Deck Support

291006047

Unavailable

7705

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

7710

RH Deck Support

291006049

Unavailable

7715

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

7720

Reinforcement Tube

291006402

Unavailable

7730

Round Plug

281300340

Unavailable

7740

LH Cap

293000140

Unavailable

7750

RH Cap

293000144

Unavailable

7760

Top Tube Jonction

291006097

Unavailable

7770

Bottom Tube Jonction

291006098

Unavailable

7775

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

7780

Nut Flange Elastic M6

233261200

$0.94
