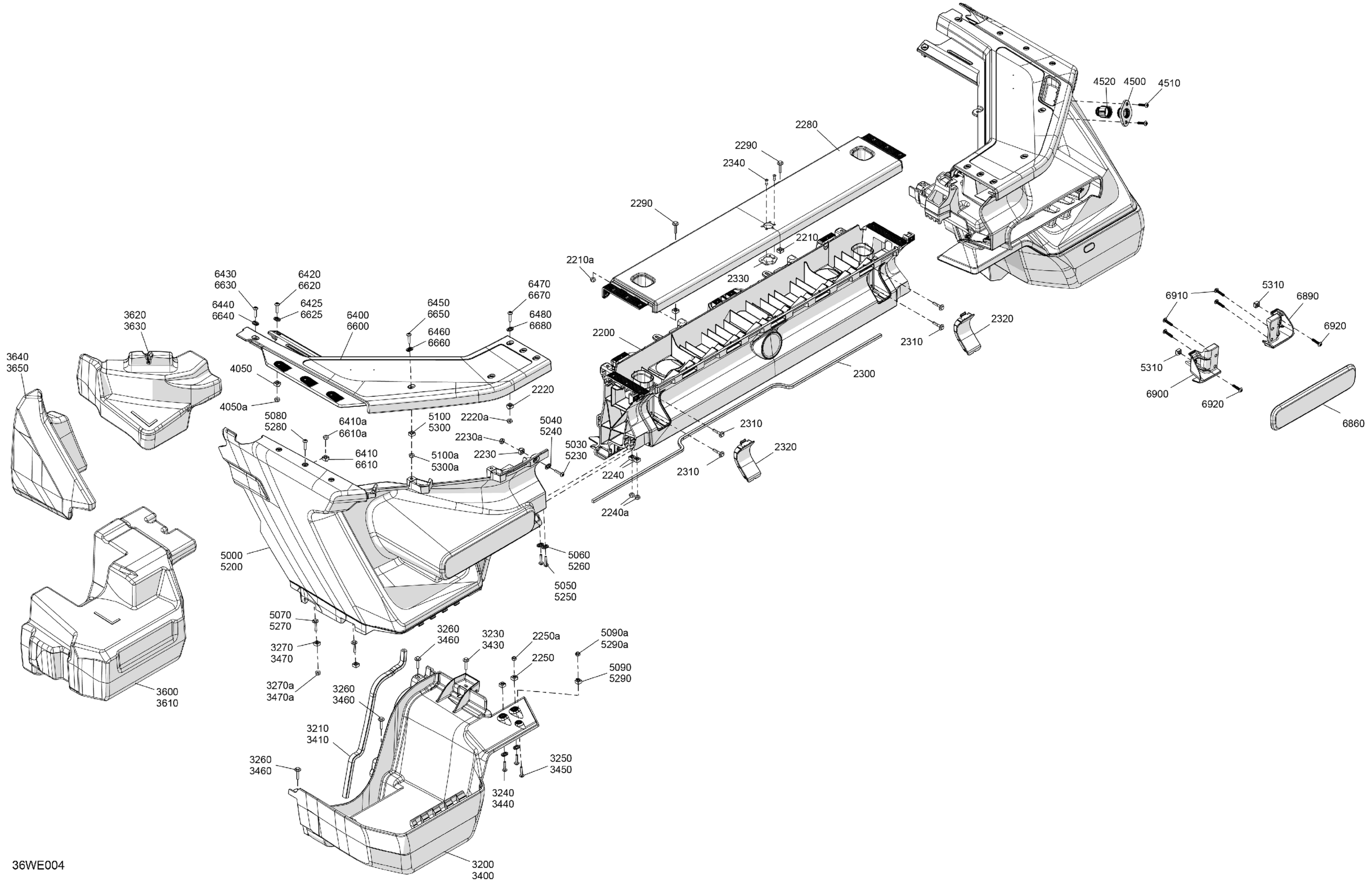

Sea-doo FISH 18 - 170 - 52SG - Olive Night - Trailer Paint - CAT2B - 2025 HULL - Rear Deflector Float and Rear Bumper Diagram

#

Description
Price

2200

Rear Bumper Service Kit

295101095

Unavailable

2210

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2210a

Elastic Stop Nut M6, Brass

232561200

$4.03

2220

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2220a

Elastic Stop Nut M6, Brass

232561200

$4.03

2230

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2230a

Elastic Stop Nut M6, Brass

232561200

$4.03

2240

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2240a

Elastic Stop Nut M6, Brass

232561200

$4.03

2250

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2250a

Elastic Stop Nut M6, Brass

232561200

$4.03

2280

Deep Black, Bumper Trim

291006560

Unavailable

2290

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

2300

Gasket

292002523

$8.64

2310

Hex SEMS Screw M6X30

250001164

Unavailable

2320

Rear Bumper Cap

291005459

Unavailable

2330

Retaining Plate

291005813

Unavailable

2340

Pop Rivet 3/16"

293150005

$0.46

3200

LH Rear Float Deflector

291004847

Unavailable

3210

Gasket

292002677

$27.58

3230

Hex Screw SEMS M6X35, SS

250000969

$2.00

3240

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

3250

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

3260

Hex Screw SEMS M6X35, SS

250000969

$2.00

3270

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

3270a

Elastic Stop Nut M6, Brass

232561200

$4.03

3400

RH Rear Deflector Float

291006071

Unavailable

3410

Gasket

292002677

$27.58

3430

Hex Screw SEMS M6X35, SS

250000969

$2.00

3440

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

3450

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

3460

Hex Screw SEMS M6X35, SS

250000969

$2.00

3470

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

3470a

Elastic Stop Nut M6, Brass

232561200

$4.03

3600

LH Lower Rear Float

292002847

$68.63

3610

RH Lower Rear Float

292002848

$68.63

3620

LH Rear Upper Float

291005815

Unavailable

3630

RH Rear Upper Float

291005816

Unavailable

3640

LH Lat Rear Float

291005843

Unavailable

3650

RH Rear Lateral Float

291005844

Unavailable

4050

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

4050a

Elastic Stop Nut M6, Brass

232561200

$4.03

4500

Through Hull Fitting

292002765

$6.99

4510

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

4520

Adapter Hose

291005837

Unavailable

5000

Deep Black, LH Rear Panel

291006549

Unavailable

5030

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

5040

Oval Washer

291003880

$1.36

5050

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

5060

Oval Washer

291003880

$1.36

5070

Hex Screw SEMS M6X35, SS

250000969

$2.00

5080

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

5090

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

5090a

Elastic Stop Nut M6, Brass

232561200

$4.03

5100

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

5100a

Elastic Stop Nut M6, Brass

232561200

$4.03

5200

Deep Black, RH Rear Panel

291006550

Unavailable

5230

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

5240

Oval Washer

291003880

$1.36

5250

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

5260

Oval Washer

291003880

$1.36

5270

Hex Screw SEMS M6X35, SS

250000969

$2.00

5280

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

5290

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

5290a

Elastic Stop Nut M6, Brass

232561200

$4.03

5300

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

5300a

Elastic Stop Nut M6, Brass

232561200

$4.03

5310

Platite Insert 6.81

291005889

Unavailable

6400

Deep Black, LH Rear Panel Trim

291006551

Unavailable

6410

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

6410a

Elastic Stop Nut M6, Brass

232561200

$4.03

6420

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6425

Oval Washer

291003880

$1.36

6430

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6440

Oval Washer

291003880

$1.36

6450

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6460

Oval Washer

291003880

$1.36

6470

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6480

Oval Washer

291003880

$1.36

6600

Deep Black, RH Rear Panel Trim

291006552

Unavailable

6610

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

6610a

Elastic Stop Nut M6, Brass

232561200

$4.03

6620

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6625

Oval Washer

291003880

$1.36

6630

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6640

Oval Washer

291003880

$1.36

6650

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6660

Oval Washer

291003880

$1.36

6670

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6680

Oval Washer

291003880

$1.36

6860

Ladder Trim Service Kit

295101099

Unavailable

6890

RH Ladder Hole Cap

291006060

Unavailable

6900

LH Ladder Hole Cap

291006072

Unavailable

6910

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

6920

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85
