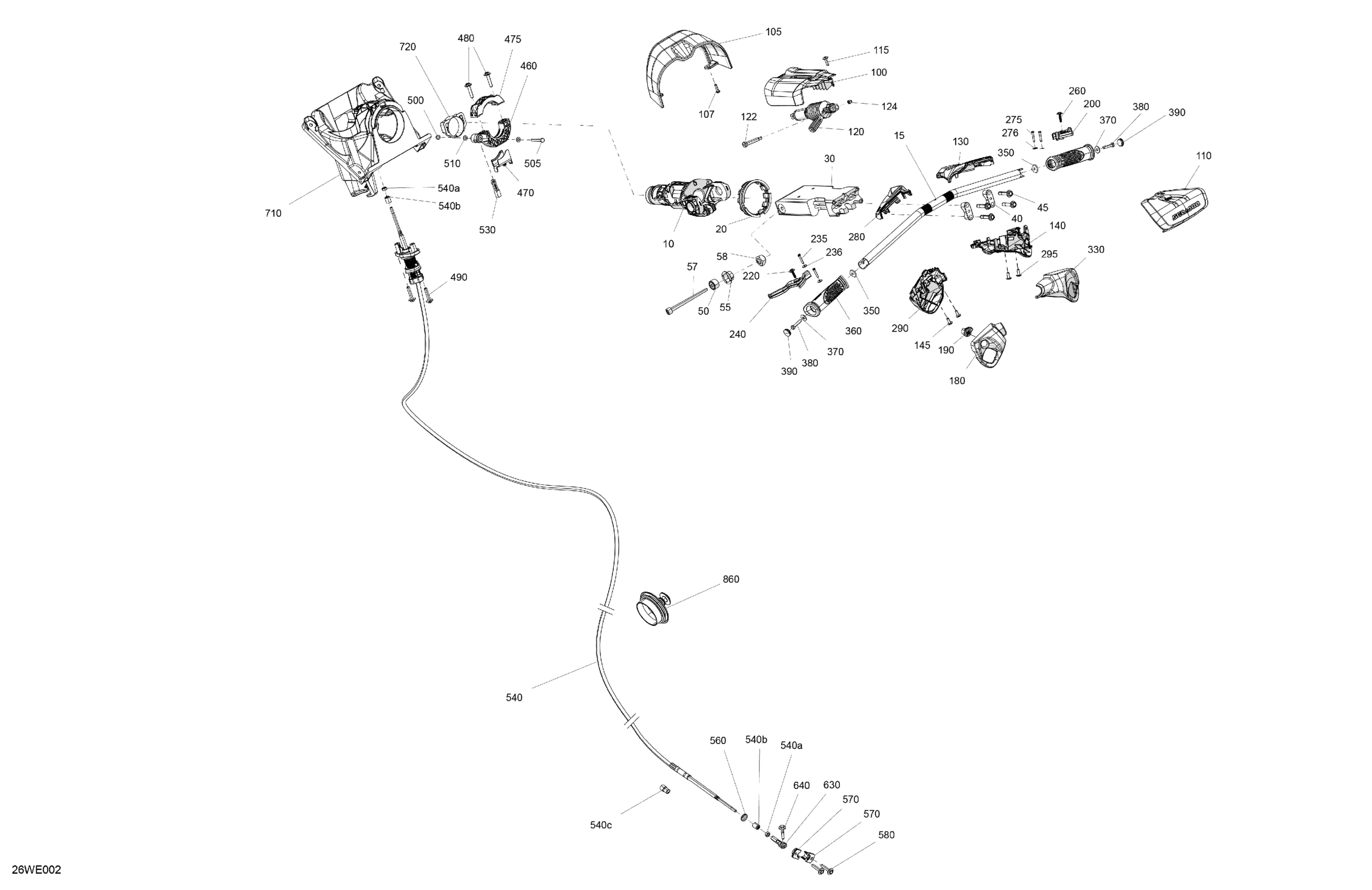

Sea-doo FISH 18 - 170 - 52SG - Olive Night - Trailer Paint - CAT2B - 2025 MECHANIC - Steering Diagram

#

Description
Price

10

Steering Column

277002292

Unavailable

15

Bent Handlebar

281000031

$98.48

20

Wear Ring

277001874

$11.18

30

Anodized Handlebar Riser Block

277002293

Unavailable

40

Steering Support | Includes 40 to 40a

506152751

$11.58

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.73

50

Axle Block

277002413

Unavailable

55

Bushing

709401603

$7.54

57

Socket Head Screw Din.912A2

231083060

$3.40

58

Hex. Elastic Nut M8 Brass

232581200

$1.48

100

Rear Steering Column Trim

277002289

Unavailable

105

Front Steering Column Trim

277002348

$12.79

107

Hex. Screw 10-14 X 7/8”

211000023

$3.34

110

Steering Pad

277002331

$51.46

115

Torx Screw M6 X 20, Scotch Grip

250000446

$4.15

120

Cylinder Adjustment Ass'y

709402894

Unavailable

122

Socket Head Screw M6 X 50

250001230

$11.94

124

Hexagonal Jam Nut M6

232161600

$10.55

130

RH Upper Housing

277002040

$98.48

140

RH Lower Housing

277002036

$91.76

145

Torx Truss Screw M6 X 16

250000922

$1.79

180

LH Cover

277002314

$15.64

190

Red Button Switch

277002327

$8.57

200

Hand Lever Accelerator

277002138

$35.04

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

235

Hex. Flange Screw K40 X 25

241142560

$2.49

236

Flat Washer 4 mm, Stainless

234042600

$1.06

240

Reverse Handle

277001945

$39.52

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

275

Hex. Flange Screw K40 X 25

241142560

$2.49

276

Flat Washer 4 mm, Stainless

234042600

$1.06

280

LH Upper Housing

277002041

$98.48

290

LH Lower Housing

277002035

$91.76

295

Torx Truss Screw M6 X 16

250000922

$1.79

330

RH Cover

277002315

$15.64

350

Insert Grip Handle

277001863

$8.83

360

Handlebar Grip

277002286

$17.13

370

Flat Washer M6, Stainless

234062600

$0.73

380

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.87

390

Black, Cap

277000203

$8.58

460

Steering Arm

277002319

$8.25

470

Spacer

277001654

$13.09

475

C Clamp

277002085

$8.25

480

Hexagonal Cap Screw M6 X35

250000399

$4.15

490

Hexagonal Cap Screw M6 X35

250000399

$4.15

500

Nut Flange Elastic M6

233261200

$0.94

505

Hex. Screw M6 X 40

207064060

$1.61

510

Stainless Flat Washer M6

234061600

$0.28

530

Ball Joint

277001180

$32.06

540

Steering Cable | Includes 540 to 540c

277002454

$256.69

540a

Hex. Nut 1/4"-28

211100056

$0.64

540b

Wiper Rod

277001582

$10.13

540c

End Piece

277001583

$12.79

560

Rubber Washer

293830063

$1.73

570

Ring Halves

277001856

$11.31

580

Hexagonal Cap Screw M6 X35

250000399

$4.15

630

Ball Joint

277000775

$46.24

640

Hex Sems Screw M6X35

250000970

$2.00

710

Steering Column Support

277002168

$46.24

720

Wear Ring

277002318

Unavailable

860

Cable Boot

293720116

$4.49
