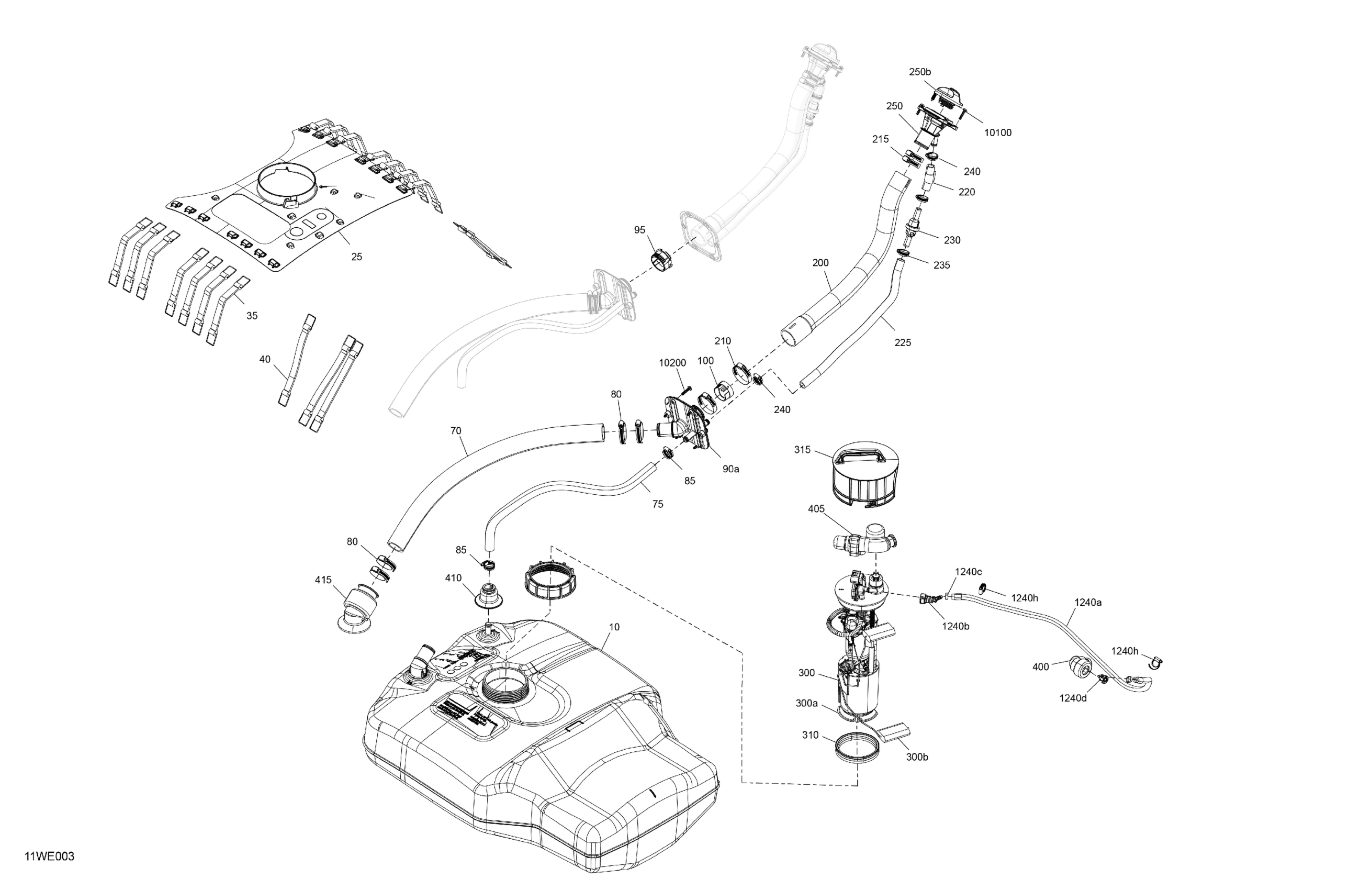

Sea-doo FISH 18 - 170 - 52SG - Olive Night - Trailer Paint - CAT2B - 2025 ENGINE - Fuel Diagram

Description

Price

Fuel Tank

275501143

$599.99

Fuel Tank Support

275501017

$36.99

Retaining Strap

275501161

$18.49

Holding Strap

293850112

$18.49

Hose

275501030

$85.99

Vent Hose This part replaces 275501087.

275501138

Unavailable

Tridon Clamp

293650036

$7.49

Tridon Gear Clamp

293650019

$5.82

90a

Through Hull Fitting Sub Ass'y

275501073

$48.99

Adapter

275501142

$7.89

100

Check Valve

275501047

$98.99

200

Hose Filler Neck Ext

275501003

$78.99

210

Tridon Clamp

293650036

$7.49

215

Tridon Clamp

293650036

$7.49

220

Hose Filler Neck Ext

275501003

$78.99

225

Hose Filler Neck Ext

275501003

$78.99

230

Check Valve

275501103

$33.99

235

Tridon Gear Clamp

293650019

$5.82

240

Tridon Gear Clamp

293650019

$5.82

250

Filler Neck Ass'y | Includes 250 to 250b

275501139

$37.99

250b

Fuel Tank Cap Ass'y

275501114

Unavailable

300

Fuel Pump Ass'y | Includes 300 to 300b

275501039

$425.99

300a

Fuel Filter

270600113

$33.99

300b

Fuel Level Sensor

275501163

$109.99

310

Pump Gasket

293250514

$19.49

315

Fuel Pump Cover

273000416

$37.99

400

Connector Guard

275501063

$4.55

405

Connector Guard

275501102

$13.49

410

Hose Guard

275501070

$5.79

415

Hose Guard

275501071

$43.99

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$339.99

1240b

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$16.49

1240c

Crimp Clamp

293650053

$3.09

1240d

Quick Disconnect

275500921

$16.49

1240h

Gear Clamp

293650284

$4.44

10100

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

10200

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11
