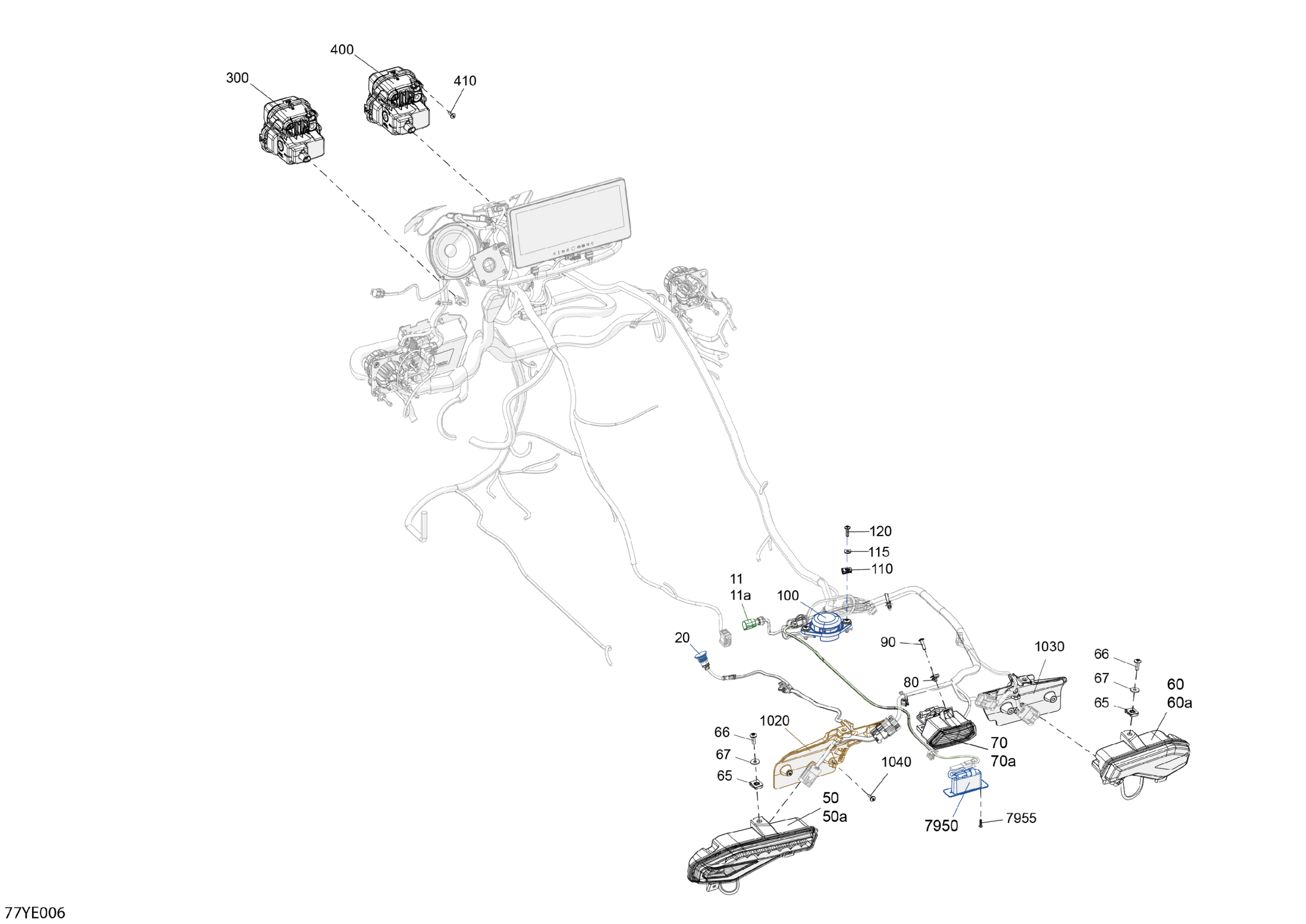

Can-Am F3 T - H6SA - Vegas White, 2025 Electric - Vehicle Lighting Diagram

#

Description
Price

11

Connector Plug | Includes 10h to 10h1

710004900

$15.87

11a

Housing

710001951

$11.81

20

Cap

708400046

$3.89

50

LH Tail Light | Includes 0k to 0k1

710007002

Unavailable

50a

Flasher Bulb

219800304

$6.66

60

RH Tail Light | Includes 0m to 0m1

710007004

Unavailable

60a

Flasher Bulb

219800304

$6.66

65

Panel Nut M6 X 1.0

250100208

$1.22

66

Torx Screw M6 X 20

250000722

$1.54

67

Flat washer M6

250200164

$0.96

70

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

70a

Bulb 12V 10W

219800322

$8.68

80

Panel Nut M5 X 0.8

250000958

$4.00

90

Torx Truss Screw M5 X 20

250000715

$2.00

100

Passenger Detection Switch

710008103

$70.12

110

Panel Nut M6 X 1.0

250100208

$1.22

115

Stainless Steel Flat Washer

234062670

$2.00

120

Torx Truss Screw M6 X 25

250000807

$2.00

300

Front Headlight

710008694

$349.99

400

Front Headlight

710008694

$349.99

410

Torx Screw K50 X 16

250000720

$1.60

1020

LH Connector Support

710004643

$12.99

1030

RH Connector Support

710004644

$11.49

1040

Torx Screw K50 X 16

250000720

$1.60

7950

License Light

710005501

$55.19

7955

Hex. Flange Screw K40 X 16

250001123

$2.00
