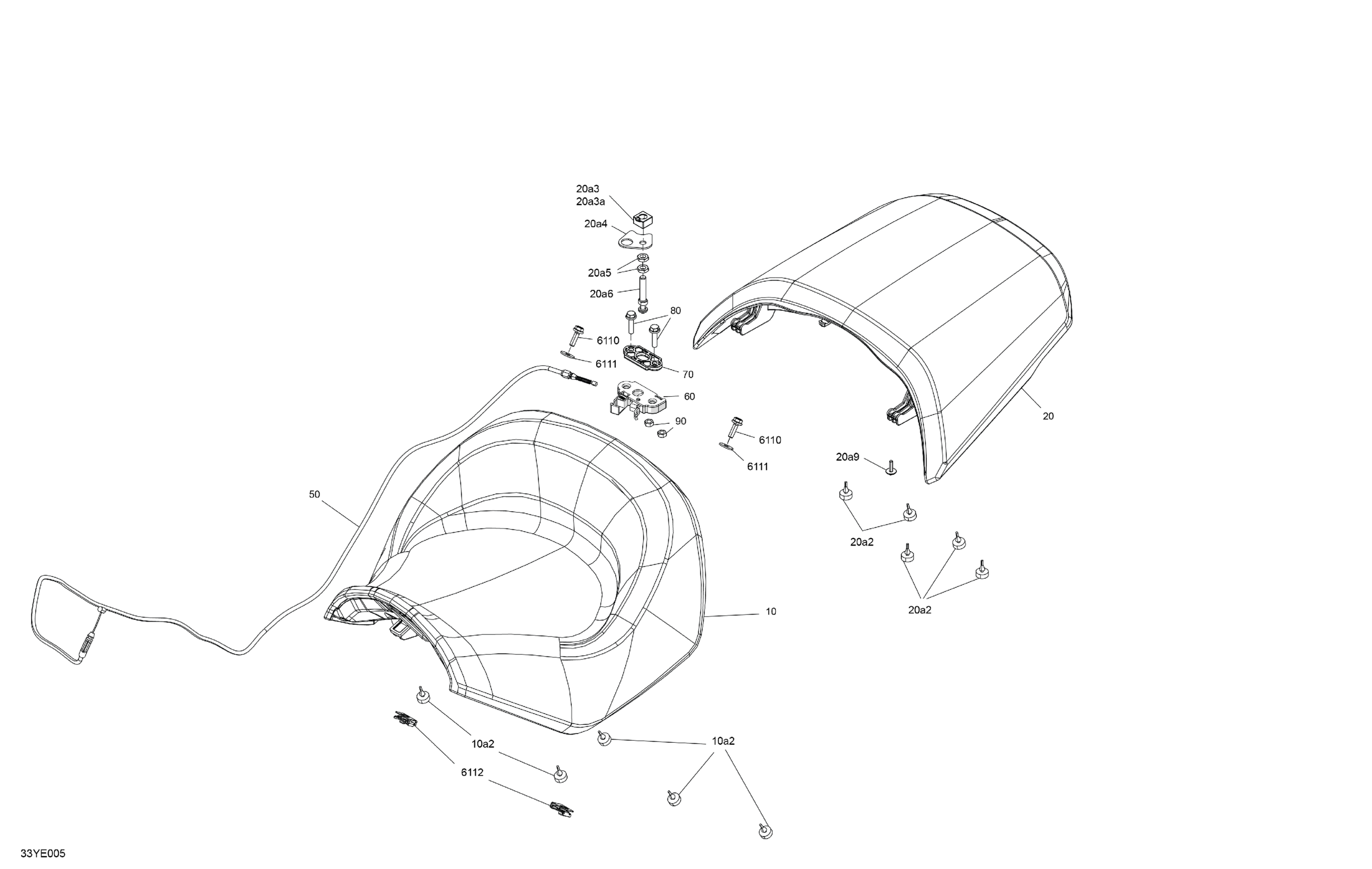

Can-Am F3 T - H6SA - Vegas White, 2025 Body - Seat Diagram

Description

Price

Driver Seat Ass'y | Includes 10 to 10a2

708003922

$490.00

10a2

Seat Stopper

708003866

$3.61

Passenger Seat Ass'y | Includes 20 to 20a9

708004073

$380.00

20a2

Seat Stopper

708003866

$3.61

20a3

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

20a3a

Hex. Elastic Nut M8 Brass

232581200

$1.29

20a4

Washer

708001909

$10.00

20a5

Hex. Jam Nut M8

232180600

$0.56

20a6

Lug

708001741

$24.00

20a9

Screw M4 X 16

250000725

$2.87

Seat Cable

708001743

$54.00

Latch

705018738

$29.00

Brace

708001771

$4.00

Hex. Flange Screw M6 X 25, Scotch Grip

207562556

$2.06

Hex. Nut M6

232061414

$0.44

6110

Hex. Flange Screw M6 X 20

207662044

$1.66

6111

Flat Washer

250200082

$0.35

6112

Panel Nut M6 X 1.0

250100208

$1.07
