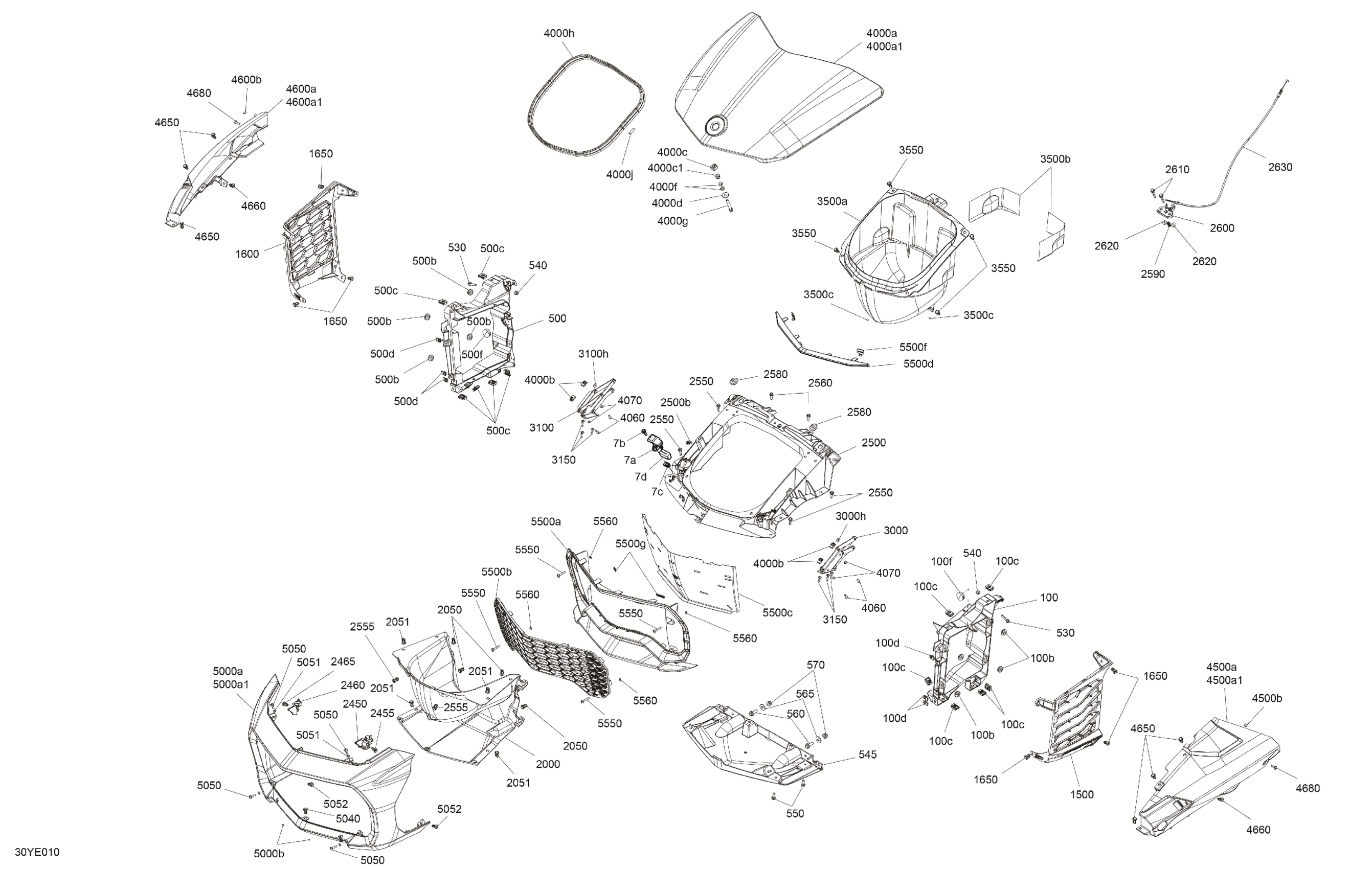

Can-Am F3 T - H6SA - Vegas White, 2025 Body - Front Storage Tray Diagram

#

Description
Price

7a

Pressure And Temperature Sensor

707000995

$70.82

7b

Hex. Flange Screw M6 X 25

207662554

$1.48

7c

Panel Nut M6 X 1.0

250100198

$1.73

7d

Foam Filter

707000586

$6.00

100

LH Breakaway Lateral Tower Leg | Includes 100 to 100f

708200437

$79.00

100b

Overmolded Grommet

293720130

$4.38

100c

Panel Nut M6 X 1.0

250100208

$1.07

100d

Panel Nut M5 X 0.8

250000958

$3.48

100f

Black, Nylon Cap

414916600

$4.32

500

RH Breakaway Lateral Tower Leg | Includes 500 to 500f

708200438

$79.00

500b

Overmolded Grommet

293720130

$4.38

500c

Panel Nut M6 X 1.0

250100208

$1.07

500d

Panel Nut M5 X 0.8

250000958

$3.48

500f

Black, Nylon Cap

414916600

$4.32

530

Hex. Flange Screw M6 X 30

207663054

$3.61

540

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

545

Front Skid Plate

708200405

$30.00

550

Hex. Flange Screw M6 X 20

207662044

$1.66

560

Hex. Flange Screw M8 X 25

207682544

$0.90

565

Flat Washer M8

234082430

$2.06

570

Hex. Flange Elastic Nut M8

233281434

$1.74

1500

LH Side Vent

708200860

$35.00

1600

RH Side Vent

708200859

$35.00

1650

Tuflok Plastic Rivet

293150230

$1.21

2000

Front Air Duct Module

708200362

$89.00

2050

Tuflok Plastic Rivet

293150230

$1.21

2051

Tuflok Plastic Rivet

293150230

$1.21

2450

LH Front Union Link

708200493

$10.00

2455

Tuflok Plastic Rivet

293150230

$1.21

2460

RH Front Union Link

708200494

$10.00

2465

Tuflok Plastic Rivet

293150230

$1.21

2500

Sub-Frame Type Structure | Includes 2500 to 2500b

708200446

$79.00

2500b

Panel Nut M5 X 0.8

250000958

$3.48

2550

Hex. Flange Screw M6 X 20

207662044

$1.66

2555

Tuflok Plastic Rivet

293150230

$1.21

2560

Hexagonal Head Screw

210262050

$1.74

2580

Oval Washer

705000321

$4.64

2590

Spring

705003911

$4.00

2600

Latch

705018738

$29.00

2610

Hex. Flange Screw M6 X 35

207663544

$0.74

2620

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2630

Hood Cable

517305742

$43.00

3000

LH Hood Hinge | Includes 3000 to 3000h

708200673

$92.00

3000h

Flat Washer M5

234051670

$1.74

3100

RH Hood Hinge | Includes 3100 to 3100h

708200674

$92.00

3100h

Flat Washer M5

234051670

$1.74

3150

Torx Truss Screw M5 X 16, T25

250000578

$1.74

3500a

Front Storage Bin

708200403

$70.00

3500b

Heat Shield Sheet

708200490

Unavailable

3500c

Stopper

705006633

$8.00

3550

Tuflok Plastic Rivet

293150230

$1.21

4000a

Vegas White Pearl, Hood

708200677

$540.00

4000a1

Bare, Hood

708200366

$245.00

4000b

Panel Nut M5 X 0.8

250000958

$3.48

4000c

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

4000c1

Hex. Elastic Nut M8 Brass

232581200

$1.29

4000d

Flat Washer 8 mm

234082410

$1.11

4000f

Hex. Jam Nut M8

232180600

$0.56

4000g

Lug

705002223

$26.00

4000h

Neoprene Seal 3000Mm Long

219704371

$45.47

4000j

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

4060

Torx Truss Screw M5 X 16, T25

250000578

$1.74

4070

Flat Washer M5

234051670

$1.74

4500a

Vegas White Pearl, LH Vent Panel

708200679

$220.00

4500a1

Bare, LH Front Fairing

708200401

$55.00

4500b

Polyurethane Stopper

705006634

$5.00

4600a

Vegas White Pearl, RH Vent Panel

708200680

$220.00

4600a1

Bare, RH Front Fairing

708200402

$55.00

4600b

Polyurethane Stopper

705006634

$5.00

4650

Tuflok Plastic Rivet

293150230

$1.21

4660

Tuflok Plastic Rivet

293150230

$1.21

4680

Torx Screw K50 X 16

250000720

$1.39

5000a

Vegas White Front Fascia

708200691

$330.00

5000a1

Bare, Front Fascia

708200698

$150.00

5000b

Stopper

705006633

$8.00

5040

Tuflok Plastic Rivet

293150230

$1.21

5050

Torx Truss Screw M5 X 20

250000715

$2.06

5051

Flat Washer M5

234051670

$1.74

5052

Tuflok Plastic Rivet

293150230

$1.21

5500a

Molded Frame

705009339

$73.00

5500b

Front Grille

705009340

$56.00

5500c

Grille

708200937

$57.00

5500d

Black, Grille Trim

705009952

$18.00

5500f

Mounting Plate

705010273

$10.00

5500g

Flat Clip

705004838

$8.00

5550

Torx Screw Nylon

250000732

$1.74

5560

Flat Washer M5

234051670

$1.74
