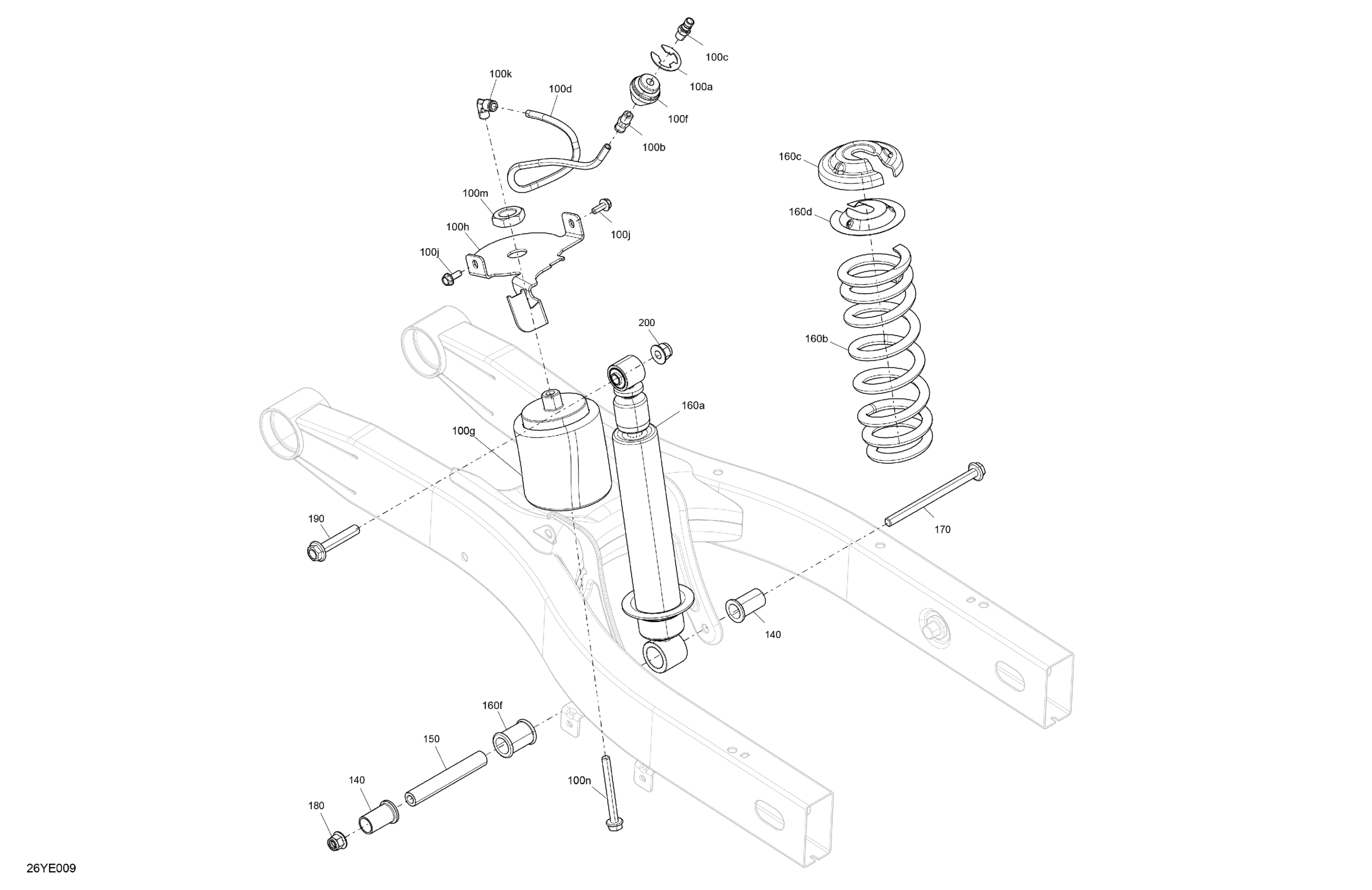

Can-Am F3 T - H6SA - Vegas White, 2025 Suspension - Rear Shock Diagram

Description

Price

100a

Circlip

293370123

$2.69

100b

Connector

706000869

$34.99

100c

Air Valve

706002797

$18.49

100d

Hose

706002679

$9.21

100f

Pneumatic Connector

706004028

$19.49

100g

Air Damper Kit

219800175

$291.49

100h

Support Plate

706002456

$24.99

100j

Hex. Forming Screw M6 X 10

210261050

$1.69

100k

Elbow 90°

706001018

$28.99

100m

Jam Nut M20

250100119

$4.13

100n

Hex. Flange Screw M8 X 75

207687544

$7.41

140

Spacer

706000410

$13.99

150

Shock Absorber Shaft

706000409

$49.99

160a

Shock

706001706

$137.49

160b

Spring

706001707

$49.99

160c

Spring Stopper

503193781

$18.49

160d

Cap

503193782

$10.49

160f

Urethane Cushion

503191609

$18.49

170

Hex. Flange Screw M10 X 140

230604034

$6.77

180

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

190

Hex. Flange Screw M10 X 55

207605554

$7.62

200

Hex. Flange Elastic M10 x 1.5

233201464

$7.51
