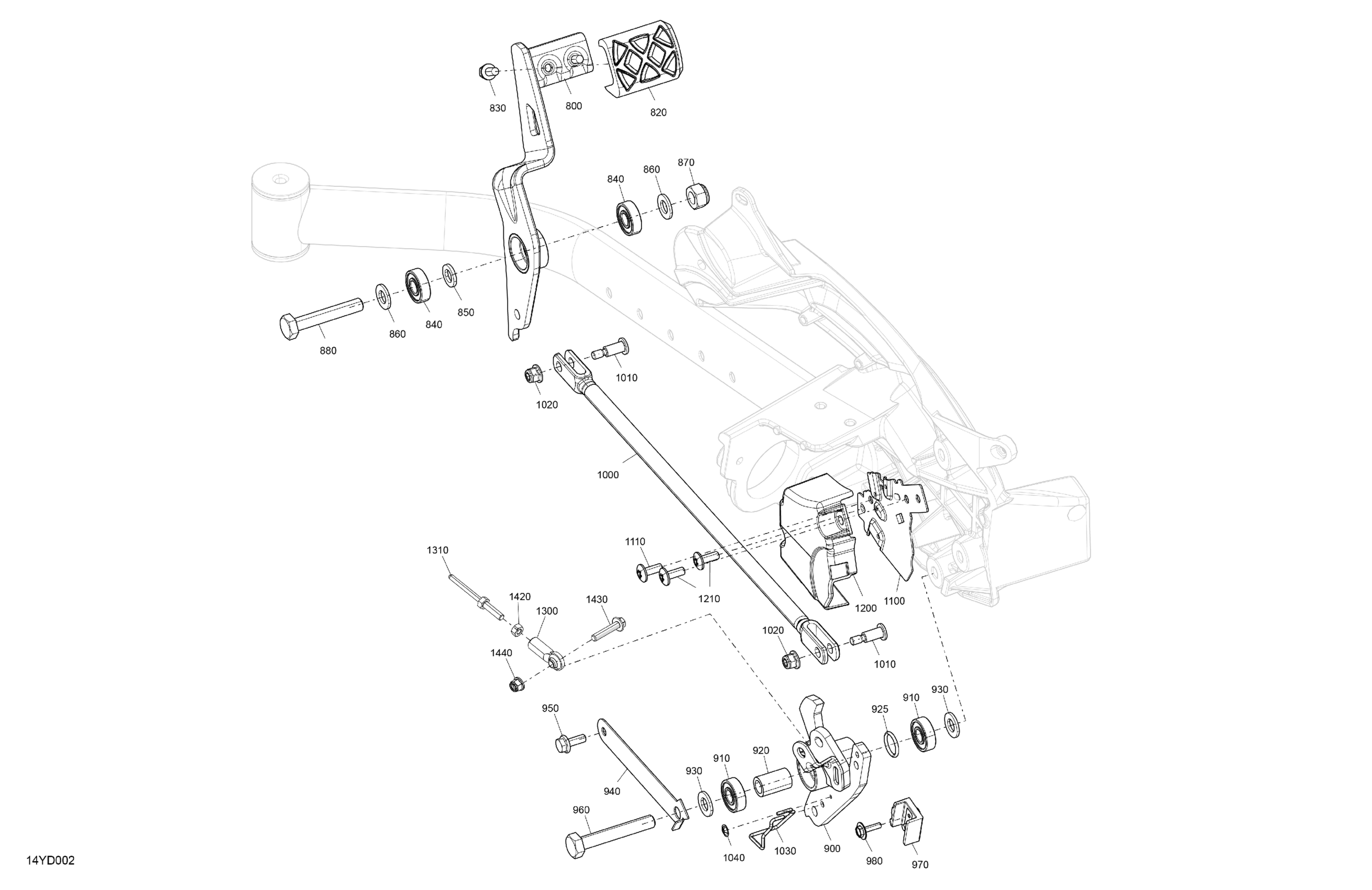

Can-Am F3 T - H6RA - T - White Pearl, 2024 Mechanic - Brake Pedal Diagram

Brake Pedal | Includes 800 to 800a3

705601419

$104.99

Rubber Pad

705004933

$20.99

Hex. Flange Screw M6 X 12

210261250

$1.90

Ball Bearing

705601974

$7.49

Washer

503192496

$0.77

Washer

503183800

$3.28

Elastic Locking Nut M10

233601466

$2.11

Hex. Cap Screw M10 X 60

207006056

$7.51

Master Cylinder Rocker | Includes 900 to 900d

705601308

$49.99

Ball Bearing

705601974

$7.49

Bushing

705600541

$15.36

O-Ring

293300191

$1.46

Washer

503183800

$3.28

Locking Tab | Includes 940 to 940b

705601229

$25.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

Brake Master Cylinder Stopper

705601375

$12.10

Screw M4 X 16

250000725

$3.49

Brake Linkage Kit (313.7 mm) | Includes 1000 to 1000a2a

219400561

$38.49

Brake Linkage Kit (359.3 mm) | Includes 1000 to 1000a2a

219400563

$38.49

Brake Linkage Kit (458.3 mm) | Includes 1000 to 1000a2a

219400566

$42.49

Brake Linkage Kit (505.1 mm) | Includes 1000 to 1000a2a

219400571

$42.49

Brake Linkage Kit (410.7 mm) | Includes 1000 to 1000a2a

219400628

$20.99

Flange Screw M6 X 26

250000714

$3.91

Hex. Flange Elastic Nut M6

233261466

$2.00

Quick-Attach Bracket

705601350

$13.16

Push Nut

250100178

$0.63

Light Switch Bracket | Includes 1100 to 1100b

705601342

$12.16

Torx Head Screw M6 X 16

250000717

$2.11

Switch Deflector

705601343

$13.99

Torx Head Screw M6 X 16

250000717

$2.11

MASTER CYLINDER TIE-ROD END - Call your local BRP dealership

705601340

Unavailable

Piston Rod

705600468

$23.49

Hex. Nut M8

232081414

$0.72

Hex Flange Screw M8 X 40

207684056

$1.47

Elastic Flange Nut M8

233281466

$1.01
