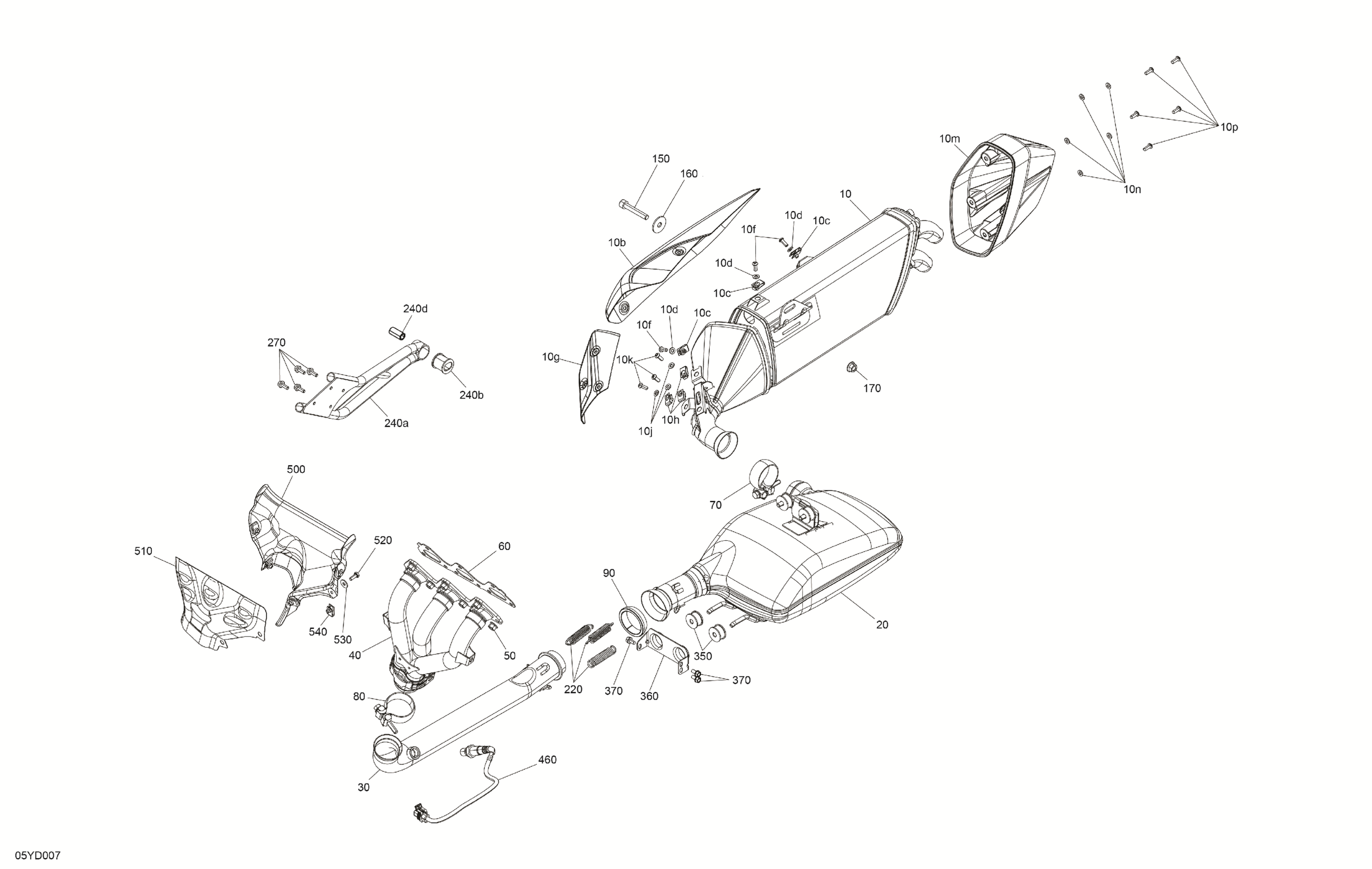

Can-Am F3 T - H6RA - T - White Pearl, 2024 Engine - Exhaust Diagram

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10p

219800442

$953.99

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.49

Panel Nut M6 X 1.0

250100198

$2.11

Black, Flat Washer 6 mm

234061670

$1.25

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

Carbon Black, Heat Shield | Includes 10g to 10g2

707601054

$26.99

Panel Nut M6 X 1.0

250100198

$2.11

Black, Flat Washer 6 mm

234061670

$1.25

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

707601995

$82.49

Black, Flat Washer 6 mm

234061670

$1.25

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

Primary Exhaust Muffler | Includes 20 to 20y

707603359

$1,197.49

Exhaust Tuned Pipe | Includes 30 to 30d

707601605

$338.99

Exhaust Manifold

707603565

$769.99

Hex. Flange Nut

233081436

$2.00

Exhaust Seal

707601985

$7.94

Exhaust Clamp

707600980

$24.99

Exhaust Clamp

707600980

$24.99

Exhaust Gasket

514054174

$28.49

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$7.41

Washer 10 mm

506150000

$2.74

Hex. Flange Nut M10

233101600

$5.29

Spring

415107100

$6.35

Muffler Support | Includes 240a to 240a2

707601683

$67.99

Anti-Vibration Rubber

293830162

$13.22

Bushing | Includes 240d to 240d1

503189282

$4.34

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Anti-Vibration Rubber

707600702

$8.57

Front Bracket | Includes 360 to 360b1a

707600661

$13.22

Hex. Flange Screw M6 X 12

210261250

$1.90

Oxygen Sensor

707600872

$144.99

Heat Shield interior

707603641

$53.99

Heat Shield Exterior

707603642

$53.99

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

Flat Washer M6, Stainless

234062600

$0.77

Panel Nut M6 X 1.0

250100198

$2.11
