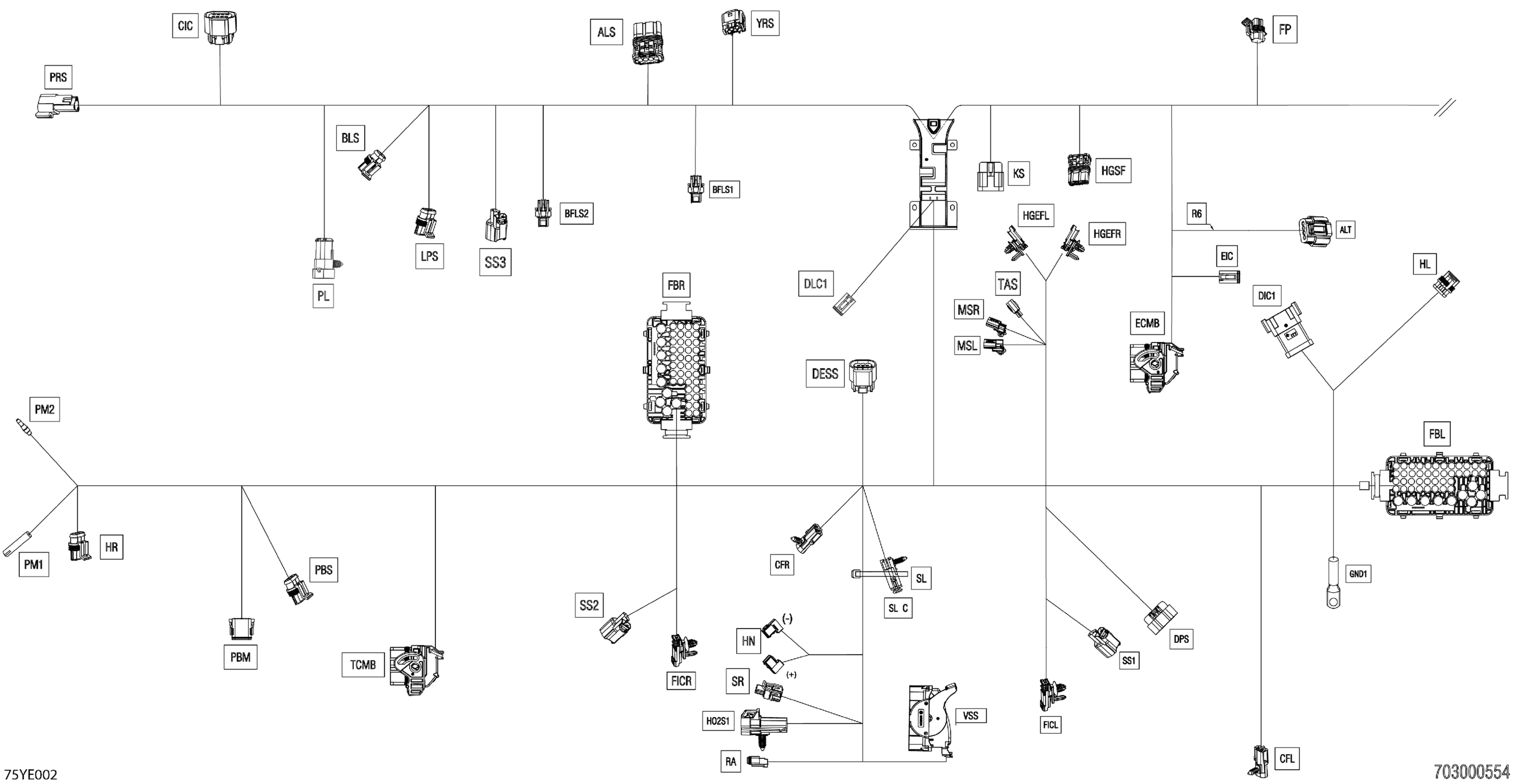

Can-Am F3 SPORT - E6SA - Monolith Black, 2025 Electric - Main Harness - 710010088 Diagram

#

Description
Price

4000

Chassis Wiring Harness

710010088

$910.00

ALS

Jae Housing

515179586

$12.00

ALS

Terminal Jae

710009186

$5.00

ALT

Housing

710009577

$15.00

ALT

Plug

710009584

$8.00

ALT

Seal

710009582

$5.00

ALT

Seal

515179562

$8.00

ALT

Terminal

710009579

$14.00

ALT

Terminal

710009581

$14.00

BFLS1

Female Housing, 2 Circuits

515177192

$6.32

BFLS1

Wire Seal

710001163

$5.10

BFLS1

Female Terminal

710001164

$5.92

BFLS2

Female Housing, 2 Circuits

515177192

$6.32

BFLS2

Wire Seal

710001163

$5.10

BFLS2

Female Terminal

710001164

$5.92

BLS

Female Housing, 2 Circuits

409209500

$13.48

BLS

Wire Seal

278001013

$2.72

BLS

Female Terminal

278001014

$2.72

CFL

Female Housing, 2 Circuits

278000217

$7.59

CFL

Wire Seal

710000504

$4.60

CFL

Male Terminal

409004300

$5.46

CFR

Female Housing, 2 Circuits

278000217

$7.59

CFR

Wire Seal

710000504

$4.60

CFR

Male Terminal

409004300

$5.46

CIC

Housing

710001928

$14.97

CIC

Lock

710006181

$3.98

CIC

Cap

710001225

$7.27

CIC

Seal Wire

710001332

$2.72

CIC

Seal

710001233

$2.55

CIC

Terminal

710001228

$2.72

CIC

Terminal

710001229

$3.02

DESS

Housing Connector

515177287

$7.46

DESS

Lock

710001222

$1.68

DESS

Seal

710001233

$2.55

DESS

Terminal

710001229

$3.02

DIC

Ctc Housing

278004305

$17.66

DIC

Plug

710009532

$6.92

DIC

Terminal

710009530

$4.00

DIC

Terminal

710009531

$14.00

DLC

Female Housing 6 Circuits

710002706

$16.22

DLC

Lock

710002705

$3.61

DLC

Plug

710005437

$3.08

DLC

Female Terminal

710005438

$4.00

DLC

Female Terminal

710005439

$4.28

DPS

Female Housing

710004989

$7.22

DPS

Lock

710001222

$1.68

DPS

Plug

710002075

$2.47

DPS

Wire Seal

278002186

$4.51

DPS

Seal

710003153

$0.94

DPS

Terminal

710001873

$2.02

DPS

Female Terminal

278002187

$5.04

ECMB

Cover, 48 positions

710001591

$10.05

ECMB

Female Terminal Housing, 48 Circuits

710001588

$39.62

ECMB

Plug

710001592

$2.12

ECMB

Plug

710001593

$2.12

ECMB

Terminal_Molex Female

710009464

$1.83

ECMB

Female Terminal

710001590

$1.69

ECMB

Female Terminal

710001727

$2.55

EIC

Female Housing 6 Circuits

710002706

$16.22

EIC

Lock

710002705

$3.61

EIC

Plug

710005437

$3.08

EIC

Female Terminal

710005438

$4.00

EIC

Female Terminal

710005439

$4.28

F1L

Little Fuse, 15 Ampere

710000745

$6.77

F1R

Little Fuse, 15 Ampere

710000745

$6.77

F2L

Little Fuse, 10 Amperes

710000744

$7.24

F2R

Little Fuse, 10 Amperes

710000744

$7.24

F3L

Little Fuse, 10 Amperes

710000744

$7.24

F3R

Little Fuse, 20 Amperes

710000746

$6.77

F4L

Little Fuse, 10 Amperes

710000744

$7.24

F4R

Little Fuse, 5 Amperes

710000742

$7.24

F5L

Little Fuse, 15 Ampere

710000745

$6.77

F5R

Little Fuse, 15 Ampere

710000745

$6.77

F6L

Little Fuse, 5 Amperes

710000742

$7.24

F6R

Little Fuse, 10 Amperes

710000744

$7.24

F7L

Little Fuse, 15 Ampere

710000745

$6.77

F8L

Little Fuse, 15 Ampere

710000745

$6.77

F8R

Fusebox Ass'y

710005623

$46.12

FBL

Seal Plug

278002880

$5.43

FBL

Cap

710001631

$1.37

FBL

Wire Seal

278001065

$6.03

FBL

Wire Seal

278000218

$3.48

FBL

Terminal Joint

710001905

$1.83

FBL

Seal Joint

710007566

$5.00

FBL

Seal Joint

710003132

$0.85

FBL

Female Terminal

710000918

$5.10

FBL

Female Terminal

278002578

$0.86

FBL

Terminal

710001906

$2.98

FBL

M Terminal

710003135

$2.75

FBL

Terminal

710002438

$1.00

FBL

F Terminal

710003125

$3.68

FBL

Cover

710007491

$17.66

FBL C

Fuses Decal

710009803

Unavailable

FBL C

Little Fuse, 20 Amperes

710000746

$6.77

FBL C

Little Fuse, 5 Amperes

710000742

$7.24

FBL C

Little Fuse, 10 Amperes

710000744

$7.24

FBL C

Little Fuse, 15 Ampere

710000745

$6.77

FBR

Fusebox Ass'y

710005623

$46.12

FBR

Seal Plug

278002880

$5.43

FBR

Wire Seal

278001065

$6.03

FBR

Wire Seal

278000218

$3.48

FBR

Terminal Joint

710001905

$1.83

FBR

Seal Joint

710007566

$5.00

FBR

Seal Joint

710003132

$0.85

FBR

Female Terminal

710000918

$5.10

FBR

Female Terminal

278002578

$0.86

FBR

Terminal

710001906

$2.98

FBR

M Terminal

710003135

$2.75

FBR

Terminal

710002438

$1.00

FBR

F Terminal

710003125

$3.68

FBR C

Cover

710007491

$17.66

FBR C

Fuses Decal

710009804

Unavailable

FBR C

Little Fuse, 5 Amperes

710000742

$7.24

FBR C

Little Fuse, 10 Amperes

710000744

$7.24

FBR C

Little Fuse, 15 Ampere

710000745

$6.77

FICL

Housing Jae

515179327

$16.00

FICL

Terminal Jae

515179328

$4.60

FICR

Housing Jae

515179327

$16.00

FICR

Terminal Jae

515179328

$4.60

FP

Housing

710001132

$9.60

FP

Lock

710001133

$4.12

FP

Seal

710000643

$4.12

FP

Seal

278001482

$2.55

FP

Female Terminal

278001481

$3.02

XXX

Male Terminal Housing, 2 Circuits

409209400

$14.97

XXX

Wire Seal

515176621

$7.00

XXX

Male Terminal

515176164

$6.43

XXX

Female Housing, 2 Circuits

409209500

$13.48

XXX

Plug

409013700

$4.42

HGEFL

Housing Jae

515179327

$16.00

HGEFL

Plug

710008941

$21.00

HGEFL

Terminal Jae

515179328

$4.60

HGEFL C

Housing Jae

710009185

$12.00

HGEFL C

Plug

710008941

$21.00

HGEFR

Housing Jae

515179327

$16.00

HGEFR

Plug

710008941

$21.00

HGEFR

Terminal Jae

515179328

$4.60

HGEFR C

Housing Jae

710009185

$12.00

HGEFR C

Plug

710008941

$21.00

HGSF

Jae Housing

515179586

$12.00

HGSF

Plug

710008941

$21.00

HGSF

Terminal Jae

710009186

$5.00

HL

Female Housing, 3 Circuits

409209600

$35.35

HL

Wire Seal

278001013

$2.72

HL

Female Terminal

278001014

$2.72

HN (-)

Female Terminal

710002398

$2.31

HN (-)

Female Terminal

710002399

$1.94

HN (+)

Female Terminal

710002398

$2.31

HN (+)

Female Terminal

710002399

$1.94

HO2S1

Housing

710002466

$2.98

HO2S1

Seal

278001482

$2.55

HO2S1

Gold Terminal

710002597

$2.98

HR

Female Housing, 3 Circuits

409209600

$35.35

HR

Wire Seal

278001013

$2.72

HR

Female Terminal

278001014

$2.72

J1L

Fuse, 40 AMP

710001047

$11.52

J1R

Fuse 30 amp.

710001200

$7.37

J2L

Fuse, 25 AMP

710001046

$4.00

J3L

Fuse, 40 AMP

710001047

$11.52

J5L

Fuse, 20 AMP

710001078

$1.83

J4R

Fuse, 40 AMP

710001047

$11.52

J4L

Fuse, 40 AMP

710001047

$11.52

J5R

Fuse 30 amp.

710001200

$7.37

KS

Housing

710001231

$12.05

KS

Seal Wire

710001332

$2.72

KS

Terminal

710001223

$3.02

LPS

Female Housing, 3 Circuits

409209600

$35.35

LPS

Plug

409013700

$4.42

LPS

Wire Seal

515176621

$7.00

LPS

Female Terminal

710001340

$5.11

MSL

Housing Sumitomo

710008939

$64.00

MSL

Plug

710008931

$8.29

MSL

Connector Seal

710009813

$13.83

MSL

Terminal Sumitomo

710008940

$91.00

MSR

Housing Sumitomo

710008933

$11.00

MSR

Plug

710008931

$8.29

MSR

Connector Seal

710009813

$13.83

MSR

Terminal Sumitomo

710008940

$91.00

PBM

Female Terminal Housing, 12 Circuits

278002377

$46.89

PBM

Female Lock, 12 Circuits

409015700

$3.73

PBM

Sealing Cap

293000052

$2.55

PBM

Female Terminal

278000632

$1.69

PBM

Female Terminal

278001665

$3.73

PBS

Female Housing, 3 Circuits

409209600

$35.35

PBS

Plug

409013700

$4.42

PBS

Wire Seal

515176621

$7.00

PBS

Female Terminal

710001340

$5.11

PL

Housing

710000568

$10.83

PL

Plug

409013700

$4.42

PL

Wire Seal

515176621

$7.00

PL

Male Terminal

515176164

$6.43

PM1

Insulated Sheath

278001007

$3.22

PM1

Female Terminal

710000421

$5.46

PM2

Insulated Sheath

278001008

$3.20

PM2

Female Terminal

278002261

$6.20

PRS

Male Housing

278002378

$10.91

PRS

Male Lock, 3 Circuits

409207600

$3.02

PRS

Male Terminal

710001348

$11.14

R6

Resistor

515179003

$2.00

RA

Connector Deutsch Female 2 Cavities

515179512

$8.00

RA

Female Lock, 2 Circuits

515175675

$4.42

RA

Female Terminal

278000632

$1.69

RY1L

Relay

715900824

$16.22

RY1R

Relay

715900824

$16.22

RY2L

Relay

715900824

$16.22

RY2R

Relay

715900824

$16.22

RY3L

50 Amps Relay

710003143

$13.83

RY3R

50 Amps Relay

710003143

$13.83

RY4L

Relay

715900824

$16.22

RY6R

Relay, 30 AMP

515176774

$19.20

SL

Housing PT

710001151

$5.89

SL

Lock

710001152

$3.48

SL

Seal Wire

710001153

$1.79

SL

Male Terminal

710001154

Unavailable

SL C

Female Housing, 2 Circuits

515177192

$6.32

SL C

Plug

515177374

$2.00

SR

Female Housing, 2 Circuits

515177192

$6.32

SR

Wire Seal

710001163

$5.10

SR

Female Terminal

710001164

$5.92

SS1

Connector 2 Pins

710005669

$2.75

SS1

Seal

710005689

$1.83

SS1

Female Terminal 18-20 AWG

515178348

$1.54

SS2

Connector 2 Pins

710005669

$2.75

SS2

Seal

710005689

$1.83

SS2

Female Terminal 18-20 AWG

515178348

$1.54

SS3

Connector 2 Pins

710005669

$2.75

SS3

Seal

710005689

$1.83

SS3

Female Terminal 18-20 AWG

515178348

$1.54

TAS

Housing Sumitomo

710008934

$10.00

TAS

Connector Seal

710009813

$13.83

TAS

Terminal Sumitomo

710008940

$91.00

TCMB

Cover, 48 positions

710001591

$10.05

TCMB

Housing

710003669

$36.00

TCMB

Plug

710001592

$2.12

TCMB

Plug

710001593

$2.12

TCMB

Female Terminal

710001727

$2.55

TCMB

Terminal_Molex Female

710009464

$1.83

VSS

Cover With CPA

710008720

$18.43

VSS

Connector Bosch Female 46 Cavities

710008719

$46.12

VSS

Housing Fill Plug 2.8

710008725

$24.58

VSS

Connector Seal Bosch1.2

710008729

$46.12

VSS

Connector Seal Bosch 2.8

710008724

$48.00

VSS

Connector Seal Bosch 1.2

710008728

$48.00

VSS

Bosch Female Terminal 4.8

710008721

$7.37

VSS

Bosch Female Terminal 2.8

710008723

$8.00

VSS

Bosch Female Terminal 1.2

710008726

$7.37

YRS

Housing

710003730

$14.75

YRS

Wire Seal

710001118

$1.19

YRS

Female Terminal

710010230

$8.35
