Description

Price

500

Deep Black, Tank Trim | Includes 500 to 500a

705019194

$184.99

500a

Tank Trim

705019189

$194.99

501

Self-Adhesive Spacer

705015250

$3.99

510

Stainless Steel Flat Washer

234062670

$2.11

520

Torx Truss Screw M6 X 20

250000705

$2.11

600a

Monolith Black, LH Low Fairing

705009918

$104.99

600a1

Bare, LH Lower Console Fairing

705007790

$27.99

600b

Acoustic Foam

705009153

$14.49

600c

Panel Nut M5 X 0.8

250000958

$4.23

610

Spacer

705010890

$2.89

620

Tuflok Plastic Rivet

293150230

$1.47

700a

Monolith Black, RH Lower Fairing

705009919

$104.99

700a1

Bare, RH Lower Console Fairing

705007791

$27.99

700b

Acoustic Foam

705009154

$13.49

700c

Panel Nut M5 X 0.8

250000958

$4.23

710

Spacer

705010890

$2.89

720

Tuflok Plastic Rivet

293150230

$1.47

800a

Monolith Black, LH Lateral Fairing

705010847

$254.99

800a1

Bare, LH Fairing

705010851

$109.99

800b

Acoustic Foam

705009155

$16.99

800c

Acoustic Foam

705009157

$8.49

800d

Acoustic Foam

705009159

$16.99

800f

Polyurethane Stopper

705006634

$4.76

800g

Seal 1000Mm Long

219704373

$8.26

800h

Deep Black, LH Scoop

705019327

$214.99

800j

Anchor Pin

705009430

$1.37

800k

Torx Truss PT K40 x 12

250001131

$2.11

800m

Matt Black, Logo Can-Am

704905126

$38.99

800n

LH Fascia Grille

705017994

$19.99

800p

Torx Screw K50 X 16

250000720

$1.69

810

Tuflok Plastic Rivet

293150230

$1.47

820

Torx-Truss M/S Nylon Patch M5X26

250000726

Unavailable

825

Stainless Steel Flat Washer M5

234052670

$1.01

900a

Monolith Black, RH Lateral Fairing

705010839

$254.99

900a1

Bare. RH Fairing

705010835

$109.99

900b

Acoustic Foam

705009156

$16.99

900c

Acoustic Foam

705009158

$8.49

900d

Acoustic Foam

705009160

$16.99

900f

Polyurethane Stopper

705006634

$4.76

900g

Seal 1000Mm Long

219704373

$8.26

900h

Deep Black, RH Scoop

705019328

$214.99

900j

Anchor Pin

705009430

$1.37

900k

Torx Truss PT K40 x 12

250001131

$2.11

900m

Matt Black, Logo Can-Am

704905126

$38.99

900n

RH Fascia Grille

705017995

$19.99

900p

Torx Screw K50 X 16

250000720

$1.69

910

Tuflok Plastic Rivet

293150230

$1.47

920

Torx-Truss M/S Nylon Patch M5X26

250000726

Unavailable

925

Stainless Steel Flat Washer M5

234052670

$1.01

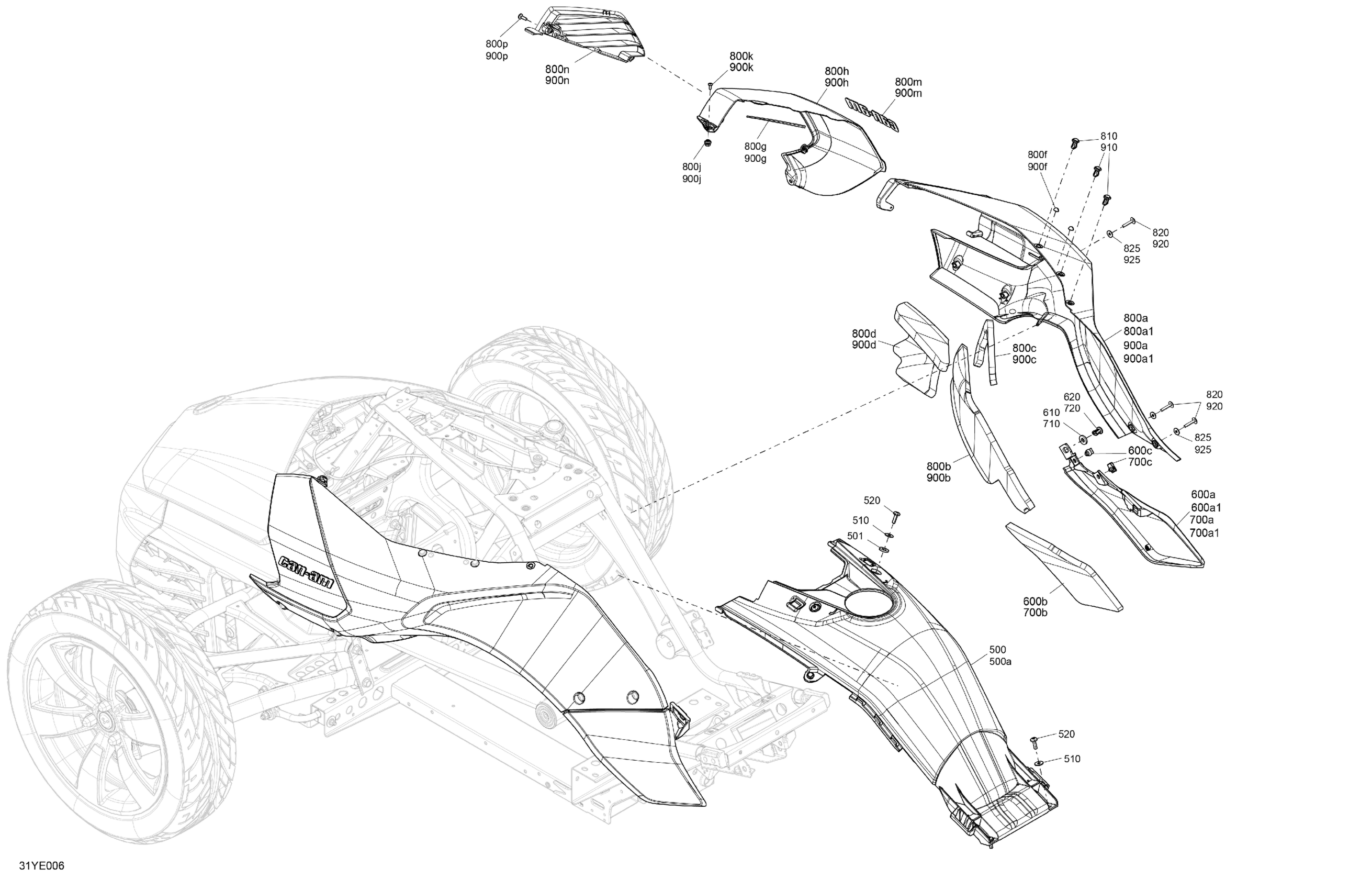

Can-Am On-Road North America - F3 SPORT - E6SA - Monolith Black, 2025 07- Body - System Diagram

Deep Black, Tank Trim | Includes 500 to 500a

Tank Trim

Self-Adhesive Spacer

Stainless Steel Flat Washer

Torx Truss Screw M6 X 20

Monolith Black, LH Low Fairing

Bare, LH Lower Console Fairing

Acoustic Foam

Panel Nut M5 X 0.8

Spacer

Tuflok Plastic Rivet

Monolith Black, RH Lower Fairing

Bare, RH Lower Console Fairing

Acoustic Foam

Panel Nut M5 X 0.8

Spacer

Tuflok Plastic Rivet

Monolith Black, LH Lateral Fairing

Bare, LH Fairing

Acoustic Foam

Acoustic Foam

Acoustic Foam

Polyurethane Stopper

Seal 1000Mm Long

Deep Black, LH Scoop

Anchor Pin

Torx Truss PT K40 x 12

Matt Black, Logo Can-Am

LH Fascia Grille

Torx Screw K50 X 16

Tuflok Plastic Rivet

Torx-Truss M/S Nylon Patch M5X26

Stainless Steel Flat Washer M5

Monolith Black, RH Lateral Fairing

Bare. RH Fairing

Acoustic Foam

Acoustic Foam

Acoustic Foam

Polyurethane Stopper

Seal 1000Mm Long

Deep Black, RH Scoop

Anchor Pin

Torx Truss PT K40 x 12

Matt Black, Logo Can-Am

RH Fascia Grille

Torx Screw K50 X 16

Tuflok Plastic Rivet

Torx-Truss M/S Nylon Patch M5X26

Stainless Steel Flat Washer M5
