Partiron

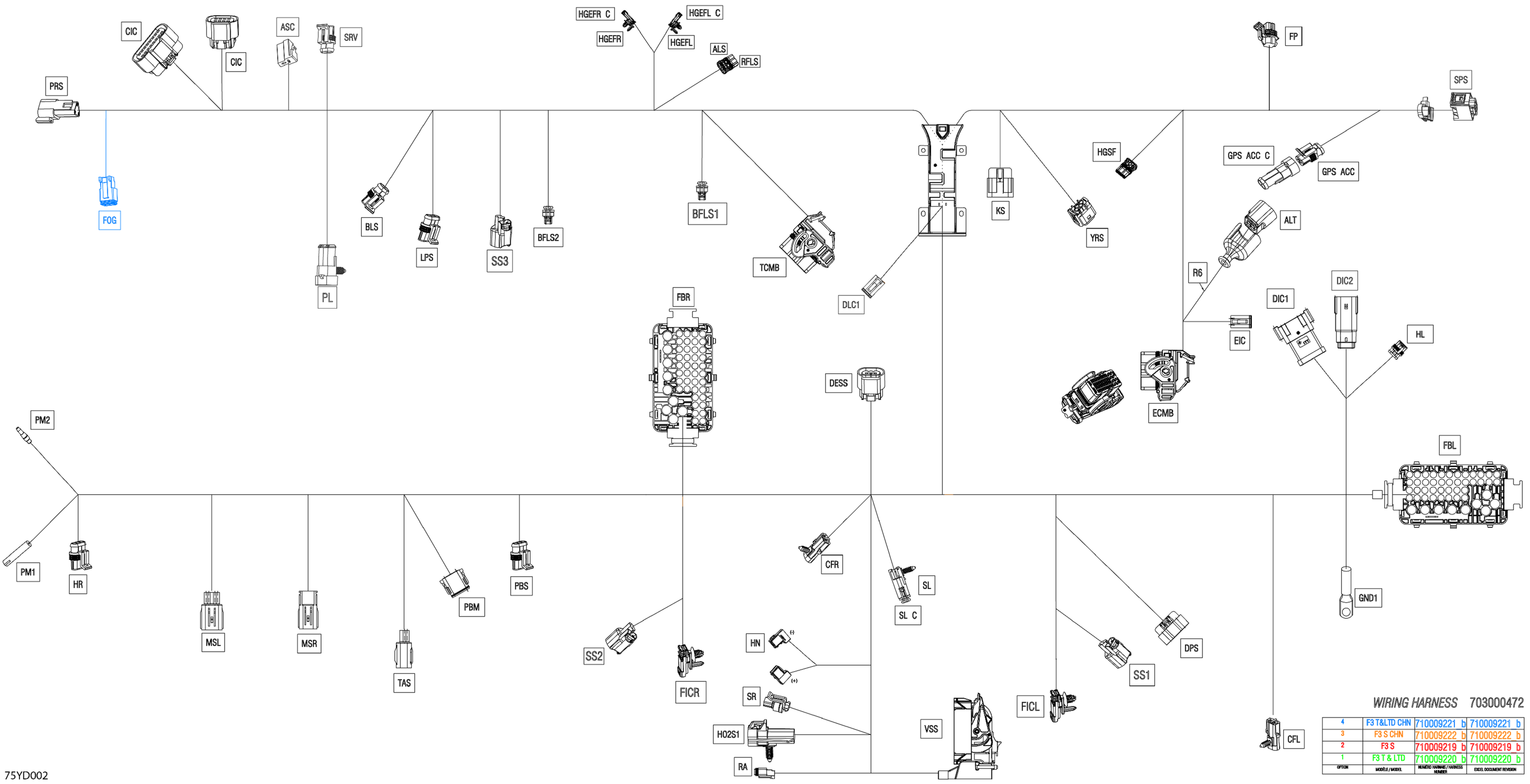

Can-Am F3 SPORT - E6RA- SPORT - Monolith Black, 2024 Electric - Main Harness - 710009219 Diagram

#

Description
Price

ALS

Jae Housing

515179586

$12.18

ALS

Terminal Jae

710009186

$4.55

ALT

Housing

710003545

$23.49

ALT

Cap

710000080

$8.29

ALT

Protector Cap

710004486

$10.49

ALT

Female Terminal

710000335

$2.29

ALT

Terminal

710004475

$3.39

BFLS1

Female Housing, 2 Circuits

515177192

$9.12

BFLS1

Wire Seal

710001163

$7.69

BFLS1

Female Terminal

710001164

$8.89

BFLS2

Female Housing, 2 Circuits

515177192

$9.12

BFLS2

Wire Seal

710001163

$7.69

BFLS2

Female Terminal

710001164

$8.89

BLS

Female Housing, 2 Circuits

409209500

$15.27

BLS

Wire Seal

278001013

$3.28

BLS

Female Terminal

278001014

$3.28

CFL

Female Housing, 2 Circuits

278000217

$9.59

CFL

Wire Seal

710000504

$4.39

CFL

Male Terminal

409004300

$5.61

CFR

Female Housing, 2 Circuits

278000217

$9.59

CFR

Wire Seal

710000504

$4.39

CFR

Male Terminal

409004300

$5.61

CIC

Housing

710001928

$16.86

CIC

Lock

710006181

$3.19

CIC

Cap

710001225

$9.19

CIC

Seal Wire

710001332

$3.28

CIC

Seal

710001233

$3.19

CIC

Terminal

710001228

$3.28

CIC

Terminal

710001229

$3.19

DESS

Housing Connector

515177287

$7.62

DESS

Lock

710001222

$2.09

DESS

Seal

710001233

$3.19

DESS

Terminal

710001229

$3.19

DIC

Ctc Housing

278004305

$17.59

DIC

Plug

710009532

$7.86

DIC

Terminal

710009530

$4.39

DIC

Terminal

710009531

$13.77

DLC1

Female Housing 6 Circuits

710002706

$20.49

DLC1

Lock

710002705

$4.44

DLC1

Plug

710005437

$3.17

DLC1

Female Terminal

710005438

$4.29

DLC1

Female Terminal

710005439

$4.44

DPS

Female Housing

710004989

$7.41

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Terminal

710001873

$2.09

DPS

Female Terminal

278002187

$6.39

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB

Plug

710001592

$2.21

ECMB

Plug

710001593

$2.21

ECMB

Terminal_Molex Female

710009464

$2.09

ECMB

Female Terminal

710001590

$2.09

ECMB

Female Terminal

710001727

$3.19

EIC

Female Housing 6 Circuits

710002706

$20.49

EIC

Lock

710002705

$4.44

EIC

Plug

710005437

$3.17

EIC

Female Terminal

710005438

$4.29

EIC

Female Terminal

710005439

$4.44

F1L

Little Fuse, 15 Ampere

710000745

$8.49

F1R

Little Fuse, 15 Ampere

710000745

$8.49

F2L

Little Fuse, 10 Amperes

710000744

$8.79

F2R

Little Fuse, 10 Amperes

710000744

$8.79

F3L

Little Fuse, 10 Amperes

710000744

$8.79

F4L

Little Fuse, 20 Amperes

710000746

$8.49

F4R

Little Fuse, 10 Amperes

710000744

$8.79

F5L

Little Fuse, 5 Amperes

710000742

$8.79

F5R

Little Fuse, 15 Ampere

710000745

$8.49

F6L

Little Fuse, 15 Ampere

710000745

$8.49

F6R

Little Fuse, 5 Amperes

710000742

$8.79

F7L

Little Fuse, 10 Amperes

710000744

$8.79

F8L

Little Fuse, 15 Ampere

710000745

$8.49

F8R

Little Fuse, 15 Ampere

710000745

$8.49

FBL

Fusebox Ass'y

710005623

$49.49

FBL

Seal Plug

278002880

$7.86

FBL

Cap

710001631

$1.09

FBL

Wire Seal

278001065

$7.69

FBL

Wire Seal

278000218

$4.39

FBL

Terminal Joint

710001905

$2.09

FBL

Seal Joint

710007566

$4.65

FBL

Seal Joint

710003132

$0.90

FBL

Female Terminal

710000918

$7.69

FBL

Female Terminal

278002578

$1.04

FBL

Terminal

710001906

$2.54

FBL

M Terminal

710003135

$2.79

FBL

Terminal

710002438

$1.39

FBL

F Terminal

710003125

$3.39

FBL C

Cover

710007491

$17.99

FBL C

Fuses Decal

710009803

$0.01

FBL C

Little Fuse, 20 Amperes

710000746

$8.49

FBL C

Little Fuse, 5 Amperes

710000742

$8.79

FBL C

Little Fuse, 10 Amperes

710000744

$8.79

FBL C

Little Fuse, 15 Ampere

710000745

$8.49

FBR

Fusebox Ass'y

710005623

$49.49

FBR

Seal Plug

278002880

$7.86

FBR

Wire Seal

278001065

$7.69

FBR

Wire Seal

278000218

$4.39

FBR

Terminal Joint

710001905

$2.09

FBR

Seal Joint

710007566

$4.65

FBR

Seal Joint

710003132

$0.90

FBR

Female Terminal

710000918

$7.69

FBR

Female Terminal

278002578

$1.04

FBR

Terminal

710001906

$2.54

FBR

M Terminal

710003135

$2.79

FBR

Terminal

710002438

$1.39

FBR

F Terminal

710003125

$3.39

FBR C

Cover

710007491

$17.99

FBR C

Fuses Decal

710009804

$0.01

FBR C

Little Fuse, 5 Amperes

710000742

$8.79

FBR C

Little Fuse, 10 Amperes

710000744

$8.79

FBR C

Little Fuse, 15 Ampere

710000745

$8.49

FICL

Housing Jae

515179327

$16.18

FICL

Terminal Jae

515179328

$4.55

FICR

Housing Jae

515179327

$16.18

FICR

Terminal Jae

515179328

$4.55

FP

Housing

710001132

$9.85

FP

Lock

710001133

$4.39

FP

Seal

710000643

$4.39

FP

Seal

278001482

$3.19

FP

Female Terminal

278001481

$3.49

GPS ACC

Male Terminal Housing, 2 Circuits

409209400

$16.86

GPS ACC

Wire Seal

515176621

$7.49

GPS ACC

Male Terminal

515176164

$7.16

GPS ACC C

Female Housing, 2 Circuits

409209500

$15.27

GPS ACC C

Plug

409013700

$4.55

HGEFL

Housing Jae

515179327

$16.18

HGEFL

Plug

710008941

$20.99

HGEFL

Terminal Jae

515179328

$4.55

HGEFL C

Housing Jae

710009185

$12.18

HGEFL C

Plug

710008941

$20.99

HGEFR

Housing Jae

515179327

$16.18

HGEFR

Plug

710008941

$20.99

HGEFR

Terminal Jae

515179328

$4.55

HGEFR C

Housing Jae

710009185

$12.18

HGEFR C

Plug

710008941

$20.99

HGSF

Jae Housing

515179586

$12.18

HGSF

Plug

710008941

$20.99

HGSF

Terminal Jae

710009186

$4.55

HL

Female Housing, 3 Circuits

409209600

$35.99

HL

Wire Seal

278001013

$3.28

HL

Female Terminal

278001014

$3.28

HN (-)

Female Terminal

710002398

$2.19

HN (-)

Female Terminal

710002399

$2.40

HN (+)

Female Terminal

710002398

$2.19

HN (+)

Female Terminal

710002399

$2.40

HO2S1

Housing

710002466

$3.19

HO2S1

Seal

278001482

$3.19

HO2S1

Gold Terminal

710002597

$3.19

HR

Female Housing, 3 Circuits

409209600

$35.99

HR

Wire Seal

278001013

$3.28

HR

Female Terminal

278001014

$3.28

J1L

Fuse, 40 AMP

710001047

$11.80

J1R

Fuse 30 amp.

710001200

$7.20

J2L

Fuse, 25 AMP

710001046

$3.91

J3L

Fuse, 40 AMP

710001047

$11.80

J3R

Fuse, 20 AMP

710001078

$1.90

J4L

Fuse, 40 AMP

710001047

$11.80

J4R

Fuse, 40 AMP

710001047

$11.80

J5R

Fuse 30 amp.

710001200

$7.20

KS

Housing

710001231

$13.99

KS

Seal Wire

710001332

$3.28

KS

Terminal

710001223

$3.19

LPS

Female Housing, 3 Circuits

409209600

$35.99

LPS

Plug

409013700

$4.55

LPS

Wire Seal

515176621

$7.49

LPS

Female Terminal

710001340

$5.89

MSL

Housing Sumitomo

710008939

$63.99

MSL

Plug

710008931

$8.79

MSL

Connector Seal

710009813

$13.77

MSL

Terminal Sumitomo

710008940

$91.49

MSR

Housing Sumitomo

710008933

$11.11

MSR

Plug

710008931

$8.79

MSR

Connector Seal

710009813

$13.77

MSR

Terminal Sumitomo

710008940

$91.49

PBM

Female Terminal Housing, 12 Circuits

278002377

$49.99

PBM

Female Lock, 12 Circuits

409015700

$4.55

PBM

Sealing Cap

293000052

$3.19

PBM

Female Terminal

278000632

$2.09

PBM

Female Terminal

278001665

$4.55

PBS

Female Housing, 3 Circuits

409209600

$35.99

PBS

Plug

409013700

$4.55

PBS

Wire Seal

515176621

$7.49

PBS

Female Terminal

710001340

$5.89

PL

Housing

710000568

$11.12

PL

Plug

409013700

$4.55

PL

Wire Seal

515176621

$7.49

PL

Male Terminal

515176164

$7.16

PM1

Insulated Sheath

278001007

$3.58

PM1

Female Terminal

710000421

$6.11

PM2

Insulated Sheath

278001008

$3.28

PM2

Female Terminal

278002261

$7.55

PRS

Male Housing

278002378

$13.99

PRS

Male Lock, 3 Circuits

409207600

$3.19

PRS

Male Terminal

710001348

$12.99

R6

Resistor

515179003

$2.24

RA

Connector Deutsch Female 2 Cavities

515179512

$8.39

RA

Female Lock, 2 Circuits

515175675

$4.55

RA

Female Terminal

278000632

$2.09

RY1L

Relay

715900824

$21.99

RY1R

Relay

715900824

$21.99

RY2L

Relay

715900824

$21.99

RY2R

Relay

715900824

$21.99

RY3L

50 Amps Relay

710003143

$13.76

RY3R

50 Amps Relay

710003143

$13.76

RY4L

Relay

715900824

$21.99

RY6R

Relay, 30 AMP

515176774

$21.99

SL

Housing PT

710001151

$6.03

SL

Lock

710001152

$4.39

SL

Seal Wire

710001153

$2.21

SL

Male Terminal

710001154

$13.49

SL C

Female Housing, 2 Circuits

515177192

$9.12

SL C

Plug

515177374

$2.09

SR

Female Housing, 2 Circuits

515177192

$9.12

SR

Wire Seal

710001163

$7.69

SR

Female Terminal

710001164

$8.89

SS1

Connector 2 Pins

710005669

$2.24

SS1

Seal

710005689

$2.09

SS1

Female Terminal 18-20 AWG

515178348

$2.09

SS2

Connector 2 Pins

710005669

$2.24

SS2

Seal

710005689

$2.09

SS2

Female Terminal 18-20 AWG

515178348

$2.09

SS3

Connector 2 Pins

710005669

$2.24

SS3

Seal

710005689

$2.09

SS3

Female Terminal 18-20 AWG

515178348

$2.09

TAS

Housing Sumitomo

710008934

$10.49

TAS

Connector Seal

710009813

$13.77

TAS

Terminal Sumitomo

710008940

$91.49

TCMB

Cover, 48 positions

710001591

$12.18

TCMB

Housing

710003669

$35.99

TCMB

Plug

710001592

$2.21

TCMB

Plug

710001593

$2.21

TCMB

Female Terminal

710001727

$3.19

TCMB

Terminal_Molex Female

710009464

$2.09

VSS

RH Connector Cover

710002772

$4.55

VSS

Module Protector VCM

710002381

$20.99

VSS

Housing

710002768

$17.59

VSS

Plug

710001258

$3.29

VSS

Wire Seal

278000999

$3.19

VSS

Wire Seal

710001159

$6.35

VSS

Wire Seal

710006230

$1.49

VSS

Female Terminal

710000837

$5.39

VSS

Terminal

710002773

$2.09

VSS

Terminal

710002775

$0.74

YRS

Housing

710003730

$14.83

YRS

Wire Seal

710006230

$1.49

YRS

Female Terminal

710004243

$0.98
