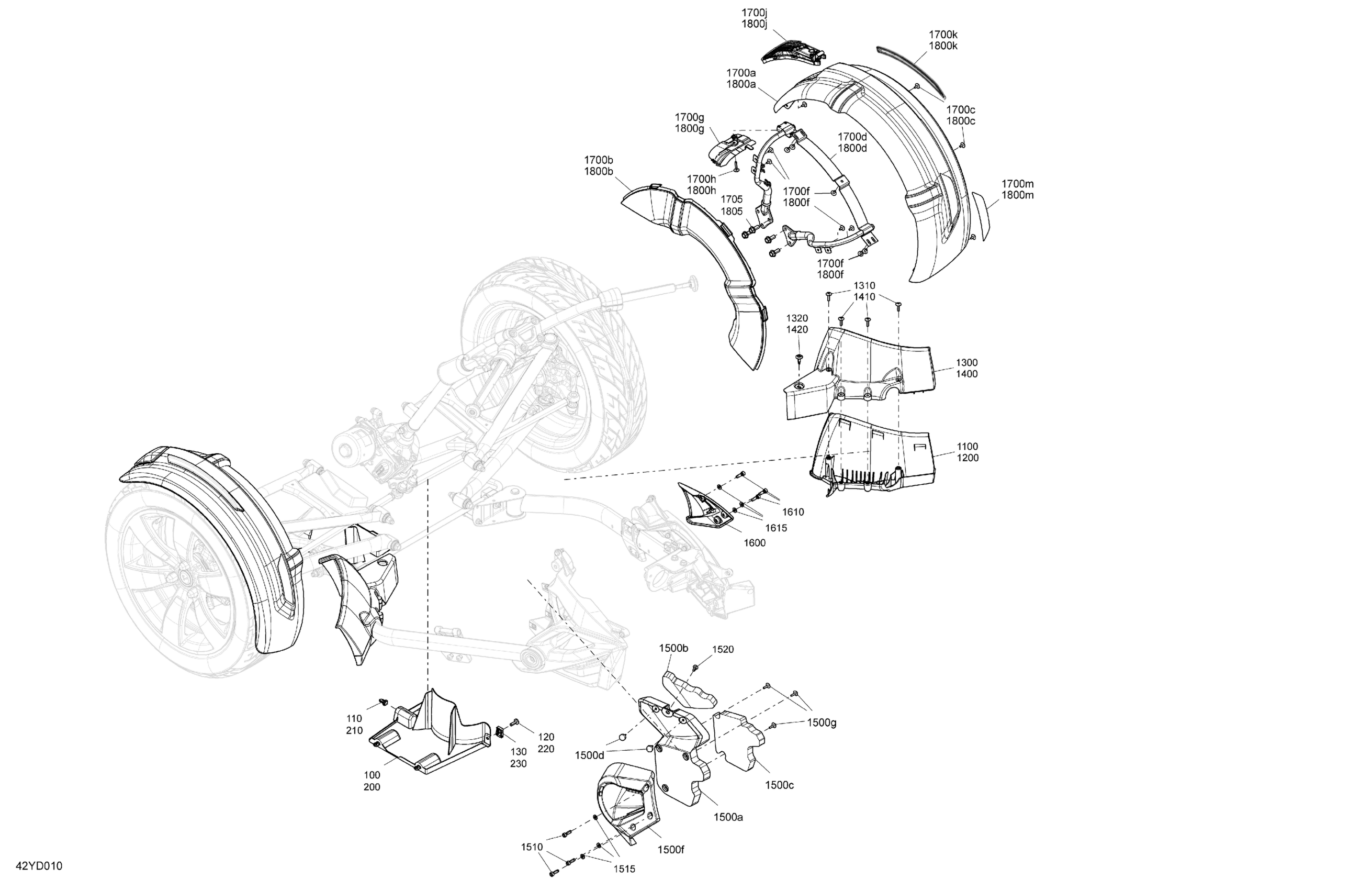

Can-Am F3 LIMITED - Special Edition - H7RA - LIMITED - Cognac, 2024 Body - Front Fender Diagram

#

Description
Price

100

LH Front Skid Plate

705007785

$28.00

110

Tuflok Plastic Rivet

293150230

$1.21

120

Torx Truss Screw M6 X 20

250000705

$1.74

130

Panel Nut M6 X 1.0

250100208

$1.07

200

RH Front Skid Plate

705007786

$28.00

210

Tuflok Plastic Rivet

293150230

$1.21

220

Torx Truss Screw M6 X 20

250000705

$1.74

230

Panel Nut M6 X 1.0

250100208

$1.07

1100

LH Deflector

705007794

$44.00

1200

RH Deflector

705007795

$44.00

1300

LH Shell

705009027

$44.00

1310

Torx Truss M5 X 20

250000586

$3.61

1320

Tuflock Phillips Plastic Screw

414745900

$1.30

1400

RH Shell

705009029

$44.00

1410

Torx Truss M5 X 20

250000586

$3.61

1420

Tuflock Phillips Plastic Screw

414745900

$1.30

1500a

LH Acoustic Fairing

705009144

$46.00

1500b

Acoustic Foam

705009344

$8.00

1500c

Acoustic Foam

705009162

$14.00

1500d

Rubber Stopper

708000759

$3.61

1500f

LH Engine Fairing

705007780

$46.00

1500g

Screw M4 X 16

250000725

$2.87

1510

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

1515

Stainless Flat Washer M6

234061600

$0.25

1520

Dart, Fastex

293730024

$1.05

1600

RH Engine Fairing

705007781

$46.00

1610

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

1615

Stainless Flat Washer M6

234061600

$0.25

1700a

Copper Metalic, LH Front Fender

705018585

$205.00

1700b

LH Inner Fender

705012975

$55.00

1700c

Plastite Screw M4 X 10

250000805

$1.74

1700d

LH Front Fender Support Ass'y

705013519

$89.00

1700f

Plastite Screw M4 X 10

250000805

$1.74

1700g

LH Light Protector

705013499

$2.00

1700h

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

1700j

LH Front Position Light

710007008

$120.00

1700k

Yellow, LH Reflector

705012404

$18.00

1700m

Red, Rear Reflector

705014736

$5.00

1705

Hexagonal Screw M8X25 Dog Point

250000773

$2.00

1800a

Copper Metalic, RH Front Fender

705018586

$310.00

1800b

RH Inner Fender

705012867

$56.00

1800c

Plastite Screw M4 X 10

250000805

$1.74

1800d

RH Front Fender Support Ass'y

705012981

$89.00

1800f

Plastite Screw M4 X 10

250000805

$1.74

1800g

RH Light Protector

705013530

$2.00

1800h

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

1800j

RH Front Position Light

710007009

$120.00

1800k

Yellow, RH Reflector

705012405

$18.00

1800m

Red, Rear Reflector

705014736

$5.00

1805

Hexagonal Screw M8X25 Dog Point

250000773

$2.00
