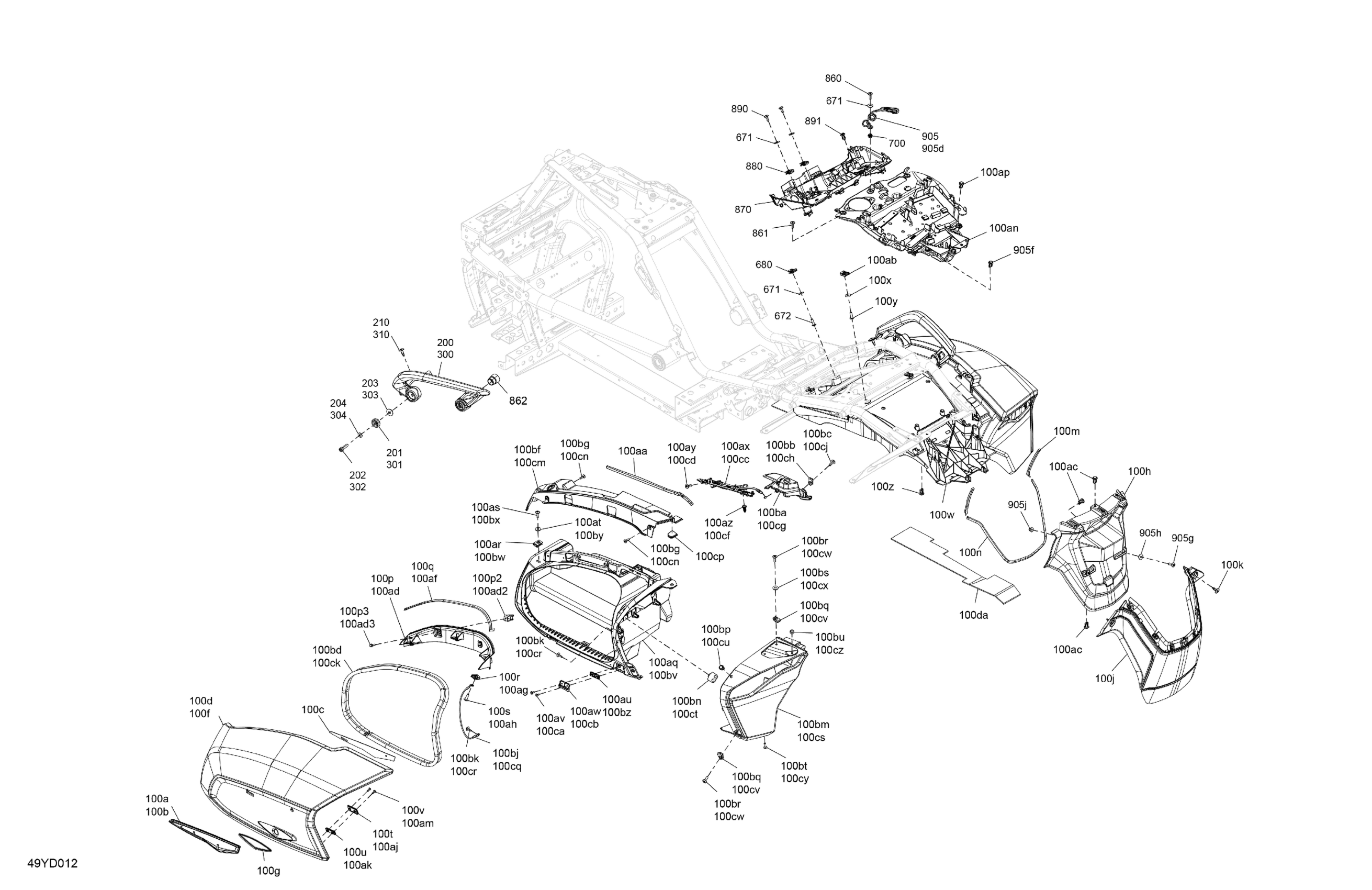

Can-Am F3 LIMITED - Platine Edition - H9RA - LIMITED - Steel Black Metallic, 2024 Body - Cargo Diagram

#

Description
Price

100a

Sterling Silver, LH Box Trim

708304396

$129.99

100b

Sterling Silver, RH Box Trim

708304397

$129.99

100c

Trim Box Double Face Tape

704905469

$3.69

100d

Steel Black, LH Trunck Cover

708301268

$459.99

100f

Steel Black, RH Trunk Cover

708301269

$459.99

100g

Red, Lateral Reflector

705003412

$15.49

100h

Rear Fender

708301584

$204.99

100j

Rear Fender Extention

708301747

$204.99

100k

Tuflock Phillips Plastic Screw

414745900

$1.69

100m

Neoprene Seal, 150 MM

293250385

$3.39

100n

Seal 1000Mm Long

219704373

$8.26

100p

LH Inner Cover | Included 100s to 100s3

708301663

$83.99

100p2

Striker Cover

708303255

$6.89

100p3

Hex. Forming Screw M5 X 16

210251650

$1.15

100q

Gasket, Neoprene 2000Mm Long

219704476

$15.36

100r

Panel Nut M6 X 1.0

250100208

$1.46

100s

Torx Screw M6 X 20

250000722

$1.68

100t

Female Hinge

708302044

$11.49

100u

Retaining Plate

708302046

$13.49

100v

Torx Truss PT K40 x 12

250001131

$2.11

100w

Wheel Arch Protector

708304879

$47.99

100x

Stainless Steel Flat Washer

234062670

$2.11

100y

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100z

Tuflok Plastic Rivet

293150230

$1.47

100aa

Neoprene Seal, 150 MM

293250385

$3.39

100ab

Panel Nut M6 X 1.0

250100208

$1.46

100ac

Tuflok Plastic Rivet

293150230

$1.47

100ad

RH Inner Cover | Included 100ah to 100ah3

708301664

$83.99

100ad2

Striker Cover

708303255

$6.89

100ad3

Hex. Forming Screw M5 X 16

210251650

$1.15

100af

Gasket, Neoprene 2000Mm Long

219704476

$15.36

100ag

Panel Nut M6 X 1.0

250100208

$1.46

100ah

Torx Screw M6 X 20

250000722

$1.68

100aj

Female Hinge

708302044

$11.49

100ak

Retaining Plate

708302046

$13.49

100am

Torx Truss PT K40 x 12

250001131

$2.11

100an

Electronic Component Support

708302571

$23.99

100ap

Tuflok Plastic Rivet

293150230

$1.47

100aq

LH Cargo

708302404

$94.99

100ar

Panel Nut M6 X 1.0

250100208

$1.46

100as

Torx Screw M6 X 20

250000722

$1.68

100at

Stainless Steel Flat Washer

234062670

$2.11

100au

Retaining Plate

708302046

$13.49

100av

Torx Truss PT K40 x 12

250001131

$2.11

100aw

Male Hinge

708302045

$11.49

100ax

LH Latch Assembly

708301794

$154.99

100ay

Torx Screw M6 X 20

250000722

$1.68

100az

Connector Holder

710002033

$3.39

100ba

LH Control

708301222

$43.99

100bb

Panel Nut M6 X 1.0

250100198

$2.11

100bc

Torx Screw M6 X 20

250000722

$1.68

100bd

Trim 3000Mm Long

219704540

$109.99

100bf

LH Cargo Fairing

708302401

$78.99

100bg

Torx Screw K50 X 16

250000720

$1.69

100bj

Retainer Cable

708300385

$38.99

100bk

Screw PT Type K-50 X 16

250000959

$2.11

100bm

LH Light Support

708302283

$49.99

100bn

Brace

708302284

$12.99

100bp

Tuflok Plastic Rivet

293150230

$1.47

100bq

Panel Nut M6 X 1.0

250100198

$2.11

100br

Torx Screw M6 X 20

250000722

$1.68

100bs

Stainless Steel Flat Washer

234062670

$2.11

100bt

Torx Screw K50 X 16

250000720

$1.69

100bu

Rubber Bumper

293830005

$8.09

100bv

RH Cargo

708302405

$94.99

100bw

Panel Nut M6 X 1.0

250100208

$1.46

100bx

Torx Screw M6 X 20

250000722

$1.68

100by

Stainless Steel Flat Washer

234062670

$2.11

100bz

Retaining Plate

708302046

$13.49

100ca

Torx Truss PT K40 x 12

250001131

$2.11

100cb

Male Hinge

708302045

$11.49

100cc

RH Latch Assembly

708301795

$154.99

100cd

Torx Screw M6 X 20

250000722

$1.68

100cf

Connector Holder

710002033

$3.39

100cg

RH Control

708301697

$43.99

100ch

Panel Nut M6 X 1.0

250100198

$2.11

100cj

Torx Screw M6 X 20

250000722

$1.68

100ck

Trim 3000Mm Long

219704540

$109.99

100cm

RH Cargo Fairing

708302402

$78.99

100cn

Torx Screw K50 X 16

250000720

$1.69

100cp

Antena Cap

708301805

$3.89

100cq

Retainer Cable

708300385

$38.99

100cr

Screw PT Type K-50 X 16

250000959

$2.11

100cs

RH Light Support

708302285

$49.99

100ct

Brace

708302284

$12.99

100cu

Tuflok Plastic Rivet

293150230

$1.47

100cv

Panel Nut M6 X 1.0

250100198

$2.11

100cw

Torx Screw M6 X 20

250000722

$1.68

100cx

Stainless Steel Flat Washer

234062670

$2.11

100cy

Torx Screw K50 X 16

250000720

$1.69

100cz

Rubber Bumper

293830005

$8.09

100da

Heat Shield

705016875

$47.99

200

LH Rear Heated Holding Handle

708304250

$174.99

201

Bushing

708302461

$19.49

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

203

Flat Washer 8 mm

234082410

$1.47

204

Stainless Steel Flat Washer 8 mm

234081670

$0.67

210

Tuflock Phillips Plastic Screw

414745900

$1.69

300

RH Rear Heated Holding Handle

708304251

$142.99

301

Bushing

708302461

$19.49

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

303

Flat Washer 8 mm

234082410

$1.47

304

Stainless Steel Flat Washer 8 mm

234081670

$0.67

310

Tuflock Phillips Plastic Screw

414745900

$1.69

671

Stainless Steel Flat Washer

234062670

$2.11

672

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

680

Panel Nut M6 X 1.0

250100208

$1.46

700

Insert Half Hex Body M6 x 1.0

250100199

$3.19

860

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

861

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

862

Anchorage Socket

708303508

$1.29

870

Cargo Rear Support

708301698

$89.99

880

Panel Nut M6 X 1.0

250100208

$1.46

890

Torx Truss M8 X 16

250000881

$2.11

891

Tuflok Plastic Rivet

293150230

$1.47

905

Lanyard | Included 905 to 905d

708002532

$22.99

905d

Cord Decal

704905127

Unavailable

905f

Tuflok Plastic Rivet

293150230

$1.47

905g

Torx Truss Screw M6 X 20

250000350

$5.29

905h

Flat Washer M6, Stainless

234062600

$0.77

905j

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
