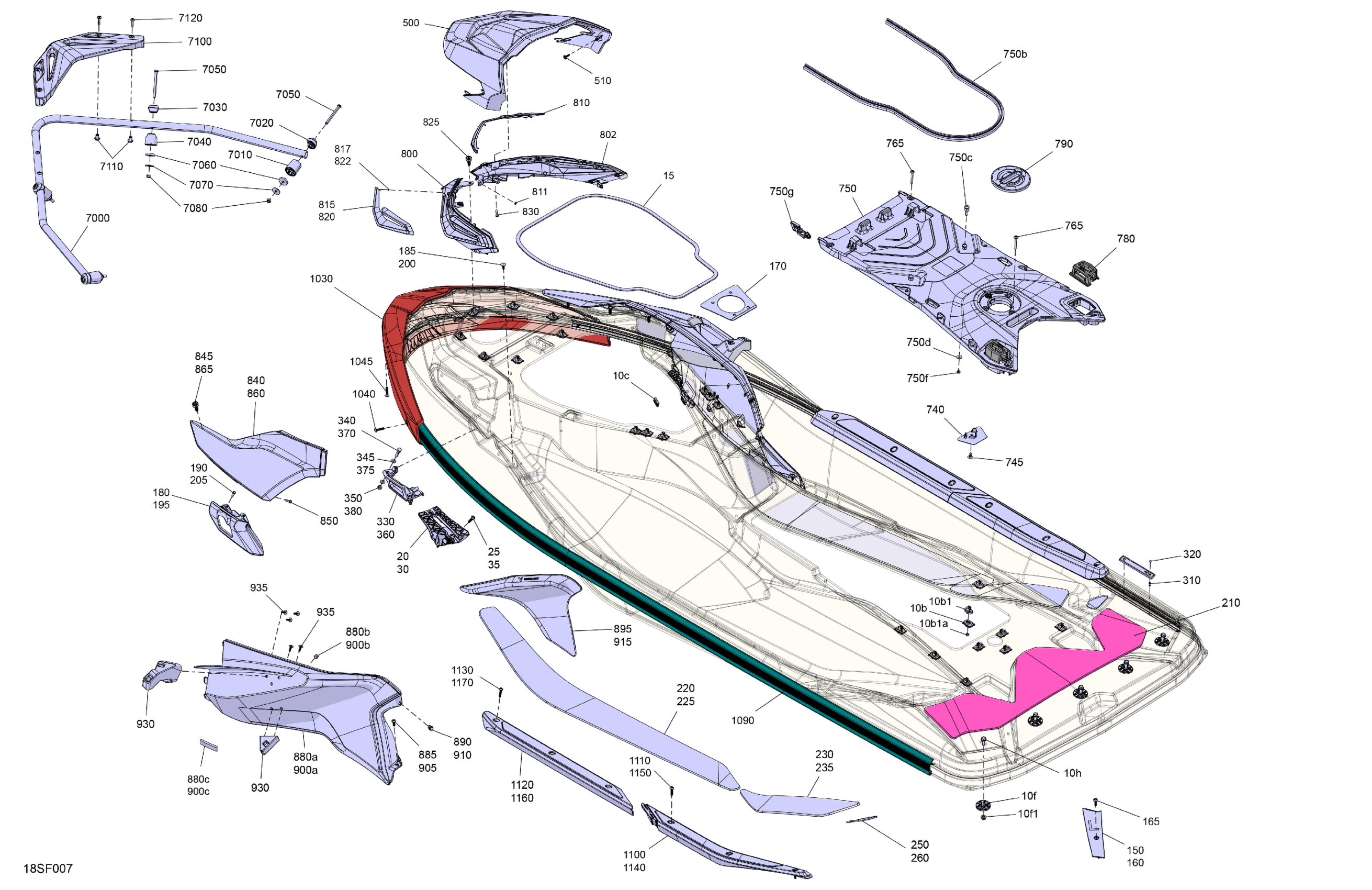

Sea-doo EXPLORER - PRO - 170 - 17TA - Iceland Grey - Audio, 2026 Body - System Diagram

#

Description
Price

10b

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$1.87

10b1

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.61

10b1a

Elastic Stop Nut M6, Brass

232561200

$3.51

10c

Anchorage Tie Wrap

293750109

$0.99

10f

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

10f1

Hex. Flange Nut M8

233181600

$0.86

10h

Hex. Flange Screw M8 X 25

207682544

$0.90

15

Gasket

293250401

$8.80

20

LH Support

291004714

$7.15

25

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

30

RH Support

291004715

$7.87

35

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

150

LH Shim

291005176

$13.52

160

RH Shim

291005177

$11.78

165

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

170

Gasket

293250451

$19.47

180

LH Shell Cleat

291004661

$7.15

185

Black, Dart

293730011

$0.79

190

Hex. Screw 10-14 X 7/8”

211000023

$2.91

195

RH Shell Cleat

291004719

$7.15

200

Black, Dart

293730011

$0.79

205

Hex. Screw 10-14 X 7/8”

211000023

$2.91

210

Deck Anti Slip Mat

291005817

$42.22

220

Deep Black, LH Front Anti Slip Footrest Mat

291006841

$27.27

225

Deep Black, RH Front Anti Slip Footrest Mat

291006842

$27.27

230

LH Rear Anti Slip Mat

291005353

$13.62

235

RH Rear Anti Slip Mat

291005352

$13.62

250

LH Anti Slip Mat

291005883

$4.42

260

RH Anti Slip Mat

291005884

$4.42

310

Rivet 1/8"

293150016

$0.29

320

Black, Snap Cap

293000014

$0.85

330

LH Cleat

291004559

$6.37

340

Hex. Screw M8 X 35

207083560

$1.40

345

Stainless, Flat Washer 8 mm

234081600

$0.46

350

Hex. Elastic Nut M8 Brass

232581200

$1.29

360

RH Cleat

291004720

$6.37

370

Hex. Screw M8 X 35

207083560

$1.40

375

Stainless, Flat Washer 8 mm

234081600

$0.46

380

Hex. Elastic Nut M8 Brass

232581200

$1.29

500

Deep Black, Hood

291005579

$76.02

510

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

740

Hose Protector

291004941

$4.22

745

Black, Dart

293730011

$0.79

750

Access Cover Ass'y | Includes 750 to 750g

291006468

$197.73

750b

Was 293200062 Seal

219704366

$61.72

750c

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

750d

Flat Washer M6, Stainless

234062600

$0.64

750f

Elastic Stop Nut M6, Brass

232561200

$3.51

750g

Seal

291004717

$9.04

765

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

780

Linq Bases Kit

295100858

$21.42

790

Access Cap Ass'y

291004481

$7.15

800

LH Front Hood Grille Ass'y

291005911

$23.37

802

RH Front Hood Grille Ass'y

291005913

$23.37

810

Deep Black, Front Trim

291006090

$22.07

811

Push Nut

250100206

$0.83

815

Iceland Grey, LH Trim

291006108

$25.34

817

Push Nut

250100206

$0.83

820

Iceland Grey, RH Trim

291006107

$25.34

822

Push Nut

250100206

$0.83

825

Dard

293730071

$0.90

830

Hex. Screw 10-14 X 7/8”

211000023

$2.91

840

Iceland Grey, LH Front Body Panel

291004676

$64.32

845

Dard

293730071

$0.90

850

Hex. Screw 10-14 X 7/8”

211000023

$2.91

860

Iceland Grey, RH Front Body Panel

291004775

$64.32

865

Dard

293730071

$0.90

880a

Iceland Grey, LH Central Body Panel

291005824

$141.01

880b

Rubber Bumper

293830005

$5.33

880c

Stopper

278003618

$0.70

885

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.12

890

Tuflok Plastic Rivet

293150230

$1.21

895

Deep Black, LH Knee Pad Ass'y

291005051

$97.47

900a

Iceland Gray, RH Central Body Panel

291004784

$129.32

900b

Rubber Bumper

293830005

$5.33

900c

Stopper

278003618

$0.70

905

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.12

910

Tuflok Plastic Rivet

293150230

$1.21

915

Deep Black, RH Knee Pad Ass'y

291005052

$97.47

930

LH Rod Holder Top Adapter

295100948

$26.62

935

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

1030

Front Bumper

291004452

$62.37

1040

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1045

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1090

Lateral Bumper

291006726

$129.82

1100

Neon Yellow, LH Rear Footrest Ass'y

291005786

$46.12

1110

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

1120

Neon Yellow, LH Front Footrest Ass'y

291005788

$46.12

1130

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

1140

Neon Yellow, RH Rear Footrest Ass'y

291005790

$46.12

1150

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

1160

Neon Yellow, RH Front Footrest Ass'y

291005792

$46.12

1170

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

7000

Neon Yellow, Front Tube

269801493

$157.92

7010

Deep Black, Rear Lower Anchorage Tube

269801147

$11.04

7020

Deep Black, Upper Rear Anchorage Tube

269801146

$11.04

7030

Deep Black, Upper Front Anchorage Tube

269801145

$11.04

7040

Deep Black, Front Lower Anchorage Tube

269801144

$11.04

7050

Socket Head Screw M8 X 90

250001227

$6.70

7060

Rubber Washer

293830037

$2.68

7070

Flat Washer 8 mm, Stainless

250200175

$1.29

7080

Hex. Elastic Nut M8 Brass

232581200

$1.29

7100

Support Tube

269801193

$42.87

7110

Brass Insert

511001251

$3.22

7120

Screw Torx Truss Head M6 X 30

250001381

$3.39
