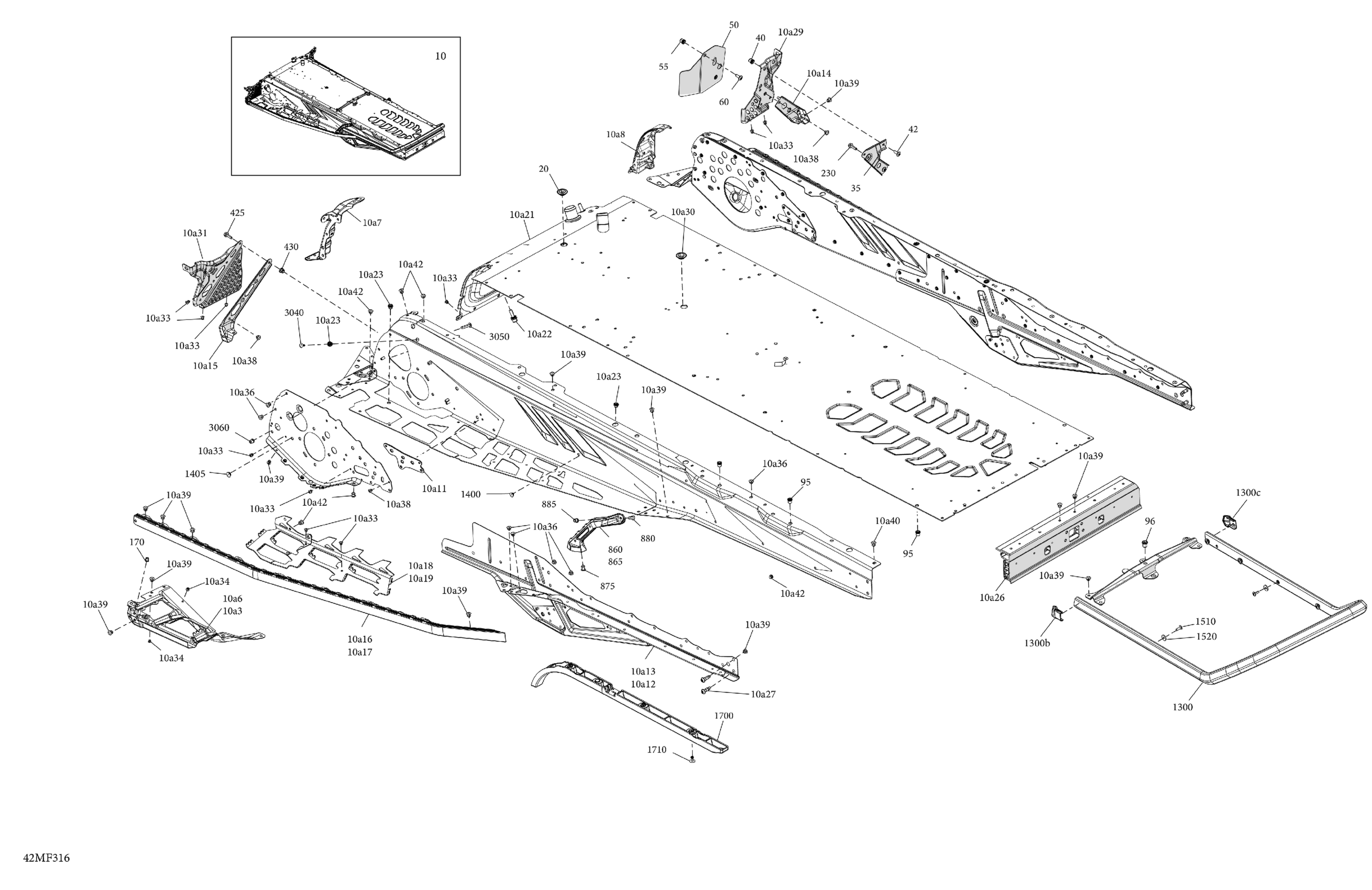

Ski-Doo North America - EXPEDITION - XTREM - 900 ACE TURBO R - APTB - Scandi Blue - 20X154X1.8CST8 Track, 2026 06- Frame - System - Rear Section Diagram

Scandi Blue, Chassis Tunnel Module 154

415131002

$3.00

Deep Black, RH Footrest Reinforcement

518332803

$86.99

Deep Black, LH Footrest Reinforcement

518332802

$18.49

LH Frame Corner 20

518329368

$56.99

RH Molded Spacer

518329369

$19.99

Front Suspension Arm Reinforcement

518336141

$17.99

LH Rear Suspension Support

518337124

$109.99

RH Rear Suspension Support

518337125

$109.99

RH Footrest Reinforcement

518329789

$19.99

Deep Black, LH Chassis Reinforcement

518332924

$21.99

RH Roller

518329648

$194.99

LH Roller

518328452

$194.99

RH Footrest Reinforcement

518336064

$35.99

LH Footrest Reinforcement

518336063

$35.99

Radiator Tunnel 154

518336023

$625.49

Protruding Stud M8 x 22

250300652

$4.44

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Rear Cap

518332315

$72.99

Torx Button Head Screw M8 X 25

250001151

$2.00

RH Footrest

518331822

$24.49

Black, Plug

293730052

$9.19

LH Footrest

518332978

$43.99

Rivet Avibulb 3/16

293150203

$2.09

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

Henrob Rivet

293150245

$1.69

Rivet Ornit 6,5 X 10.5

293150264

$2.40

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

RH Stirrup Reinforcement

518331727

$19.99

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

Heat Shield

518331823

$10.49

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

Insert

293450275

$12.99

Insert

293450275

$12.99

Insert M5 - 0.8

293450267

$4.59

Hex. Flange Screw M6 X 20

207562056

$2.11

Hex. Flange Screw M6 X 20

207562056

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Deep Black, LH Rear Footrest Reinforcement

518335168

$18.49

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

Rivet Ornit 6,5 X 18.5

293150268

$2.40

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Rear Bumper | Includes 1300 to 1300c

518331043

$111.49

LH Cap

520001837

Unavailable

Cap

520001841

Unavailable

Black, Dart 8 mm

293730047

$2.21

Black, Dart 10 mm

293730060

$4.55

Front Protector

518329982

$18.49

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

Dart

293730079

$2.09

Magna-Grip Rivet 6.4 X 65,9

293150154

Unavailable

Collar Huck Magna-Grip 6.4

293150149

$0.48

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37
