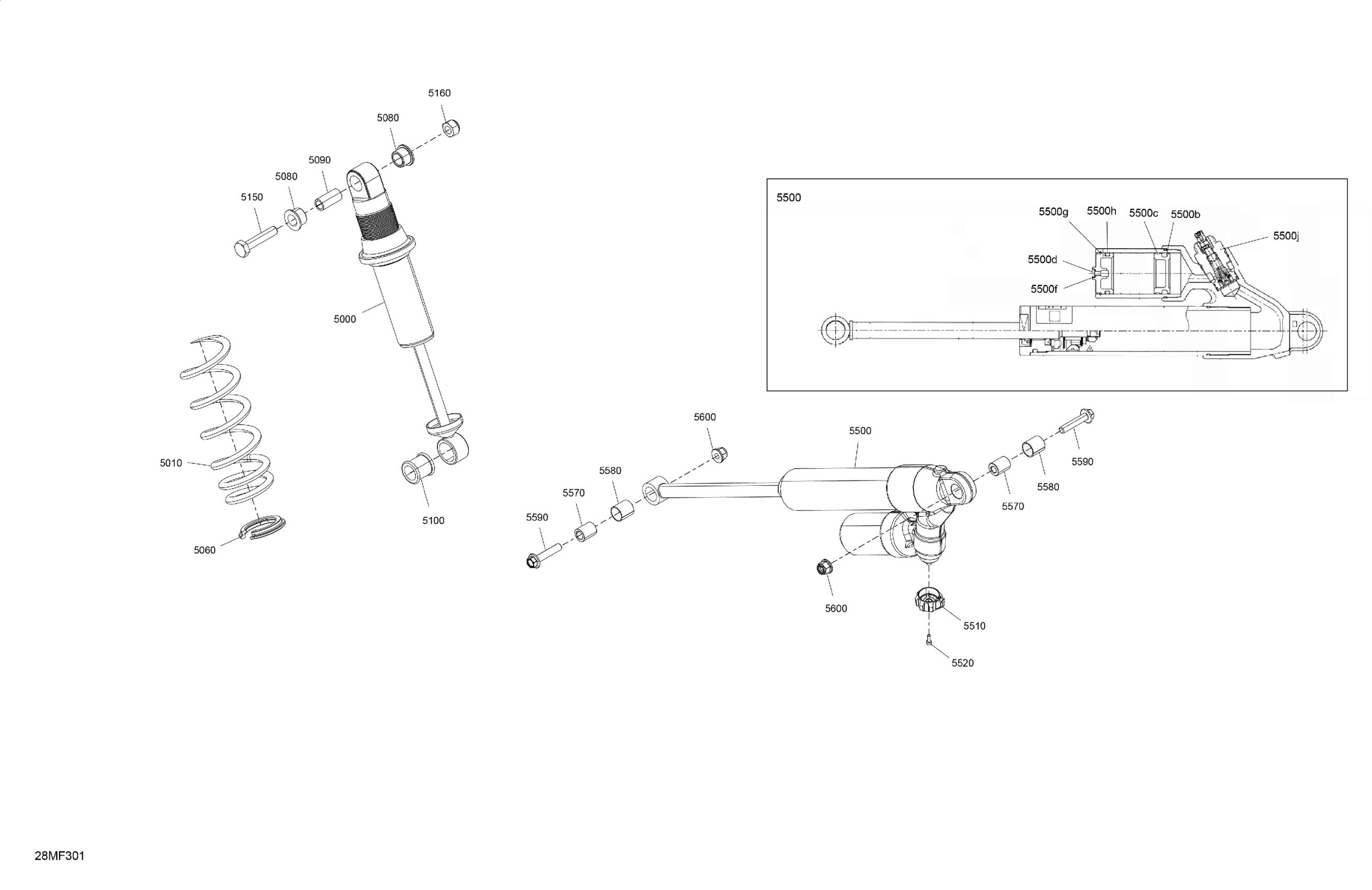

Ski-Doo EXPEDITION - XTREM - 850 E-TEC - ADTA - Deep Black - 20X154X1.8CST8 Track, 2026 Suspension - Rear Shocks Diagram

Description

Price

5000

Central Shock Absorber 36

503196321

$434.49

5010

Spring

503194990

$63.99

5060

Spring Stopper

503194270

$19.99

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5160

Elastic Locking Nut M10

233601466

$2.11

5500

Rear Shock Absorber Kyb Pro 36 | Includes 5500 to 5500j

503197681

$877.49

5500b

O-Ring

415093807

$35.99

5500c

Piston Ring | Not Shown

415093806

$16.86

5500d

Screw | Not Shown

505070399

$4.12

5500f

O-Ring

505070400

$4.54

5500g

Circlip - Call your local BRP dealership

715900076

$4.12

5500h

O-Ring

415093804

$4.54

5500j

Valve

503195958

$98.99

5510

Adjustment Button

503196209

$2.79

5520

Allen Screw M3 X 0.5 X 10

250000644

$2.11

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex Flange Screw M8 X 40

207684056

$1.47

5600

Elastic Flange Nut M8

233281466

$1.01
