Description

Price

10

Deep Black, Chassis Tunnel Module 137 | Includes 10 to 10a36

415131077

Unavailable

10a3a

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10a6

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10a7

Front Suspension Arm Reinforcement

518327233

$4.69

10a8

RH Rear Suspension Support This part replaces 518330095.

518334405

$94.99

10a9

LH Rear Suspension Support This part replaces 518330094.

518334404

$104.99

10a10

RH Stirrup Reinforcement | Includes 10a10 to 10a10a

518335978

$19.99

10a10a

Stirrup Reinforcement

518334507

$21.99

10a11

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a12

LH Member Fixation Plate

518330299

$18.99

10a13

RH Under Chassis Reinforcement

518331745

$19.99

10a14

RH Roller

518328451

$194.99

10a15

LH Roller

518328452

$194.99

10a16

LH Footrest Reinforcement

518332296

$21.99

10a17

RH Footrest Reinforcement

518332297

$21.99

10a18

Radiator Tunnel 137

518336336

$749.99

10a19

Protruding Stud M8 x 22

250300652

$4.44

10a20

Clinch Nut M6 Hexsert

605636003

$4.23

10a22

Rear Cap

518328990

$22.49

10a23

LH Footrest

518333858

$40.99

10a30

Avex Rivet

390909100

$0.30

10a31

Avex Rivet

390909200

$0.30

10a33

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a34

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a35

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10a36

Rivet Ornit 6,5 X 16.5

293150267

$2.40

20

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

175

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

600

Front Battery Charger Support

518334262

$70.99

605

Rivet Ornit 6,5 X 10.5

293150264

$2.40

610

Rear Battery Charger Support

518334779

$27.99

615

Rivet Ornit 6,5 X 10.5

293150264

$2.40

1300

Rear Bumper | Includes 1300 to 1300b

518328746

$116.99

1300b

Cap

520001612

$10.99

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

3040

Dart

293730079

$2.09

3500

Seat Anchorage

518334925

$46.99

3510

Rivet Avibulb 3/16

293150203

$2.09

4500

Bright White, RH Footrest

518335989

$81.99

4510

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4520

Torx Head Screw M6 X 16

250000717

$2.11

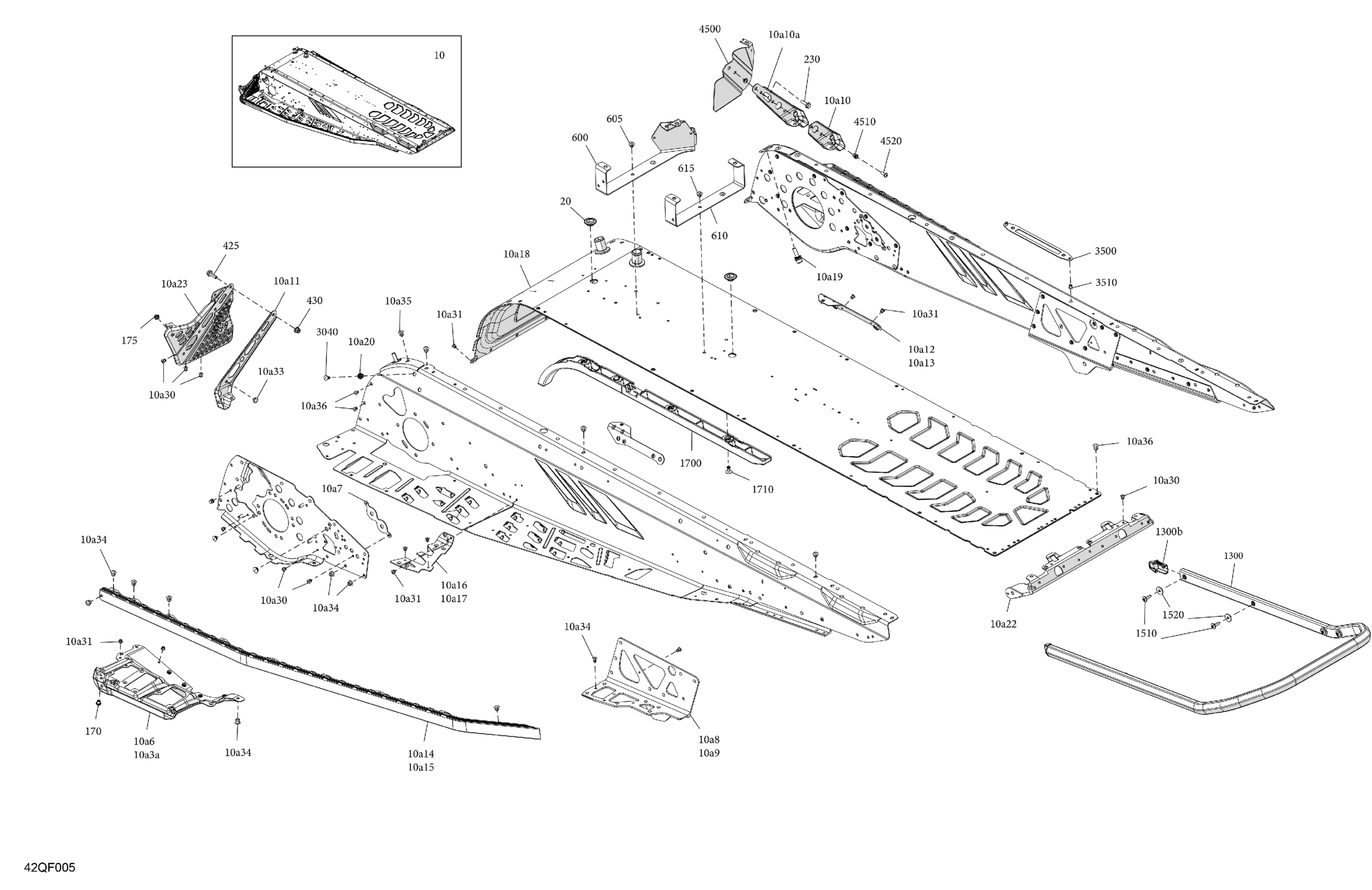

Ski-Doo EXPEDITION - SPORT - ESTC - Bright White - 15X137X1.6C Track, 2026 Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 137 | Includes 10 to 10a36

Deep Black, RH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

Front Suspension Arm Reinforcement

RH Rear Suspension Support This part replaces 518330095.

LH Rear Suspension Support This part replaces 518330094.

RH Stirrup Reinforcement | Includes 10a10 to 10a10a

Stirrup Reinforcement

Deep Black, LH Chassis Reinforcement

LH Member Fixation Plate

RH Under Chassis Reinforcement

RH Roller

LH Roller

LH Footrest Reinforcement

RH Footrest Reinforcement

Radiator Tunnel 137

Protruding Stud M8 x 22

Clinch Nut M6 Hexsert

Rear Cap

LH Footrest

Avex Rivet

Avex Rivet

Rivet Ornit 6,5 X 10.5

Rivet Ornit 6,5 X 12.5

Ornit Rivet 6,5 X 14.5

Rivet Ornit 6,5 X 16.5

Black, Plug

Insert M5 - 0.8

Insert M5 - 0.8

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Front Battery Charger Support

Rivet Ornit 6,5 X 10.5

Rear Battery Charger Support

Rivet Ornit 6,5 X 10.5

Rear Bumper | Includes 1300 to 1300b

Cap

Torx Screw M6 X 1.0 X 18, Scotch Grip

Flat Washer

Front Protector

Black, Ornit Rivet 3/16 X ,675

Dart

Seat Anchorage

Rivet Avibulb 3/16

Bright White, RH Footrest

Hex. Flange Elastic Nut M6 x 1.0

Torx Head Screw M6 X 16
