Partiron

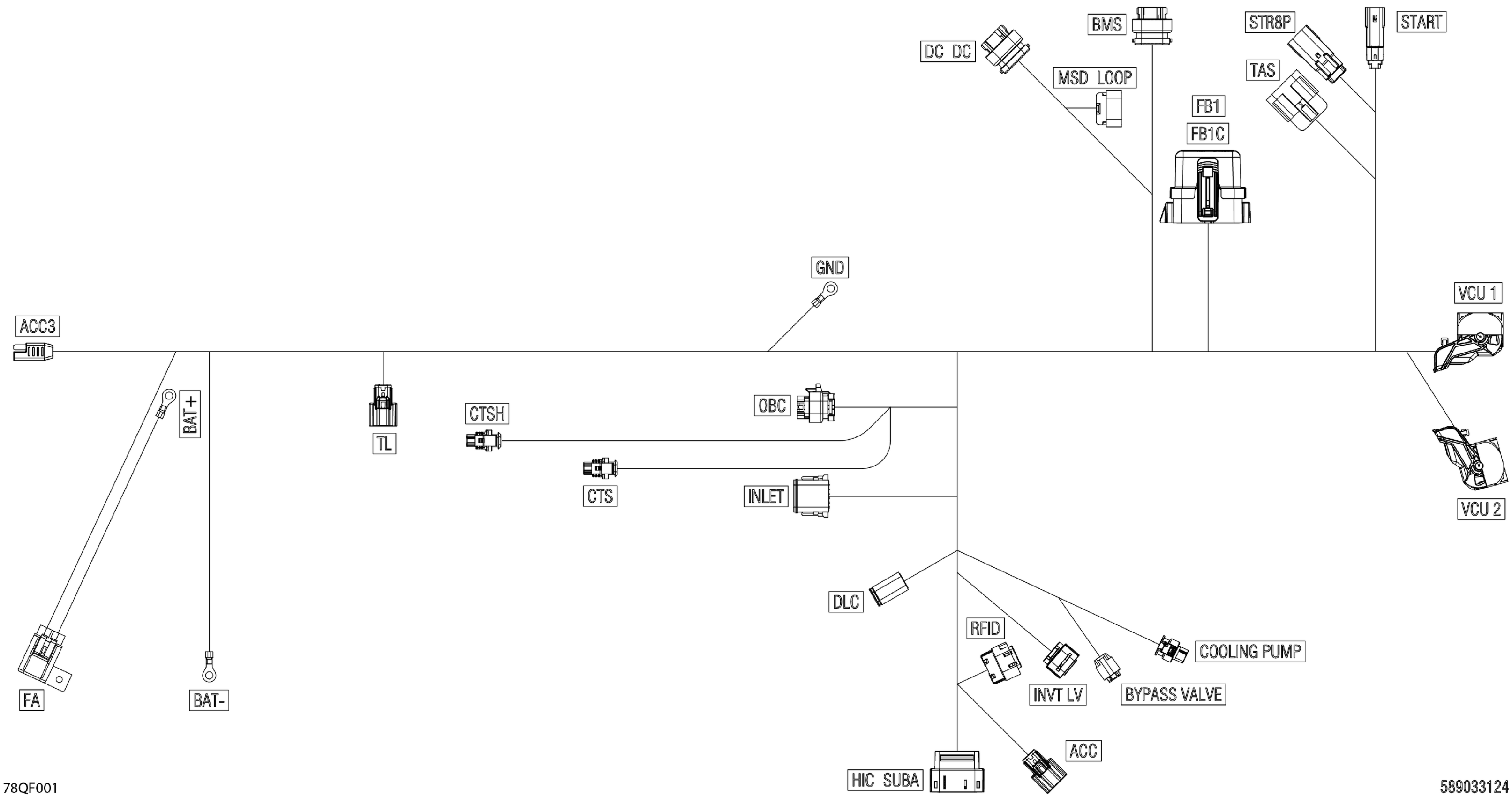

Ski-Doo EXPEDITION - SPORT - ESTB - Bright White - 15X137X1.6C Track, 2026 Electric - Main Harness - 515179829 Diagram

#

Description
Price

3000

Chassis Wiring Harness

515179829

$466.39

ACC

Housing

515178954

$34.30

ACC

Female Terminal

515178018

$0.90

ACC3

Accessories Wiring Harness

515178442

$103.70

BAT(-)

Shrink Tubing, 6 mm

515177246

$0.99

BAT(-)

Open Barrel Terminal

278001392

$4.00

BAT(+)

Shrink Tubing, 6 mm

515177246

$0.99

BAT(+)

Open Barrel Terminal

278001392

$4.00

BMS

Connector

710008506

$22.36

BYPASS VALVE

Housing

710003729

$20.12

BYPASS VALVE

Wire Seal

710001118

$1.19

BYPASS VALVE

Female Terminal

710010230

$8.10

COOLING PUMP

Connector Tyco Female 3 Cavities

710008885

$16.39

COOLING PUMP

Wire Seal

710001118

$1.19

COOLING PUMP

Tyco Female Terminal

278004059

$4.28

CTS

Male Housing, 2 Circuits

278001005

$17.88

CTS

Seal

415128501

$1.73

CTS

Female Terminal

278000998

$4.00

CTSH

Male Housing, 2 Circuits

278001005

$17.88

CTSH

Seal

415128501

$1.73

CTSH

Female Terminal

278000998

$4.00

DC DC

Connector Amp/Tyco 14 Pos

710005825

$22.36

DC DC

Terminal

710008507

$22.36

DLC

Female Housing 6 Circuits

710002706

$18.63

DLC

Lock

710002705

$4.15

DLC

Female Terminal

710005438

$3.88

DLC

Female Terminal

710005439

$4.15

DLC

Terminal

278003855

$12.22

F1

Little Fuse, 5 Amperes

710000742

$8.31

F10

Little Fuse, 15 Ampere

710000745

$7.78

F2

Little Fuse, 15 Ampere

710000745

$7.78

F3

Little Fuse, 10 Amperes

710000744

$8.31

F4

Little Fuse, 10 Amperes

710000744

$8.31

F7

Little Fuse, 10 Amperes

710000744

$8.31

F8

Little Fuse, 20 Amperes

710000746

$7.78

FA

Fuse Holder Cap

278001326

$5.85

FA

Cushion

278000805

$3.12

FA

Fuse, 20 Amperes

409003900

$3.12

FA

Fuse Holder

278001325

$8.31

FA

Female Terminal

710000357

$5.85

FB1

Fuse Base Ass'y

278003448

$30.57

FB1

Seal Plug

278002880

$6.24

FB1

Wire Seal

278000218

$4.00

FB1

Wire Seal

278001065

$5.85

FB1

Female Terminal

710000890

$4.28

FB1

Female Terminal

710000918

$5.85

FB1

Female Terminal

278002578

$0.99

FB1C

Fuse Box Cover

515179503

$4.24

FB1C

Little Fuse, 10 Amperes

710000744

$8.31

FB1C

Little Fuse, 15 Ampere

710000745

$7.78

FB1C

Little Fuse, 20 Amperes

710000746

$7.78

GND

Shrink Tubing, 6 mm

515177246

$0.99

GND

Open Barrel Terminal

278001392

$4.00

HIC SUBA

Female Molex Connector 20 Cavities

515179227

$14.78

HIC SUBA

Sealing Cap

278002860

$1.63

HIC SUBA

Female Terminal

515178018

$0.90

HIC SUBA

Female Terminal

515178014

$2.21

INLET

Amphenol Female Connector 12 Cavities

278004440

$44.00

INLET

Plug

710005437

$2.99

INLET

Female Terminal

710005439

$4.15

INVT LV

Connector

515179576

$22.36

INVT LV

Connector Plug

710009684

$5.85

INVT LV

Female Terminal

710009683

$14.52

MSD LOOP

Connector

710009918

$13.39

MSD LOOP

Wire Seal

710001118

$1.19

MSD LOOP

Terminal Tyco Female

710008740

$8.85

OBC

Connector

710008500

$34.30

RFID

Female Delphi Connector 5 Cavities

710007151

$15.64

RFID

Seal Wire

710001153

$2.06

RFID

Female Terminal

710001164

$6.79

RY1

Relay

715900824

$18.63

RY2

Relay

715900824

$18.63

RY3

Relay

715900824

$18.63

START

Housing

515178023

$12.60

START

Male Terminal

515178013

$2.93

STR8P

Molex Male Connector 8 Cavities

515178907

$10.61

STR8P

Sealing Cap

278002860

$1.63

STR8P

Male Terminal

515178013

$2.93

TAS

Housing

710001231

$11.69

TAS

Seal

710001233

$2.93

TAS

Terminal

710001224

$2.93

TL

Housing

515178954

$34.30

TL

Female Terminal

515178018

$0.90

VCU 1

Cover

515178601

$16.39

VCU 1

Housing 56 Circuits

515178595

$27.58

VCU 1

Plate

515178604

$4.16

VCU 1

Plug

515178599

$2.99

VCU 1

Plug

515178600

$2.99

VCU 1

Plate

515178603

$4.16

VCU 1

Terminal

515178598

$3.69

VCU 1

Terminal

515178596

$3.79

VCU2

Cover

515178602

$4.66

VCU2

Housing 56 Circuits

515178617

$23.85

VCU2

Plate

515178604

$4.16

VCU2

Plug

515178599

$2.99

VCU2

Plug

515178600

$2.99

VCU2

Plate

515178603

$4.16

VCU2

Terminal

515178596

$3.79
