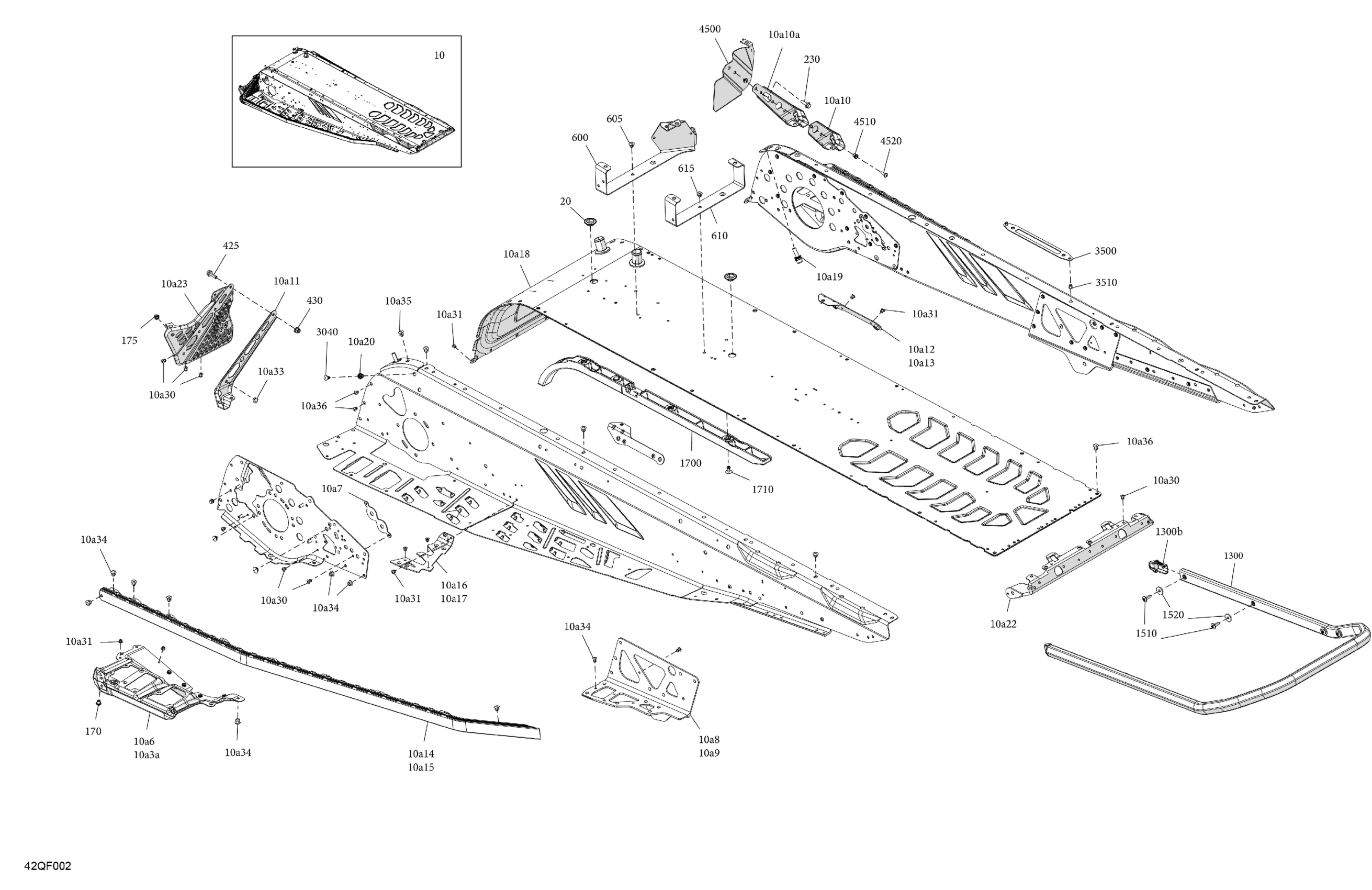

Ski-Doo EXPEDITION - SPORT - ESTB - Bright White - 15X137X1.6C Track, 2026 Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 137 | Includes 10 to 10a36

415131077

Unavailable

10a3a

Deep Black, RH Footrest Reinforcement

518330738

$79.82

10a6

Deep Black, LH Footrest Reinforcement

518331523

$79.82

10a7

Front Suspension Arm Reinforcement

518327233

$15.64

10a8

RH Rear Suspension Support This part replaces 518330095.

518334405

$93.25

10a9

LH Rear Suspension Support This part replaces 518330094.

518334404

$93.25

10a10

RH Stirrup Reinforcement | Includes 10a10 to 10a10a

518335978

$17.88

10a10a

Stirrup Reinforcement

518334507

$17.88

10a11

Deep Black, LH Chassis Reinforcement

518332924

$17.88

10a12

LH Member Fixation Plate

518330299

$15.64

10a13

RH Under Chassis Reinforcement

518331745

$16.39

10a14

RH Roller

518328451

$175.34

10a15

LH Roller

518328452

$175.34

10a16

LH Footrest Reinforcement

518332296

$17.88

10a17

RH Footrest Reinforcement

518332297

$17.88

10a18

Radiator Tunnel 137

518336336

$665.64

10a19

Protruding Stud M8 x 22

250300652

$4.15

10a20

Clinch Nut M6 Hexsert

605636003

$4.00

10a22

Rear Cap

518328990

$20.12

10a23

LH Footrest

518333858

$37.28

10a30

Avex Rivet

390909100

$0.28

10a31

Avex Rivet

390909200

$0.28

10a33

Rivet Ornit 6,5 X 10.5

293150264

$1.88

10a34

Rivet Ornit 6,5 X 12.5

293150265

$1.88

10a35

Ornit Rivet 6,5 X 14.5

293150266

$1.88

10a36

Rivet Ornit 6,5 X 16.5

293150267

$1.88

20

Black, Plug

293730052

$6.18

170

Insert M5 - 0.8

293450267

$4.09

175

Insert M5 - 0.8

293450267

$4.09

230

Hex. Flange Screw M6 X 20

207562056

$2.00

425

Hex. Flange Screw M6 X 20

207562056

$2.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

600

Front Battery Charger Support

518334262

$63.40

605

Rivet Ornit 6,5 X 10.5

293150264

$1.88

610

Rear Battery Charger Support

518334779

$26.84

615

Rivet Ornit 6,5 X 10.5

293150264

$1.88

1300

Rear Bumper | Includes 1300 to 1300b

518328746

$119.37

1300b

Cap

520001612

$8.36

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

1520

Flat Washer

224061201

$1.27

1700

Front Protector

518329982

$17.13

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

3040

Dart

293730079

$1.87

3500

Seat Anchorage

518334925

$42.51

3510

Rivet Avibulb 3/16

293150203

$0.28

4500

Bright White, RH Footrest

518335989

$74.60

4510

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

4520

Torx Head Screw M6 X 16

250000717

$2.00
