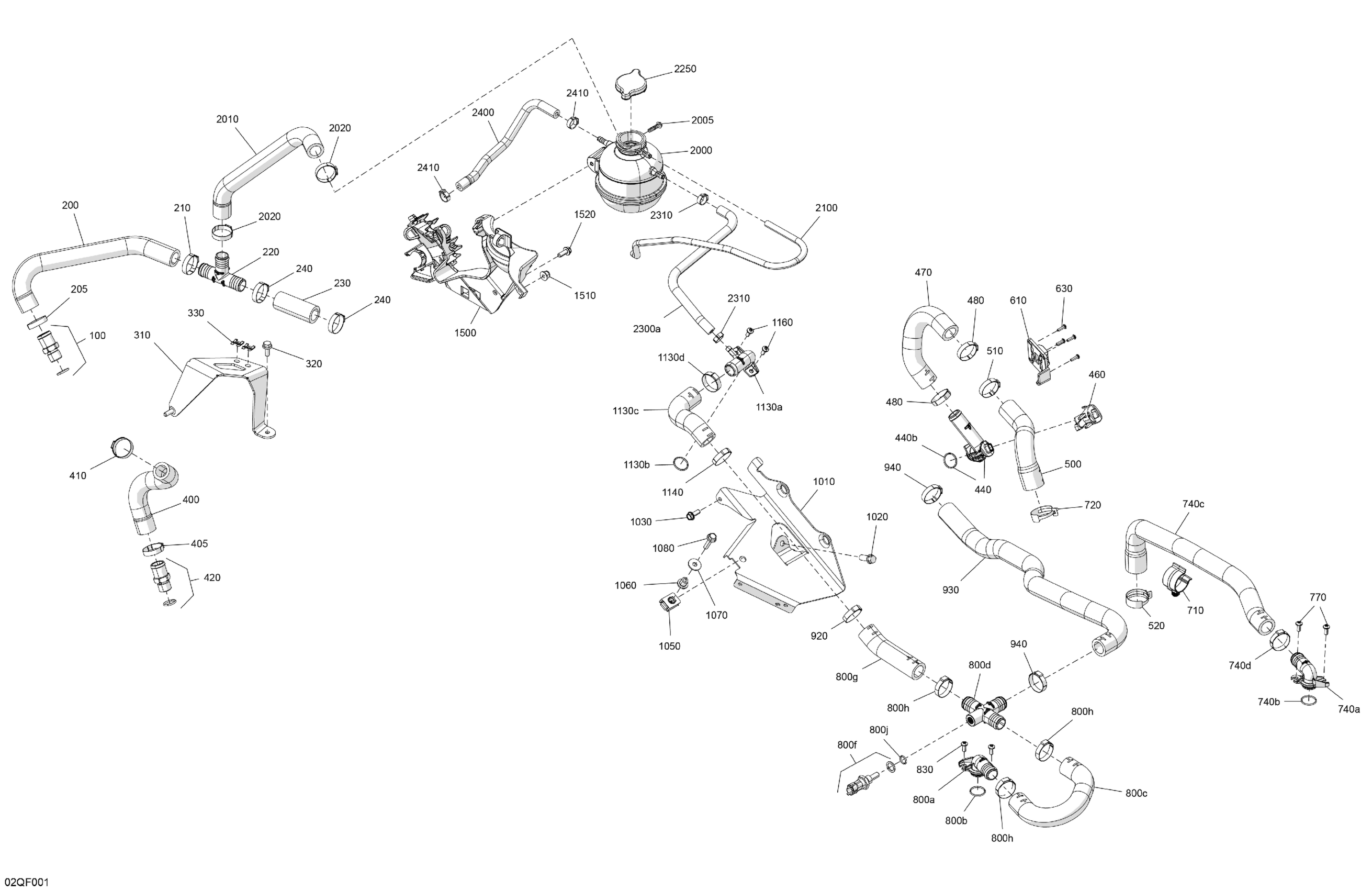

Ski-Doo EXPEDITION - SPORT - ESTB - Bright White - 15X137X1.6C Track, 2026 Engine - Cooling Diagram

#

Description
Price

100

Coolant Manifold Ass'y | Includes 100 to 100b

509001406

$9.18

200

Hose

509001352

$17.13

205

Oetiker Gear Clamp

293650165

$4.96

210

Crimp Clamp

293650099

$4.07

220

T Fitting

509001334

$14.90

230

Hose

509001353

$17.13

240

Crimp Clamp

293650099

$4.07

310

Pump Support

509001419

$48.48

320

Hex. Flange Screw M6 X 16

207661644

$0.70

330

External Retaining Ring

509001420

$3.63

400

Hose

509001358

$17.13

405

Oetiker Gear Clamp

293650165

$4.96

410

Crimp Clamp

293650099

$4.07

420

Coolant Manifold Ass'y | Includes 100 to 100b

509001406

$9.18

440

Coolant Manifold Ass'y | Includes 440 to 440b

509001435

$9.18

440b

Seal

293300248

$4.67

460

Lock

509001428

$9.18

470

Hose

509001434

$14.90

480

Oetiker Gear Clamp

293650165

$4.96

500

Hose

509001362

$14.90

510

Oetiker Gear Clamp

293650165

$4.96

520

Norma Spring Clamp

293650166

$4.15

610

Valve Support

509001363

$12.75

630

Torx Screw K35 X 12

250001269

$3.73

710

Retainer

275500526

$4.28

720

Norma Spring Clamp

293650166

$4.15

740a

Coolant Manifold

509001390

$9.18

740b

O-Ring Seal

293300300

$4.67

740c

Hose

509001364

$23.85

740d

Oetiker Gear Clamp

293650165

$4.96

770

Screw Torx M5 X 12

250001241

$6.28

800a

Coolant Manifold

509001390

$9.18

800b

O-Ring Seal

293300300

$4.67

800c

Hose

509001374

$17.13

800d

Fitting

509001400

$12.60

800f

Temperature Sensor

278002895

$36.54

800g

Hose

509001375

$17.13

800h

Oetiker Gear Clamp

293650165

$4.96

800j

Seal

293300281

$4.67

830

Screw Torx M5 X 12

250001241

$6.28

920

Oetiker Gear Clamp

293650165

$4.96

930

Hose

509001376

$17.13

940

Oetiker Gear Clamp

293650165

$4.96

1010

Support

509001463

$67.13

1020

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.15

1030

Hex. Flange Screw M6 X 16

250001062

$1.39

1050

Panel Nut M6 X 1.0

250100208

$1.22

1060

Bushing

293900151

$6.12

1070

Flat Washer

250200082

$0.40

1080

Hex. Flange Screw M6 X 25

207562544

$1.60

1130a

Coolant Manifold

509001381

$9.18

1130b

Seal

293300248

$4.67

1130c

Hose

509001378

$17.13

1130d

Oetiker Gear Clamp

293650165

$4.96

1140

Oetiker Gear Clamp

293650165

$4.96

1160

Screw Torx M5 X 12

250001241

$6.28

1500

Coolant Tank Support

509001423

$18.63

1510

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1520

Hex. Flange Screw M6 X 16

250001062

$1.39

2000

Cooling Tank

509001033

$83.55

2005

Hex. Flange Screw K50 X 20

241152060

$1.81

2010

Hose

509001365

$20.12

2020

Crimp Clamp

293650099

$4.07

2100

Hose 6 Mm 15000Mm Long

219704360

$120.12

2250

Pressure Cap

509000187

$26.84

2300a

Vent Hose

509001366

$23.10

2310

Crimp Clamp, 15.3-706R

293650047

$3.03

2400

Vent Hose

509001367

$23.10

2410

Crimp Clamp, 15.3-706R

293650047

$3.03
