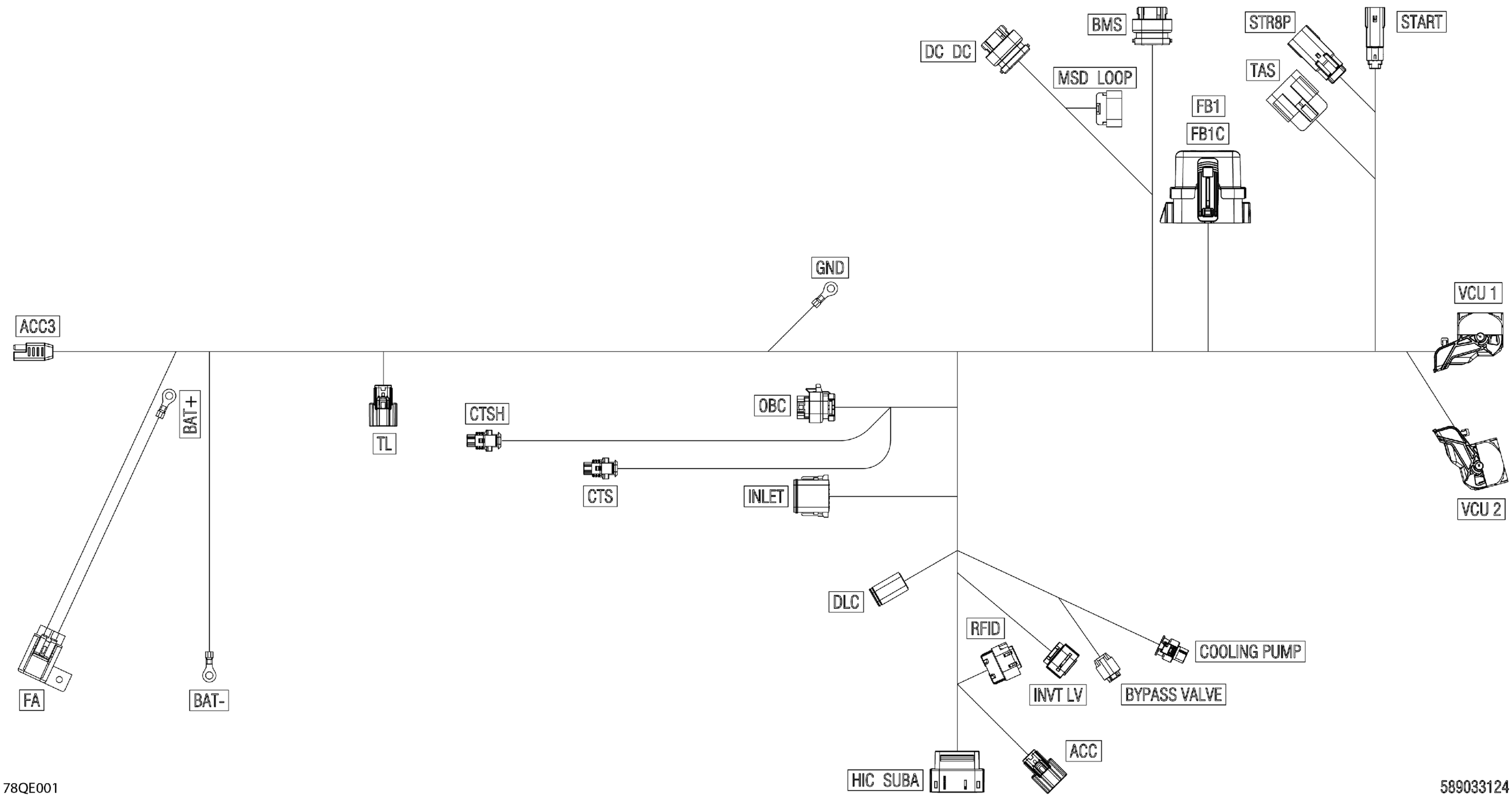

Ski-Doo EXPEDITION - SPORT - ESSB - Bright White - 137X15X1.6C Track - 2025 Electric - Main Harness - 515179829 Diagram

#

Description
Price

3000

Chassis Wiring Harness

515179829

$480.74

ACC

Housing

515178954

$35.35

ACC

Female Terminal

515178018

$0.78

ACC3

Accessories Wiring Harness

515178442

$106.89

BAT(-)

Shrink Tubing, 6 mm

515177246

$1.02

BAT(-)

Open Barrel Terminal

278001392

$4.12

BAT(+)

Shrink Tubing, 6 mm

515177246

$1.02

BAT(+)

Open Barrel Terminal

278001392

$4.12

BMS

Connector

710008506

$23.05

BYPASS VALVE

Housing

710003729

$20.74

BYPASS VALVE

Wire Seal

710001118

$1.19

BYPASS VALVE

Female Terminal

710010230

$8.35

COOLING PUMP

Connector Tyco Female 3 Cavities

710008885

$16.89

COOLING PUMP

Wire Seal

710001118

$1.19

COOLING PUMP

Tyco Female Terminal

278004059

$4.42

CTS

Male Housing, 2 Circuits

278001005

$15.57

CTS

Seal

415128501

$1.51

CTS

Female Terminal

278000998

$3.48

CTSH

Male Housing, 2 Circuits

278001005

$15.57

CTSH

Seal

415128501

$1.51

CTSH

Female Terminal

278000998

$3.48

DC DC

Connector Amp/Tyco 14 Pos

710005825

$23.05

DC DC

Terminal

710008507

$23.05

DLC

Female Housing 6 Circuits

710002706

$16.22

DLC

Lock

710002705

$3.61

DLC

Female Terminal

710005438

$4.00

DLC

Female Terminal

710005439

$4.28

DLC

Terminal

278003855

$12.60

F1

Little Fuse, 5 Amperes

710000742

$7.24

F10

Little Fuse, 15 Ampere

710000745

$6.77

F2

Little Fuse, 15 Ampere

710000745

$6.77

F3

Little Fuse, 10 Amperes

710000744

$7.24

F4

Little Fuse, 10 Amperes

710000744

$7.24

F7

Little Fuse, 10 Amperes

710000744

$7.24

F8

Little Fuse, 20 Amperes

710000746

$6.77

FA

Fuse Holder Cap

278001326

$6.03

FA

Cushion

278000805

$3.22

FA

Fuse, 20 Amperes

409003900

$3.22

FA

Fuse Holder

278001325

$8.57

FA

Female Terminal

710000357

$6.03

FB1

Fuse Base Ass'y

278003448

$26.62

FB1

Seal Plug

278002880

$5.43

FB1

Wire Seal

278000218

$3.48

FB1

Wire Seal

278001065

$6.03

FB1

Female Terminal

710000890

$3.73

FB1

Female Terminal

710000918

$5.10

FB1

Female Terminal

278002578

$0.86

FB1C

Fuse Box Cover

515179503

$4.37

FB1C

Little Fuse, 10 Amperes

710000744

$7.24

FB1C

Little Fuse, 15 Ampere

710000745

$6.77

FB1C

Little Fuse, 20 Amperes

710000746

$6.77

GND

Shrink Tubing, 6 mm

515177246

$1.02

GND

Open Barrel Terminal

278001392

$4.12

HIC SUBA

Female Molex Connector 20 Cavities

515179227

$15.23

HIC SUBA

Sealing Cap

278002860

$1.42

HIC SUBA

Female Terminal

515178018

$0.78

HIC SUBA

Female Terminal

515178014

$1.92

INLET

Amphenol Female Connector 12 Cavities

278004440

$45.35

INLET

Plug

710005437

$3.08

INLET

Female Terminal

710005439

$4.28

INVT LV

Connector

515179576

$23.05

INVT LV

Connector Plug

710009684

$6.03

INVT LV

Female Terminal

710009683

$14.97

MSD LOOP

Connector

710009918

$13.80

MSD LOOP

Wire Seal

710001118

$1.19

MSD LOOP

Terminal Tyco Female

710008740

$9.12

OBC

Connector

710008500

$35.35

RFID

Female Delphi Connector 5 Cavities

710007151

$13.62

RFID

Seal Wire

710001153

$1.79

RFID

Female Terminal

710001164

$5.92

RY1

Relay

715900824

$16.22

RY2

Relay

715900824

$16.22

RY3

Relay

715900824

$16.22

START

Housing

515178023

$12.98

START

Male Terminal

515178013

$2.55

STR8P

Molex Male Connector 8 Cavities

515178907

$10.94

STR8P

Sealing Cap

278002860

$1.42

STR8P

Male Terminal

515178013

$2.55

TAS

Housing

710001231

$12.05

TAS

Seal

710001233

$2.55

TAS

Terminal

710001224

$3.02

TL

Housing

515178954

$35.35

TL

Female Terminal

515178018

$0.78

VCU 1

Cover

515178601

$14.27

VCU 1

Housing 56 Circuits

515178595

$24.02

VCU 1

Plate

515178604

$3.63

VCU 1

Plug

515178599

$2.60

VCU 1

Plug

515178600

$2.60

VCU 1

Plate

515178603

$3.63

VCU 1

Terminal

515178598

$3.21

VCU 1

Terminal

515178596

$3.30

VCU2

Cover

515178602

$4.80

VCU2

Housing 56 Circuits

515178617

$24.58

VCU2

Plate

515178604

$3.63

VCU2

Plug

515178599

$2.60

VCU2

Plug

515178600

$2.60

VCU2

Plate

515178603

$3.63

VCU2

Terminal

515178596

$3.30
