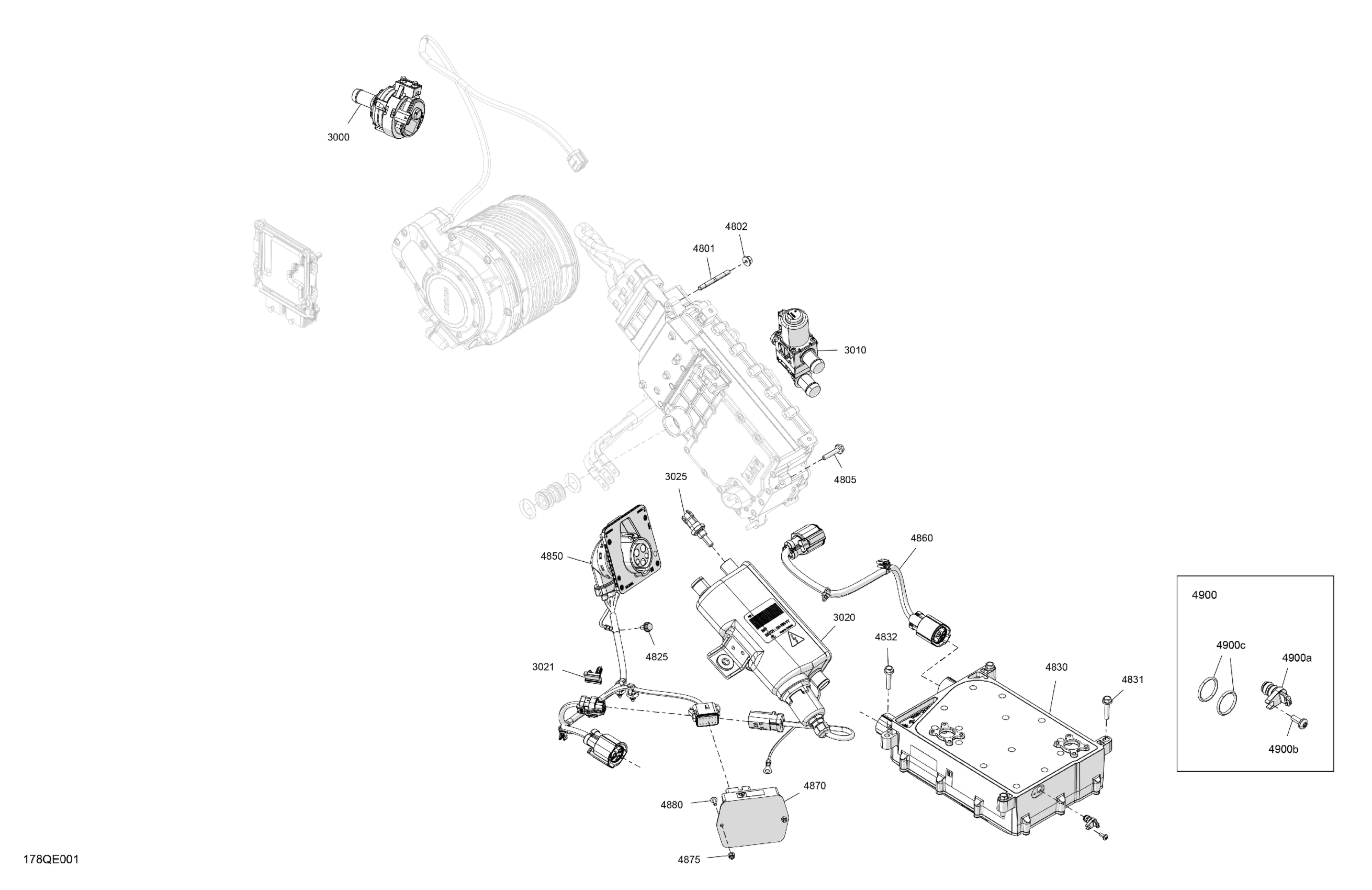

Ski-Doo North America - EXPEDITION - SPORT - ESSB - Bright White - 137X15X1.6C Track - 2025 08- Electric - High Voltage Diagram

Description

Price

3000

Cooling Pump

709201048

$164.99

3010

Cooling Solenoid Valve

709201162

$211.99

3020

Block Heater

712000168

$264.99

3021

Fastener

293730118

$8.19

3025

Temperature Sensor

278002895

$39.99

4801

Threaded Rod

509001410

$11.11

4802

Hex. Elastic Flange Nut M6

233161464

$1.01

4805

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

4825

Hex. Flange Screw M6 X 12, Scotch Grip

207561234

$2.11

4830

6,6 Kilowatt Battery Charger

712000189

$2,687.49

4831

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

4832

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

4850

High Voltage Charging Port Cable

710009107

Unavailable

4860

High Voltage Charger Cable

710007699

Unavailable

4870

Heater Module

712000162

$137.99

4875

Elastic Stop Nut M4

232541484

$0.74

4880

Torx Head Screw M4 X 12

250000915

$2.96

4900

Fastener Kit for Battery Charger Ski-Doo | Includes 4900 to 4900f

861805582

$47.49

4900a

Plug Ass'y

293710201

$29.49

4900b

Torx Head Screw M4 X 10 | Includes 810 to 810b

250001298

$18.49

4900c

O-Ring

293300299

Unavailable

4900d

Dielectric Grease | Not Shown

293550051

$7.29

4900f

Ground Cable | Not Shown

515179633

Unavailable
