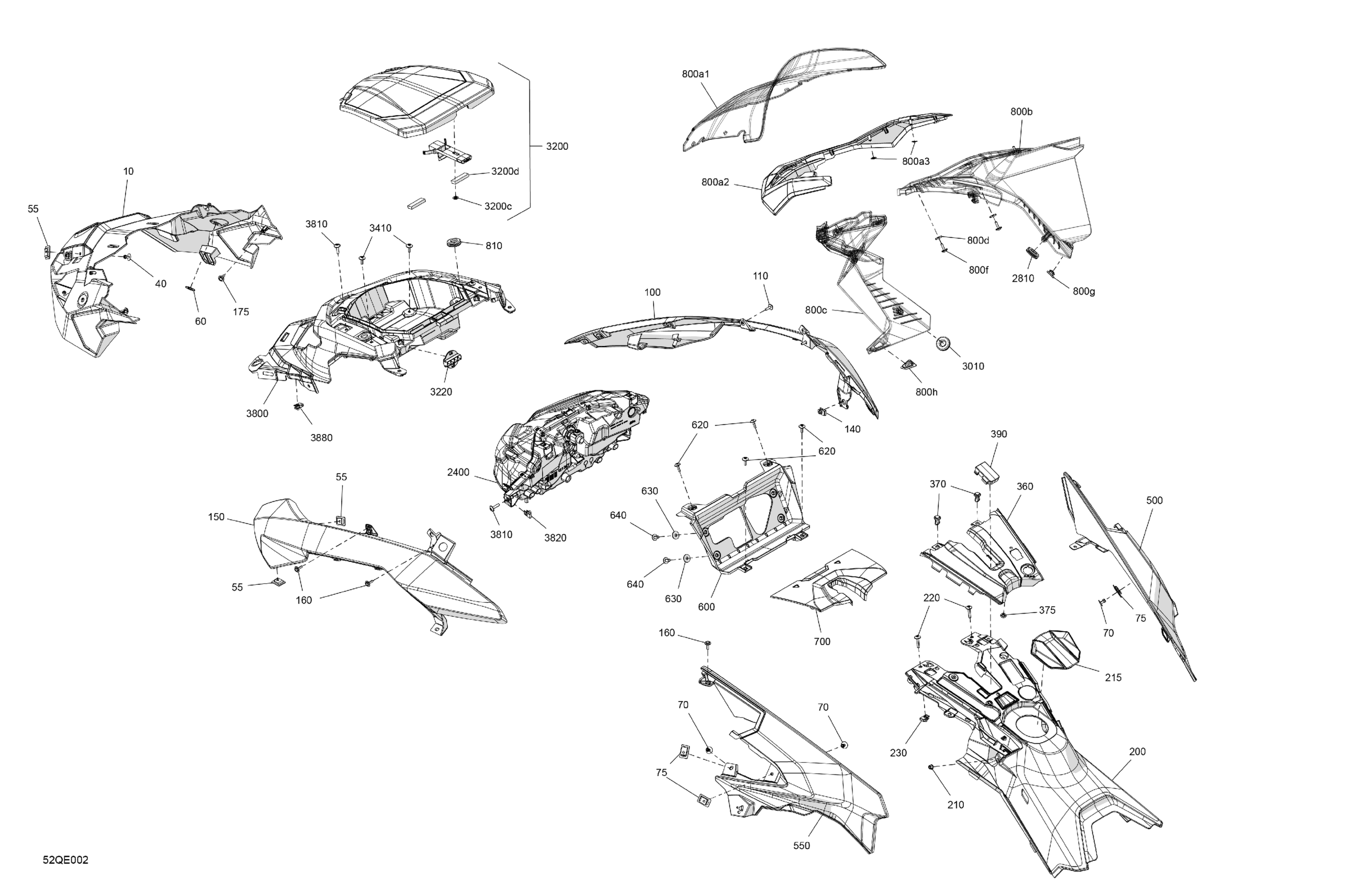

Ski-Doo North America - EXPEDITION - SPORT - ESSB - Bright White - 137X15X1.6C Track - 2025 07- Body - Hood Diagram

Description

Price

Central Hood

517308932

$214.99

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

Rivet Plate

517305109

$4.99

Push Nut

508000853

$2.09

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

Rivet Plate

517305109

$4.99

100

RH Front Hood

517308991

$214.99

110

Screw M4 X 16

250000725

$3.49

140

Panel Nut M5 X 0.8

250000958

$4.23

150

LH Front Hood

517308992

$214.99

160

Screw M4 X 16

250000725

$3.49

175

Screw M4 X 16

250000725

$3.49

200

Rear Console

517308760

$179.99

210

Flange Elastic Nut M5

233251434

$2.00

215

Plug

517308696

$28.99

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

360

Front Console

517307912

$31.99

370

Tuflok Plastic Rivet

293150230

$1.47

375

Push Nut

732610072

$2.19

390

Connecting Plate

517308759

$5.79

500

RH Hood

517308227

$209.99

550

LH Hood

517308228

$209.99

600

Gauge Support

517307751

$38.99

620

Screw M4 X 16

250000889

$3.09

630

Stainless Steel Flat Washer

234062670

$2.11

640

Torx Truss Screw M6 X 12

250000767

$2.00

700

Access Cover

517308111

$38.99

800a1

Windshield 440 MM

517307976

$159.49

800a2

Windshield Support

517307974

$39.99

800a3

Push Nut

732610072

$2.19

800b

RH Air Deflector

517307971

$32.99

800c

LH Air Deflector

517307972

$32.99

800d

Rubber Washer 4 MM

517306524

$2.32

800f

Screw M4 X 16

250000889

$3.09

800g

RH Stopper

517308989

$8.09

800h

LH Stopper

517308990

$8.09

810

Grommet

517303756

$4.09

2400

Headlight Ass'y

517309060

$559.99

2810

Grommet

517303756

$4.09

3010

Grommet

517303756

$4.09

3200

Box Cover Ass'y | Includes 3200 to 3200d

517307754

$30.99

3200c

Push Nut

732610072

$2.19

3200d

Joint Seal

517308246

$2.39

3220

Box Cap

517308260

$13.49

3410

Screw M4 X 16

250000889

$3.09

3800

Upper Fairing

517308231

$64.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3880

Panel Nut M5 X 0.8

250000958

$4.23
